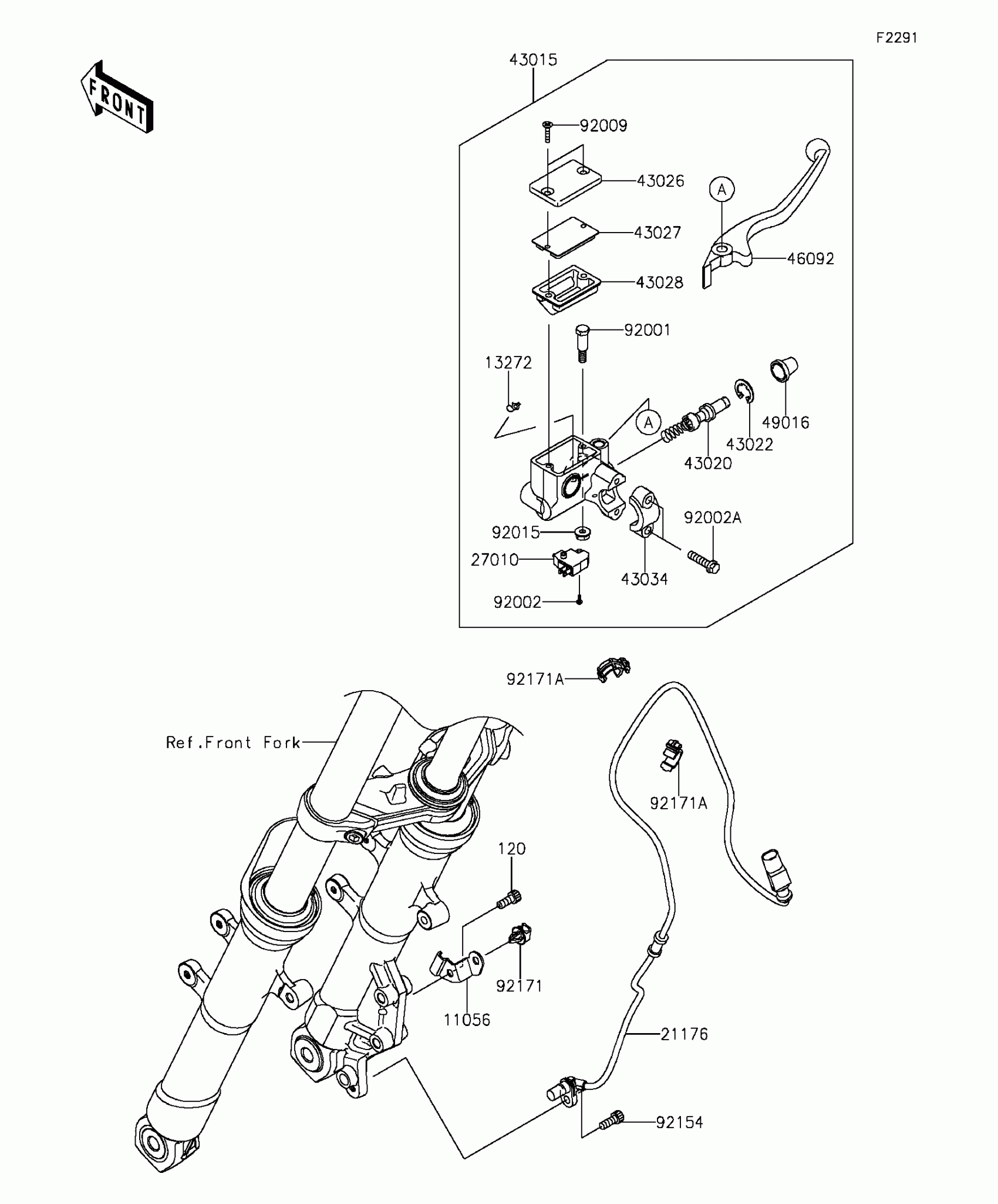

Kawasaki Z250SL Front Master Cylinder Diagram

Description

Price

11056

BRACKET

11056-4005

$3.63

13272

PLATE

13272-0573

$7.60

21176

SENSOR,ABS,FR

21176-0760

$121.26

27010

SWITCH,BRAKE

27010-1170

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0594

$229.37

43020

PISTON-COMP-BRAKE

43020-1095

$51.24

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1082

$20.87

43027

PLATE-DIAPHRAGM

43027-1057

$4.13

43028

DIAPHRAGM

43028-1061

$16.18

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

46092

LEVER-GRIP,FRONT BRAKE

46092-0047

$18.17

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$14.23

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92002A

BOLT

92002-1894

$5.52

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92154

BOLT,SOCKET,6X16

92154-1300

$2.00

92171

CLAMP

92171-0640

$3.90

92171A

CLAMP,BRAKE HOSE

92171-1819

$5.54

120

BOLT-SOCKET,6X16

120CA0616

$2.49
