2014 Kawasaki Z250SL Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2014 Kawasaki Z250SL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

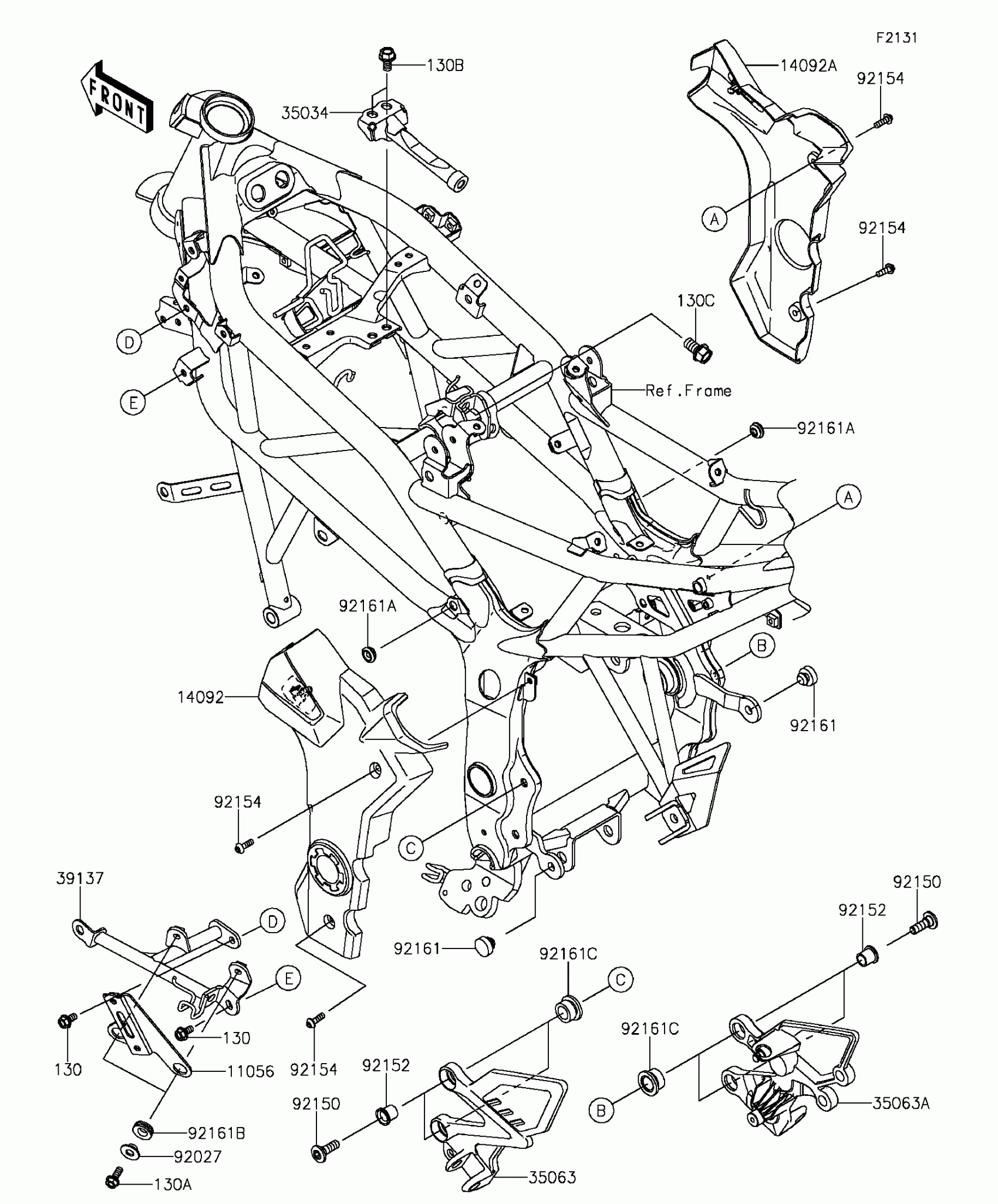

2014 Kawasaki Z250SL Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,REGULATOR

11056-2735

1
Out of stock

14092

COVER,PIVOT,LH

14092-1113

1
Out of stock

14092A

COVER,PIVOT,RH

14092-1114

1
Out of stock

35034

REINFORCE

35034-0591

1
Out of stock

35063

STAY,STEP,LH

35063-0923

1
Out of stock

35063A

STAY,STEP,RH

35063-0924

1
Out of stock

39137

STAY-COMP

39137-0587

1

$49.75

In stock

92027

COLLAR

92027-153

1
Out of stock

92150

BOLT,8X25

92150-1845

1
Out of stock

92152

COLLAR,10.6X13.8X14.5

92152-1771

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92161

DAMPER

92161-0046

1
Out of stock

92161A

DAMPER

92161-0631

1
Out of stock

92161B

DAMPER,10X20X6

92161-1592

1

$7.24

In stock

92161C

DAMPER,14X26X17.5

92161-1651

1

$1.10

In stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130B

BOLT-FLANGED,8X14

130BA0814

1

$1.78

In stock

130C

BOLT-FLANGED,10X18

130BA1018

1

$2.05

In stock
