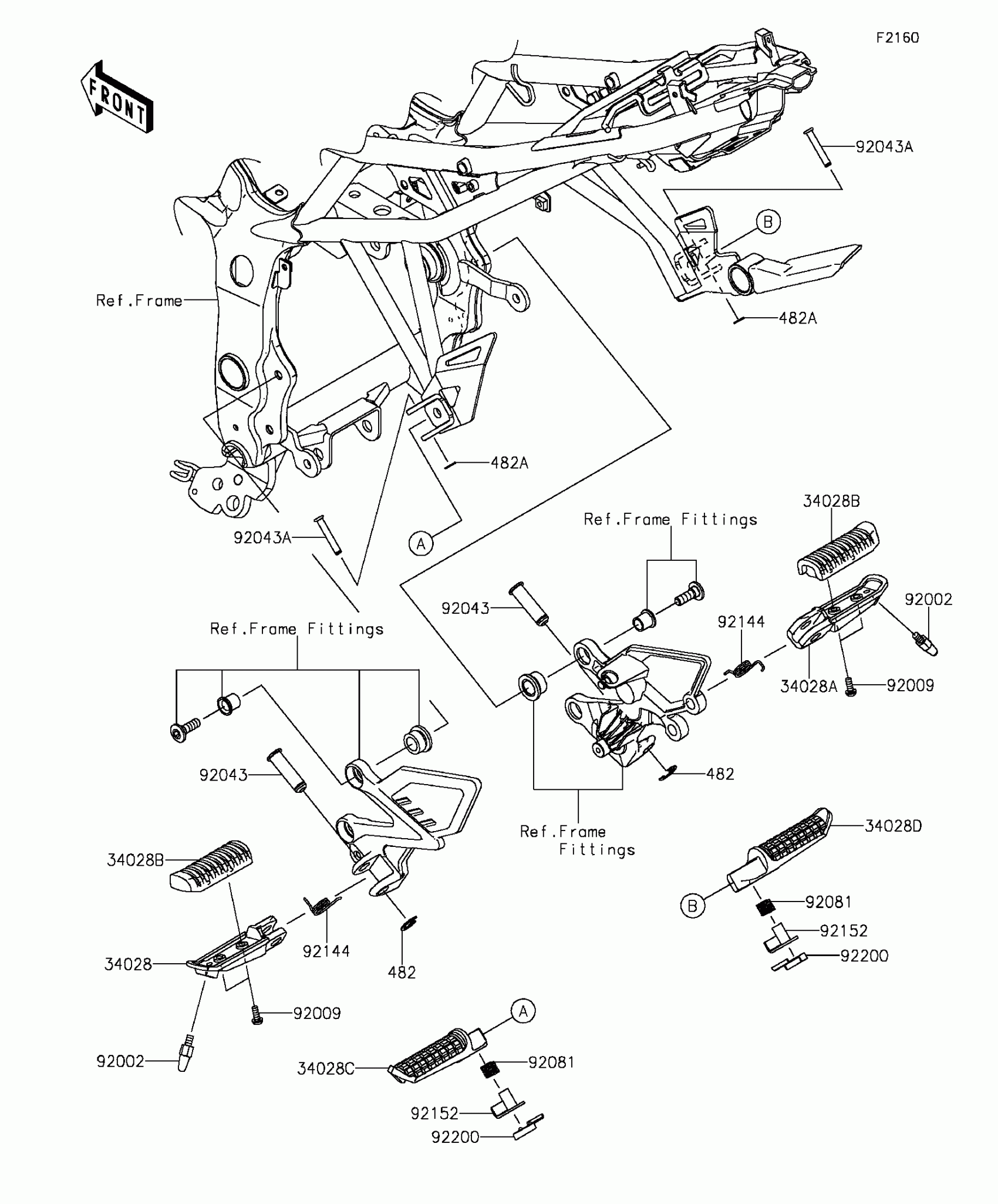

Kawasaki Z250SL Footrests Diagram

Description

Price

34028

STEP,FR,LH

34028-0035

$7.80

34028A

STEP,FR,RH

34028-0036

$8.27

34028B

STEP,FR,RUBBER

34028-0056

$14.07

34028C

STEP,RR,LH

34028-0334

$35.01

34028D

STEP,RR,RH

34028-0335

$35.01

92002

BOLT,BANK SENSOR

92002-1742

$8.63

92009

SCREW,5X14

92009-1404

$3.01

92043

PIN,12X37.5

92043-0026

$4.23

92043A

PIN,6X35.5

92043-1294

$9.29

92081

SPRING,STEP,RR

92081-1612

$3.81

92144

SPRING,STEP RETURN

92144-1567

$4.88

92152

COLLAR,STEP

92152-0658

$9.93

92200

WASHER

92200-0783

$1.68

482

CIRCLIP-TYPE-E,10MM

482EA0100

$0.85

482A

CIRCLIP-TYPE-E

482EA5000

$1.04
