Description

Price

39137

STAY-COMP,LWR COWL.,LH

39137-0585

$84.40

39137A

STAY-COMP,LWR COWL.,RH

39137-0586

$84.40

49125

SHROUD,INNER,LH

49125-0580

Unavailable

49125A

SHROUD,INNER,RH

49125-0581

$39.15

49125B

SHROUD,OUTER,LH,EBONY

49125-5432-20A

$297.95

49125C

SHROUD,OUTER,RH,EBONY

49125-5433-20A

$296.65

49125D

SHROUD,OUTER,LH,F.EBONY

49125-5444-45L

$297.95

49125E

SHROUD,OUTER,RH,F.EBONY

49125-5445-45L

$296.65

55028

COWLING,LWR,EBONY

55028-0500-20A

$177.80

55028A

COWLING,LWR,F.EBONY

55028-0500-45L

$178.03

92001

BOLT,W/WASHER,6X12

92001-1516

$5.00

92039

RIVET

92039-0060

$3.39

92039A

RIVET

92039-0062

$3.39

92075

DAMPER

92075-1634

$4.69

92143

COLLAR,L=9.6

92143-1016

$6.22

92154

BOLT,SOCKET,6X20

92154-0918

$6.26

92161

DAMPER

92161-1531

$3.02

130

BOLT-FLANGED,6X16

130BB0616

$2.06

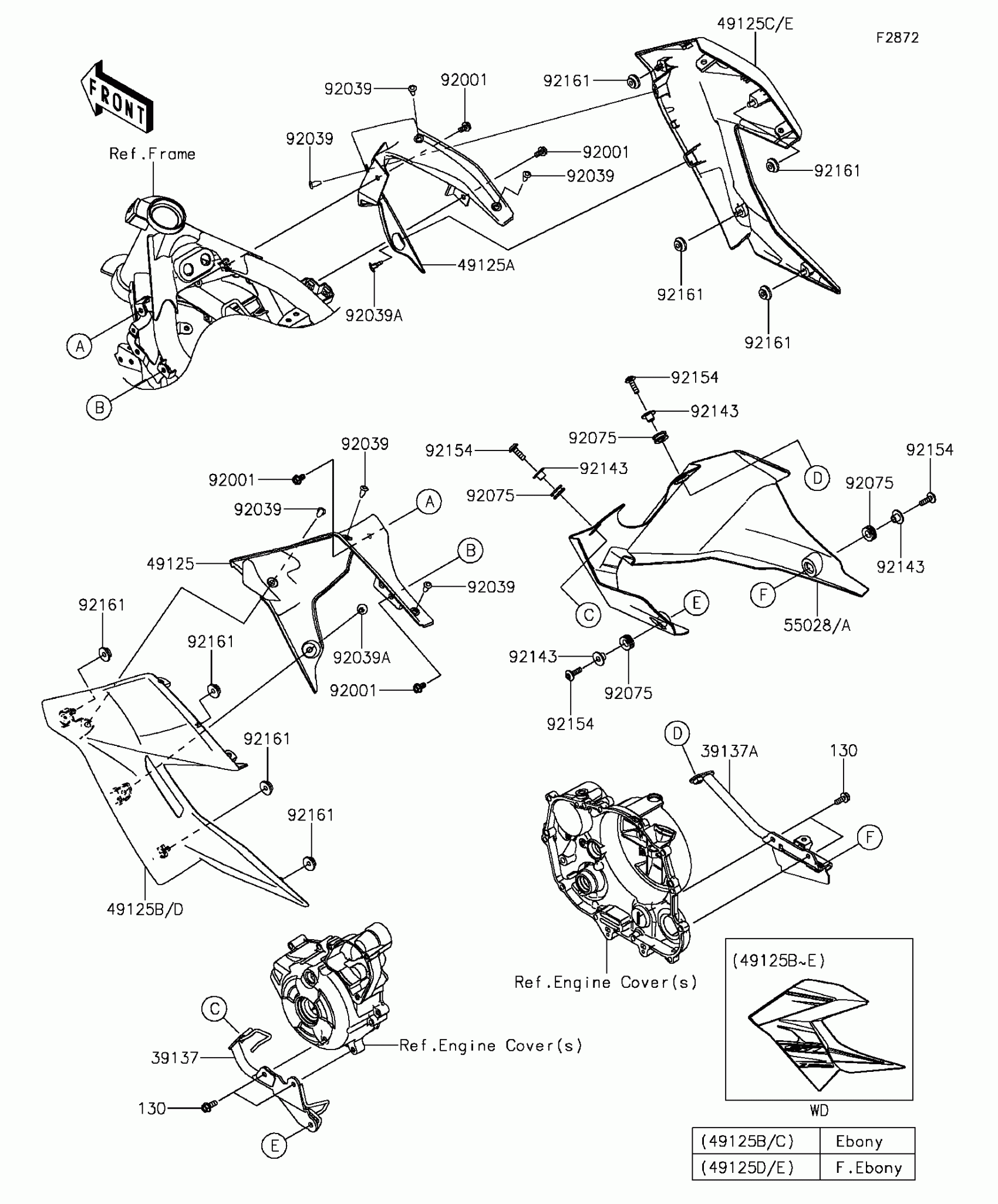

Kawasaki Z250SL Cowling Lowers Diagram

STAY-COMP,LWR COWL.,LH

STAY-COMP,LWR COWL.,RH

SHROUD,INNER,LH

SHROUD,INNER,RH

SHROUD,OUTER,LH,EBONY

SHROUD,OUTER,RH,EBONY

SHROUD,OUTER,LH,F.EBONY

SHROUD,OUTER,RH,F.EBONY

COWLING,LWR,EBONY

COWLING,LWR,F.EBONY

BOLT,W/WASHER,6X12

RIVET

RIVET

DAMPER

COLLAR,L=9.6

BOLT,SOCKET,6X20

DAMPER

BOLT-FLANGED,6X16
