2018 Kawasaki Z250SL ABS Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

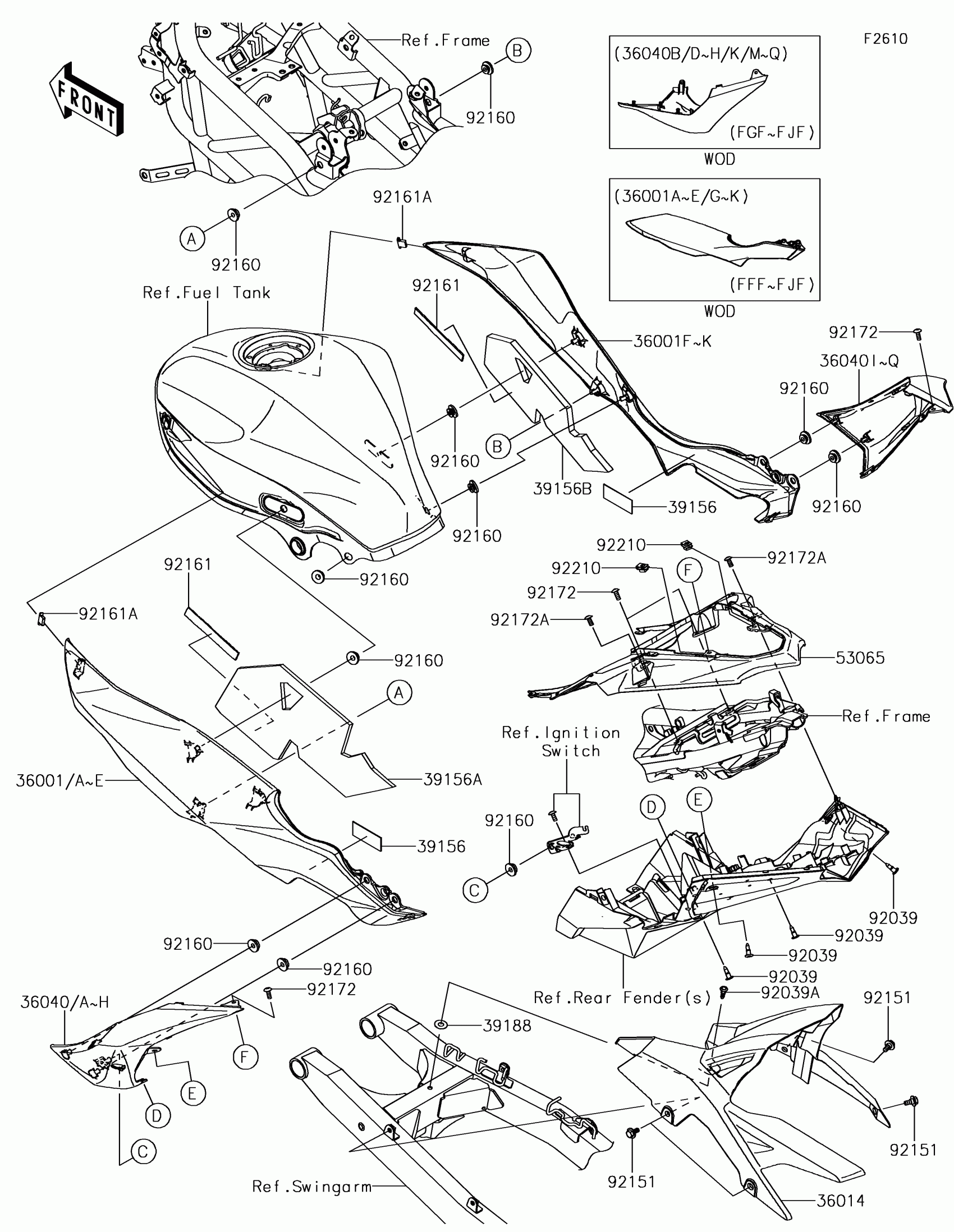

2018 Kawasaki Z250SL ABS Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001B

COVER-SIDE,LH,M.M.F.SILVER

36001-0601-60S

1
Out of stock

36001E

COVER-SIDE,LH,EBONY

36001-0601-H8

1
Out of stock

36001H

COVER-SIDE,RH,M.M.F.SILVER

36001-0602-60S

1
Out of stock

36001K

COVER-SIDE,RH,EBONY

36001-0602-H8

1
Out of stock

36014

CASE-CHAIN

36014-0562

1
Out of stock

36040F

COVER-TAIL,LH,C.P.BLUE

36040-0140-723

1
Out of stock

36040H

COVER-TAIL,LH,EBONY

36040-0140-H8

1
Out of stock

36040O

COVER-TAIL,RH,C.P.BLUE

36040-0141-723

1
Out of stock

36040Q

COVER-TAIL,RH,EBONY

36040-0141-H8

1
Out of stock

39156

PAD,25X60X1

39156-1861

1
Out of stock

39156A

PAD,SIDE COVER,LH

39156-1950

1
Out of stock

39156B

PAD,SIDE COVER,RH

39156-1951

1
Out of stock

39188

TAPE,8X19

39188-0046

1
Out of stock

53065

COVER SEAT

53065-0024

1
Out of stock

92039

RIVET

92039-0707

1
Out of stock

92039A

RIVET

92039-0709

1
Out of stock

92151

BOLT,FLANGED,6X13

92151-1703

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER,15X110X2

92161-1571

1
Out of stock

92161A

DAMPER

92161-1626

1
Out of stock

92172

SCREW

92172-0016

1
Out of stock

92172A

SCREW,5X12

92172-0857

1
Out of stock

92210

NUT,PLATE,5MM

92210-0262

1
Out of stock
