2018 Kawasaki Z250SL ABS Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

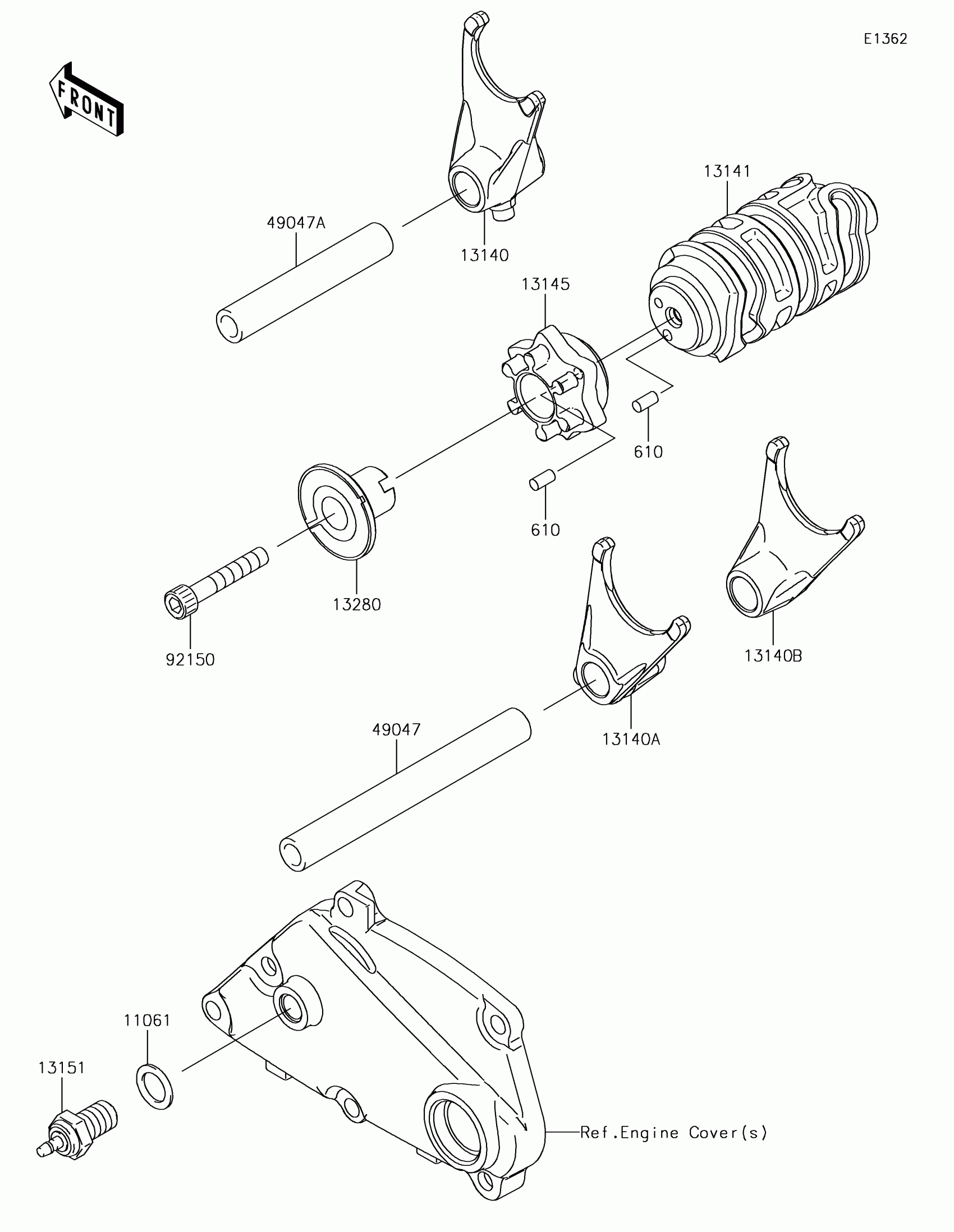

2018 Kawasaki Z250SL ABS Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,10.5X16X1

11061-0373

1
Out of stock

13140

FORK-SHIFT,5TH&6TH

13140-0632

1
Out of stock

13140A

FORK-SHIFT,2ND&4TH

13140-0633

1
Out of stock

13140B

FORK-SHIFT,1ST&3RD

13140-0634

1
Out of stock

13141

DRUM-CHANGE

13141-0578

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0559

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1102

1
Out of stock

13280

HOLDER,CHANGE DRUM

13280-0769

1
Out of stock

49047

ROD-SHIFT,L=106.7

49047-1056

1
Out of stock

49047A

ROD-SHIFT,L=71.7

49047-1057

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock

92150

BOLT,SOCKET,6X35

92150-1484

1
Out of stock
