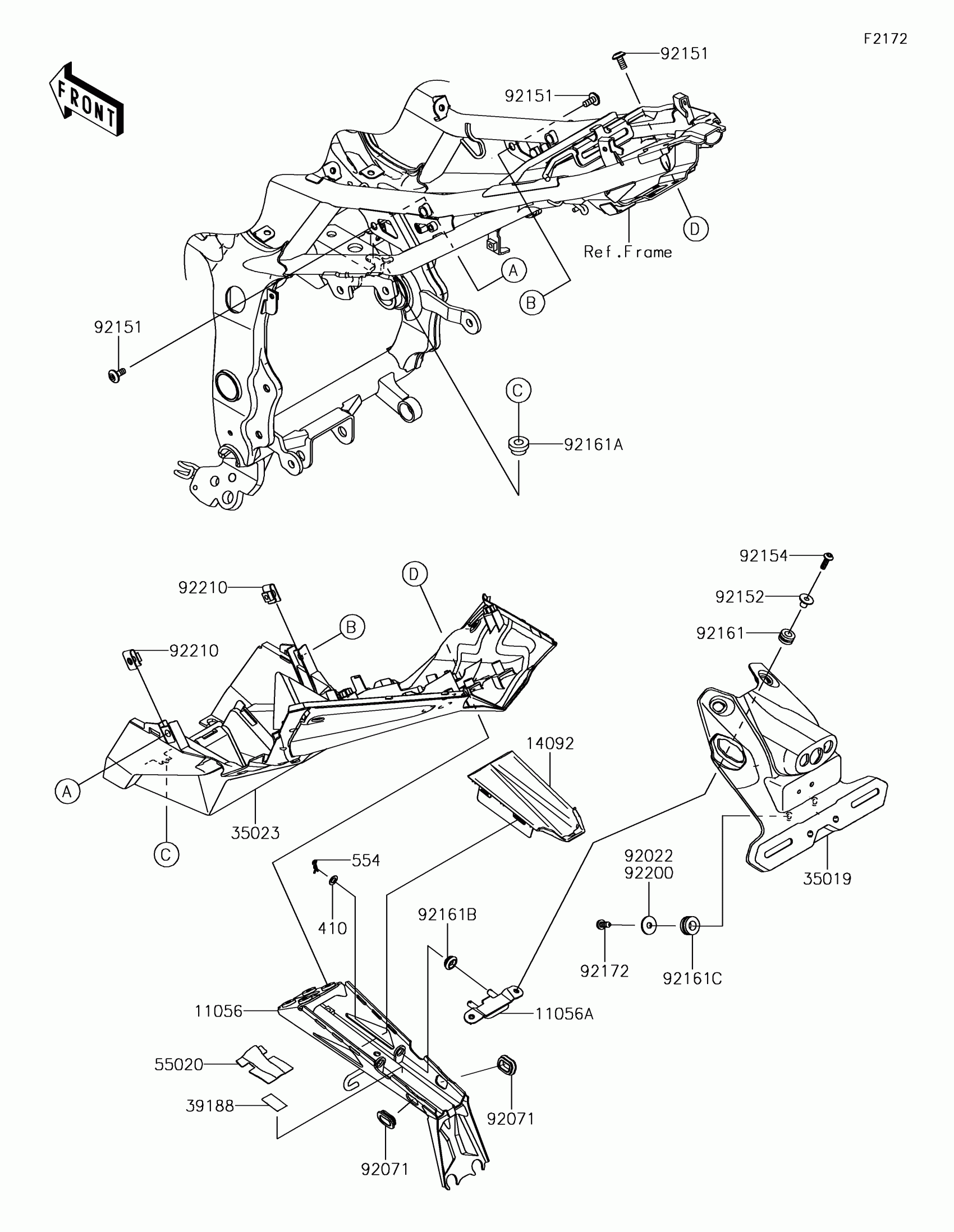

Kawasaki Z250SL ABS Rear Fender(s) Diagram

Description

Price

11056

BRACKET,FLAP,MAIN,F.M.GRAY

11056-7060-26M

$123.16

11056A

BRACKET,FLAP,FR

11056-7270

$8.52

14092

COVER,FLAP

14092-1111

$2.73

35019

FLAP

35019-0579

$41.43

35023

FENDER-REAR

35023-0396

$68.50

39188

TAPE,15X25

39188-0045

$1.18

410

WASHER-PLAIN-SMALL

410AA0600

$1.31

55020

GUARD,HARNESS

55020-1873

$1.70

554

PIN-SNAP,1.2X21.2

554DA0600

$0.95

92071

GROMMET

92071-0724

$3.91

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR,5.2X7.2X10

92152-1792

$8.08

92154

BOLT,SOCKET,5X16

92154-0026

$2.55

92161

DAMPER

92161-0056

$3.44

92161A

DAMPER,10X22X12

92161-0501

$1.94

92161B

DAMPER

92161-0631

$7.37

92161C

DAMPER,10X20X8.8

92161-1664

$3.02

92172

SCREW,TAPPING,6X14

92172-0856

$1.48

92200

WASHER,6.5X20X1.6

92200-1963

$1.19

92210

NUT,6MM

92210-0218

$2.55
