2018 Kawasaki Z250SL ABS Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

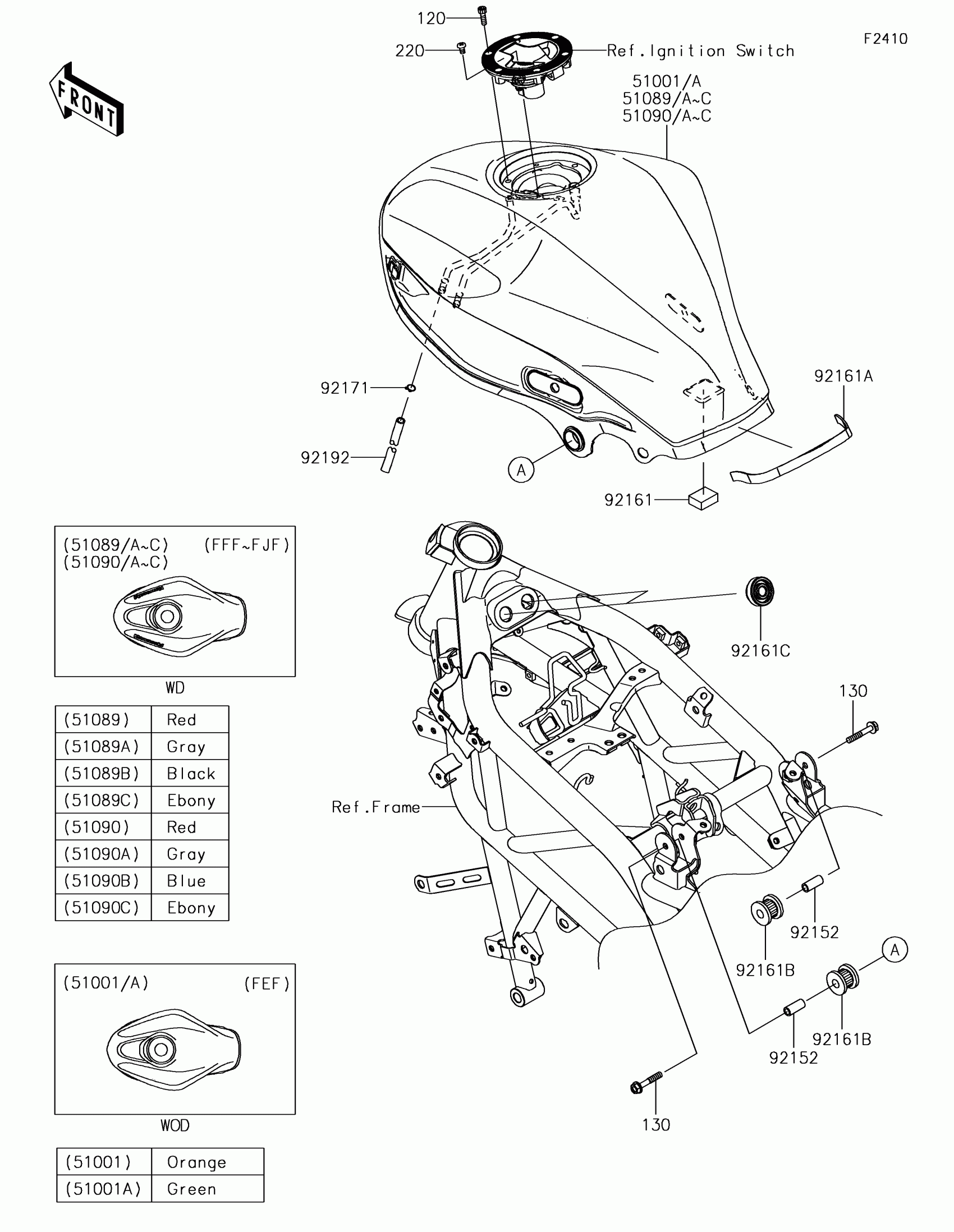

2018 Kawasaki Z250SL ABS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X16

120CB0516

1
Out of stock

130

BOLT-FLANGED,6X35

130BA0635

1
Out of stock

220

SCREW-PAN-CROS,5X8

220AB0508

1
Out of stock

51090B

TANK-COMP-FUEL,C.P.BLUE

51090-5285-723

1
Out of stock

51090C

TANK-COMP-FUEL,EBONY

51090-5285-H8

1
Out of stock

92152

COLLAR,6.8X10X23

92152-1767

1
Out of stock

92161

DAMPER

92161-0718

1
Out of stock

92161A

DAMPER,10X220X2

92161-1575

1
Out of stock

92161B

DAMPER,10X27.8X21.4

92161-1641

1
Out of stock

92161C

DAMPER,10X32X17

92161-1642

1
Out of stock

92171

CLAMP

92171-0573

1
Out of stock

92192

TUBE,6X9X810

92192-1429

1
Out of stock
