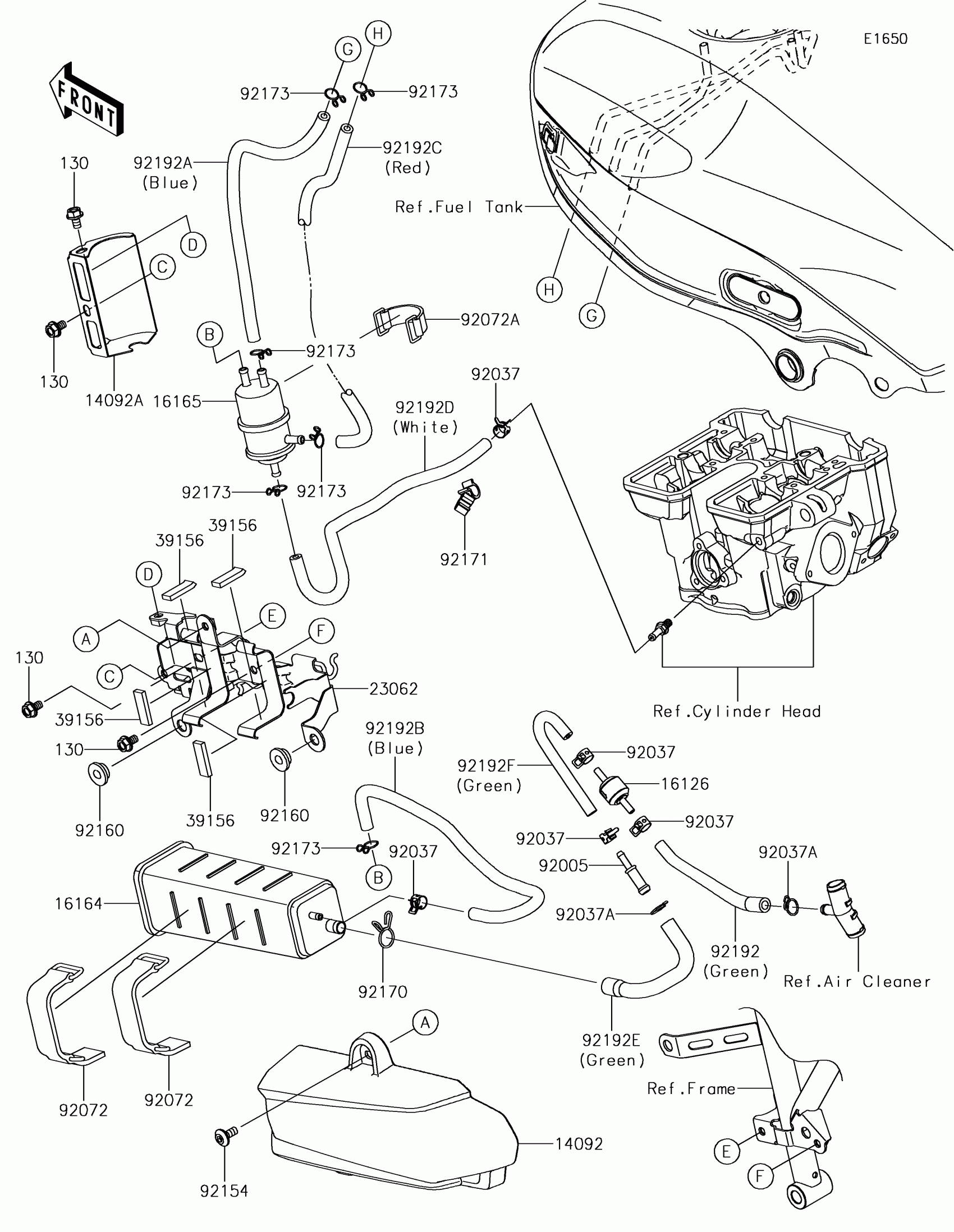

Find the part on the Fuel Evaporative System diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Kawasaki Z250SL ABS Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

14092

COVER,CANISTER

14092-1152

1
Out of stock

14092A

COVER,SEPARATOR

14092-1153

1
Out of stock

16126

VALVE

16126-0719

1
Out of stock

16164

CANISTER

16164-0009

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

23062

BRACKET-COMP

23062-0798

1
Out of stock

39156

PAD,10X30X4

39156-0927

1
Out of stock

92005

FITTING

92005-0032

1
Out of stock

92037

CLAMP

92037-1601

1
Out of stock

92037A

CLAMP

92037-1935

1
Out of stock

92072

BAND,L=90

92072-0135

1
Out of stock

92072A

BAND,L=50

92072-1419

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0907

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92170

CLAMP

92170-1695

1
Out of stock

92171

CLAMP

92171-0027

1
Out of stock

92173

CLAMP

92173-1187

1
Out of stock

92192

TUBE,VALVE-AIR CLEANER,GREEN

92192-1306

1
Out of stock

92192A

TUBE,TANK-SEPARATOR,BLUE

92192-1322

1
Out of stock

92192B

TUBE,SEPARATOR-CANISTER,BLUE

92192-1323

1
Out of stock

92192C

TUBE,SEPARATOR-TANK,RED

92192-1324

1
Out of stock

92192D

TUBE,HEAD-SEPARATOR,WHITE

92192-1325

1
Out of stock

92192E

TUBE,CANISTER-FITTING,GREEN

92192-1326

1
Out of stock

92192F

TUBE,FITTING-VALVE,GREEN

92192-1327

1
Out of stock
