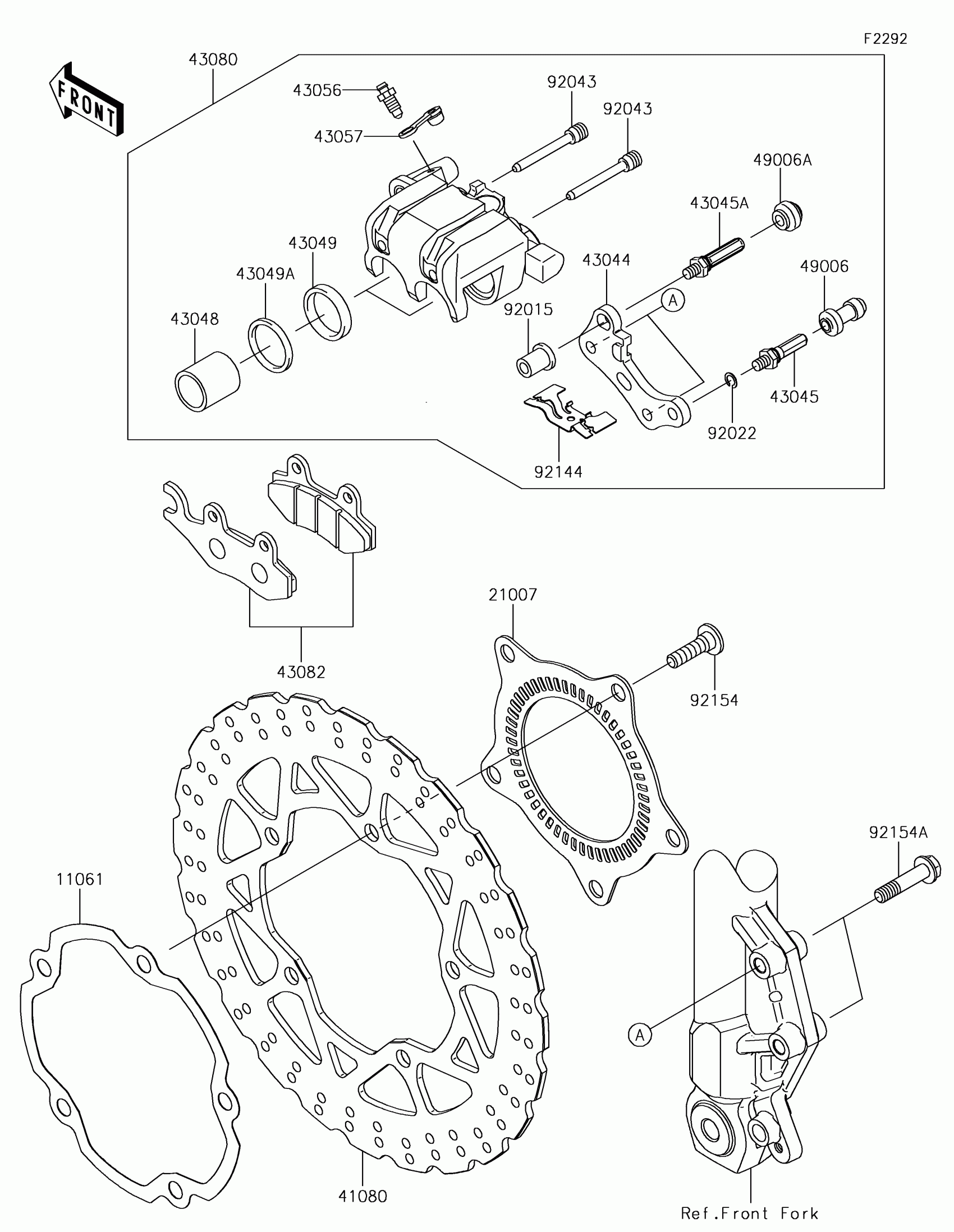

Kawasaki Z250SL ABS Front Brake Diagram

#

Description
Price

11061

GASKET,DISC

11061-0928

$28.58

21007

ROTOR,FR

21007-0588

Unavailable

41080

DISC,FR,BLACK

41080-0597-11H

$330.58

43044

HOLDER-COMP-CALIPER

43044-1112

$118.22

43045

SHAFT-CALIPER

43045-1010

$20.77

43045A

SHAFT-CALIPER

43045-1052

$17.58

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,BLACK

43080-0154-25S

$385.27

43082

PAD-ASSY-BRAKE

43082-0128

$47.06

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92015

NUT

92015-1740

$6.26

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1847

$30.33

92154

BOLT,SOCKET,8X30

92154-0844

$4.10

92154A

BOLT,FLANGED,8X36

92154-1301

$3.86
