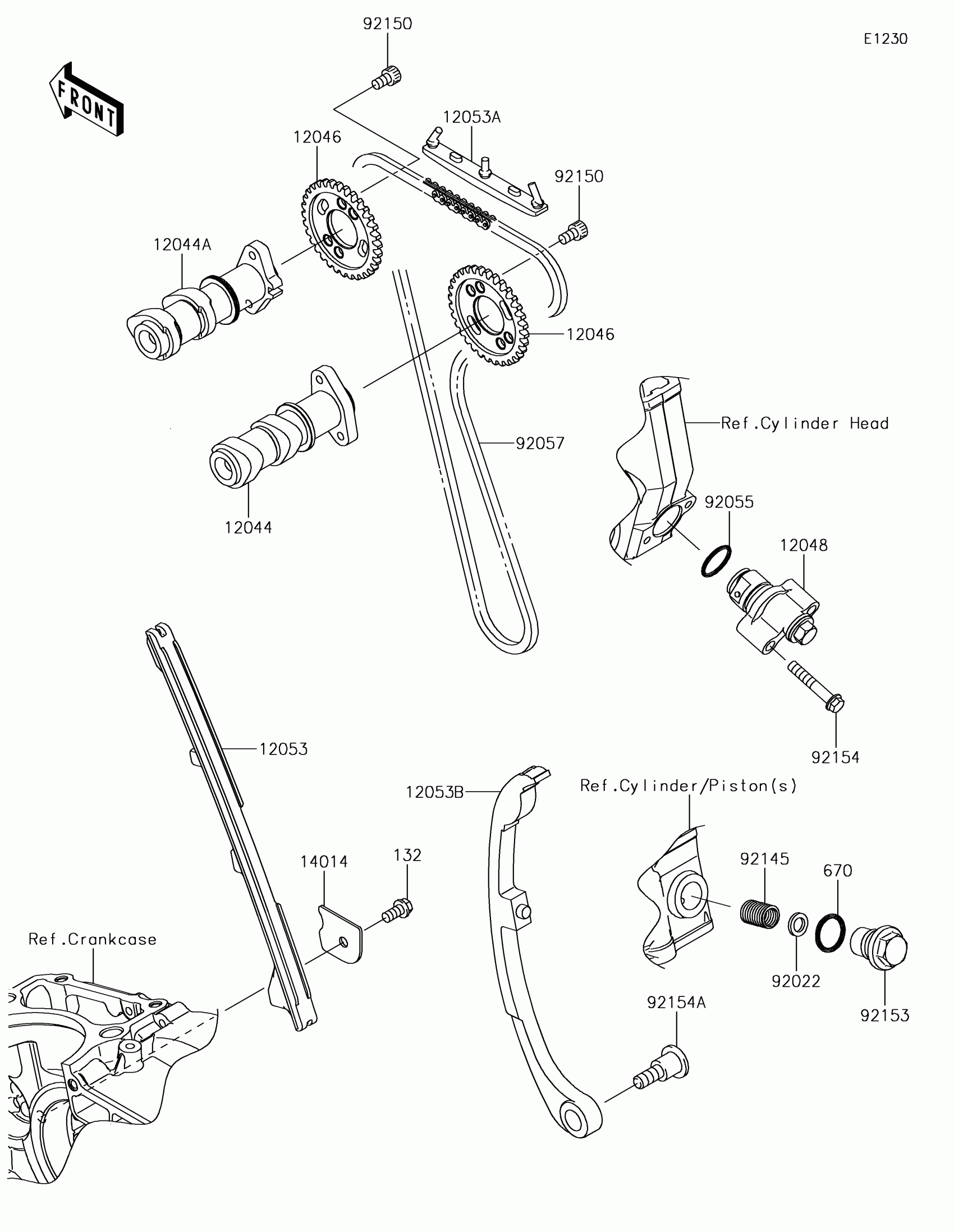

Kawasaki Z250SL ABS Camshaft(s)/Tensioner Diagram

Description

Price

12044

CAMSHAFT-VALVE,INTAKE

12044-0786

$267.40

12044A

CAMSHAFT-VALVE,EXHAUST

12044-0787

$296.55

12046

SPROCKET,CAMSHAFT,32T

12046-0576

$41.43

12048

TENSIONER-ASSY

12048-0054

$119.03

12053

GUIDE-CHAIN,FR

12053-0204

$51.83

12053A

GUIDE-CHAIN,UPP

12053-1317

$10.56

12053B

GUIDE-CHAIN,RR

12053-1391

$77.85

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

14014

PLATE-POSITION

14014-1130

$4.67

670

O RING,18MM

670B2018

$1.42

92022

WASHER,8.5X13.5X2

92022-1108

$4.31

92055

RING-O,18.8X1.9

92055-086

$4.31

92057

CHAIN,CAM,92RH2010

92057-1416

Unavailable

92145

SPRING,TENSIONER

92145-0993

$6.46

92150

BOLT,SOCKET,6X10

92150-1650

$4.31

92153

BOLT,TENSIONER

92153-0650

$2.61

92154

BOLT,FLANGED,6X35

92154-0807

$3.02

92154A

BOLT

92154-1307

$24.01
