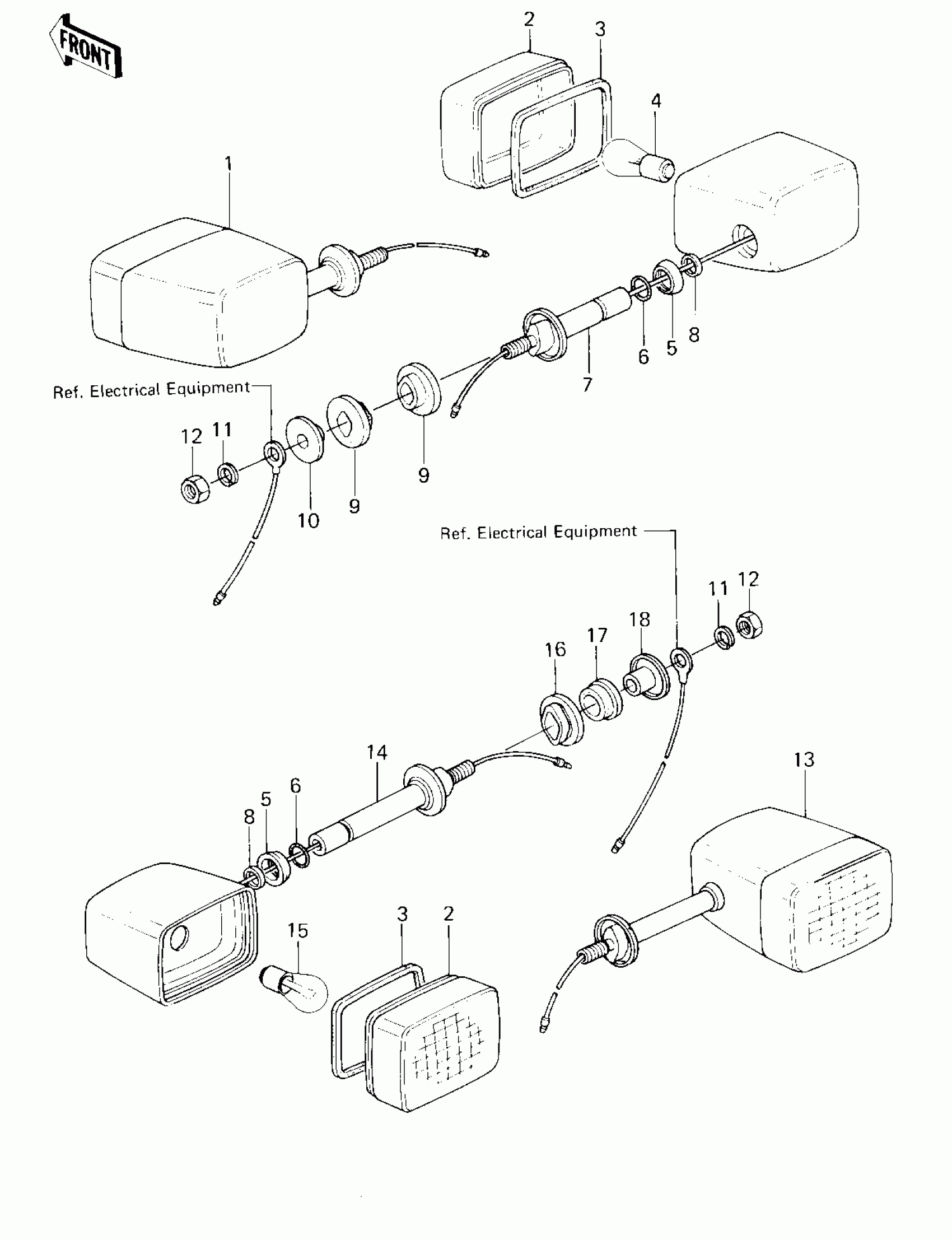

Kawasaki Z1R TURN SIGNALS ('80 D3) Diagram

#

Description
Price

1

LAMP ASSY,FR TURN SI

23037-1030

$115.00

2

LENS,TURN SIGNAL

23048-1009

$21.41

3

GASKET,TURN SIG LAMP

11009-1034

Unavailable

4

BULB,12V 32/3CP(23/8W)

92069-060

$7.70

5

RING

43058-1002

$6.32

6

O RING,12MM

670B2012

$2.58

7

BRACKET,TRN SIG FRON

23051-1010

$31.20

8

GASKET,SIGNAL LAMP

11009-1048

Unavailable

9

DAMPER,TURN SIGNAL FITTING

92075-1014

$9.71

10

COLLAR

92027-1059

Unavailable

11

WASHER SPRING 10MM

461F1000

Unavailable

12

NUT-HEX-FINE,10MM

315B1000

Unavailable

13

LAMP ASSY,RR TURN SI

23037-1031

Unavailable

14

BRACKET,TRN SIG REAR

23051-1011

$34.27

15

BULB,12V 32CP(23W)

92069-055

$4.12

16

DAMPER,LAMP

92075-128

$4.64

17

DAMPER RUBBER,SIG LM

92075-158

$4.34

18

COLLAR

92027-147

$12.02
