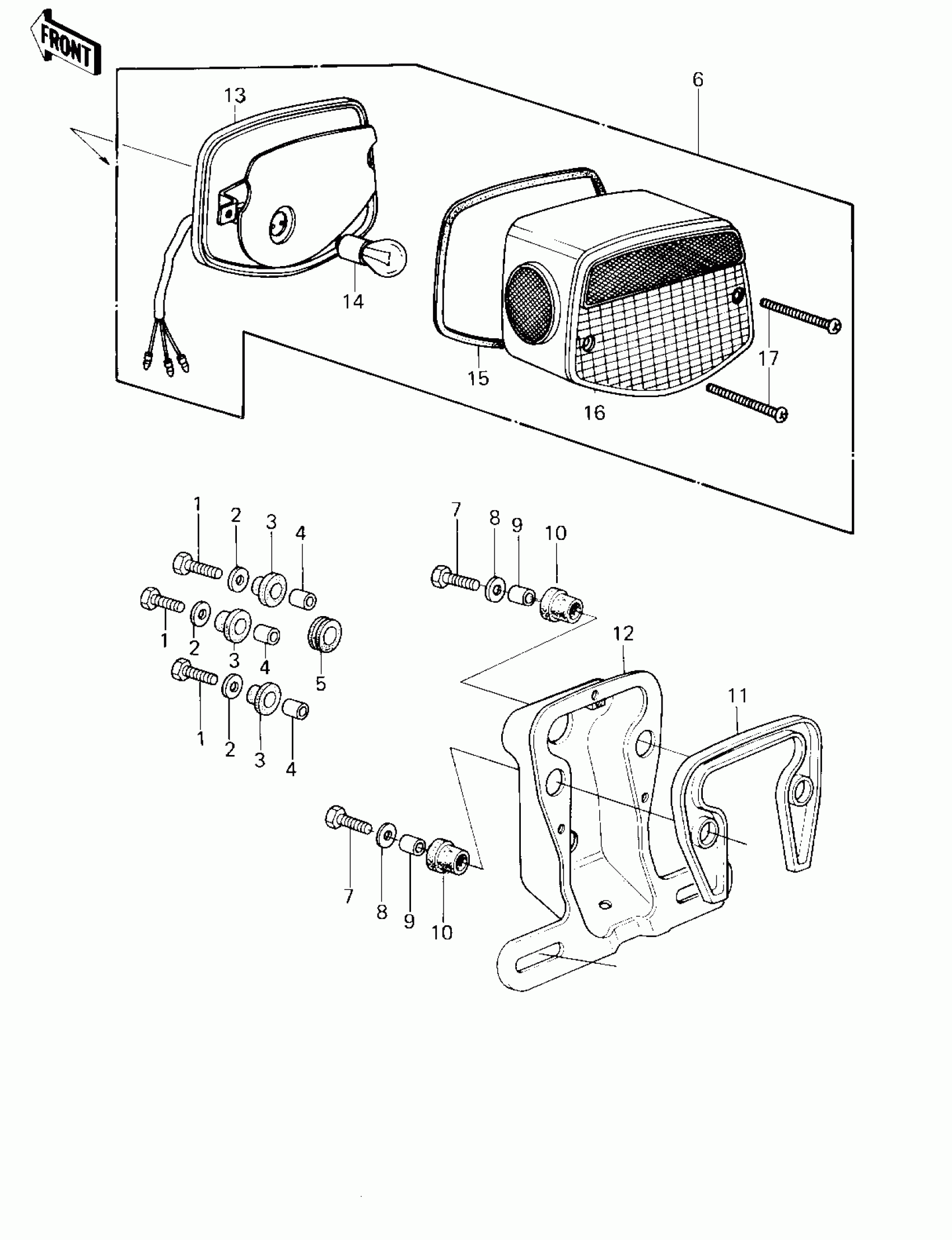

Kawasaki Z1R TAILLIGHT ('80 D3) Diagram

#

Description
Price

1

BOLT-UPSET,6X20

112G0620

Unavailable

2

WASHER,6.5X20X1.6

92022-125

$1.08

3

DAMPER RUBBER

92075-112

$3.43

4

COLLAR 6.8X10X10.5

92027-120

$3.81

5

GROMMET,10MM

92071-019

$2.97

6

LAMP-TAIL,"220-40781"MARK

23025-064

Unavailable

7

BOLT 6X22

112B0622

Unavailable

8

WASHER,6.5X20X1.6

92022-125

$1.08

9

COLLAR,6.8X10X14.5

92027-156

$3.81

10

DAMPER RUBBER

92075-1092

Unavailable

11

DAMPER RUBBER,TAIL

92075-1103

$12.19

12

BRACKET,TAIL LAMP

23036-1011

$100.83

13

BODY-COMP-TAIL LAMP

23027-041

$130.76

14

BULB,12V 27/8W

92069-059

$6.19

15

GASKET,TAIL LAMP LENS

23028-021

$11.83

16

LENS,TAIL LAMP

23026-034

$78.61

17

SCREW-PAN-CROS

220R0460

Unavailable
