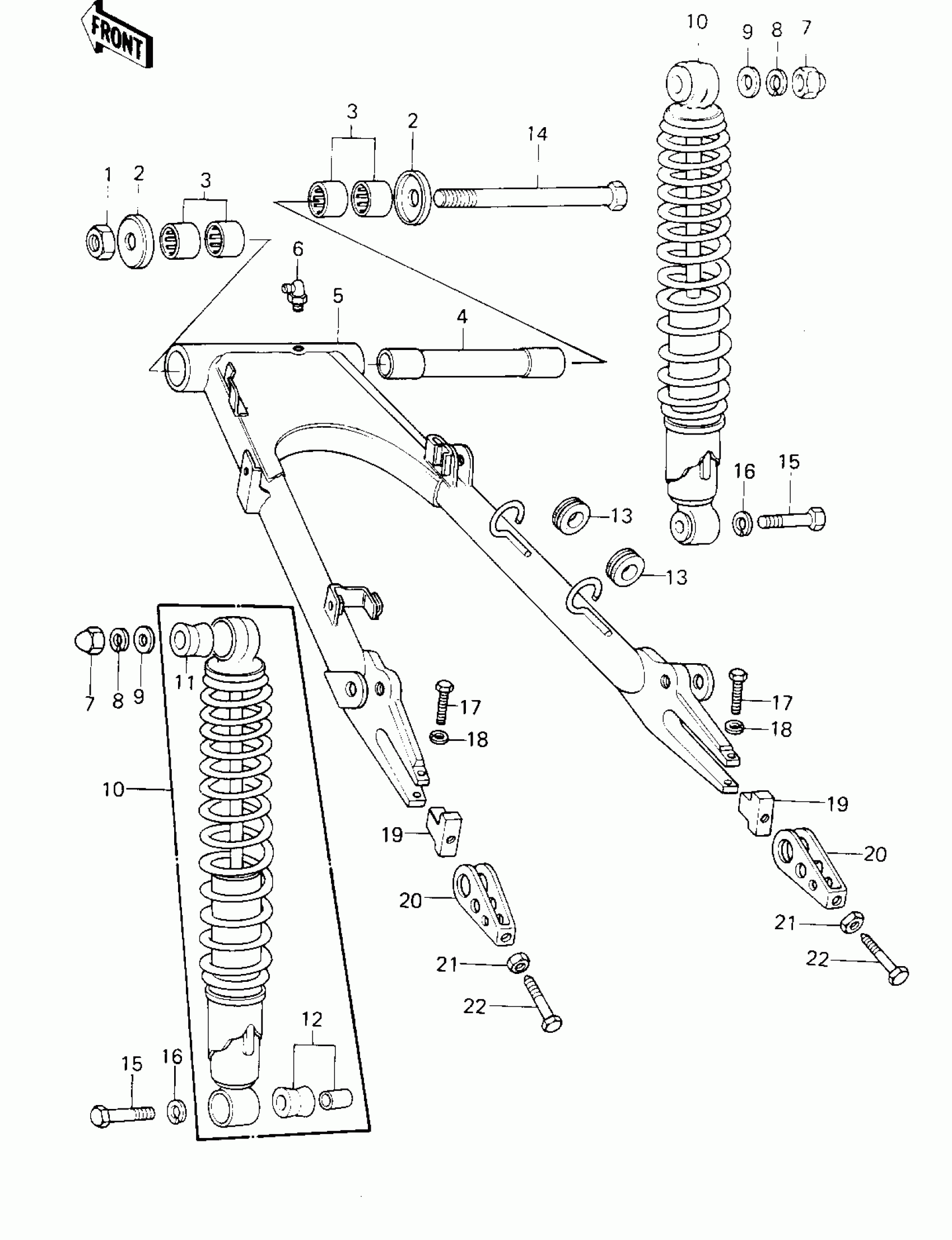

Kawasaki Z1R SWING ARM/SHOCK ABSORBERS ('80 D3) Diagram

#

Description
Price

1

NUT-SELF LOCKING

92019-012

$24.14

2

CAP,SWING ARM

33035-009

Unavailable

3

BEARING-NEEDLE,HK2216

92046-1115

Unavailable

4

SLEEVE,SWING ARM

42036-1011

Unavailable

5

ARM-COMP-SWING

33001-1079

$218.56

6

GREASE NIPPLE

92005-002

Unavailable

7

NUT,CAP,12MM

92020-014

$7.52

8

WASHER-SPRING,12MM

461F1200

Unavailable

9

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

10

SHOCK ABSBR RR

45014-1043

$470.38

11

BUSHING,SHOCK ABSORBER

45017-020

Unavailable

12

DAMPER,SHOCKABSORBER,LWR

45017-019

$15.84

13

GROMMET,HOSE CLAMP

43064-007

$4.18

14

SHAFT-SWING ARM

33032-036

$65.61

15

BOLT HEX HEAD 10X35

113N1035

Unavailable

16

WASHER SPRING 10MM

461F1000

Unavailable

17

BOLT

110G0840

Unavailable

18

WASHER SPRING 8MM

461F0800

Unavailable

19

STOPPER,CHAIN ADJUSTER

33044-001

$40.78

20

ADJUSTER-CHAIN

33040-066

$31.51

21

NUT-HEX-FINE,10MM

315B1000

Unavailable

22

BOLT,10X50

92001-143

$18.44
