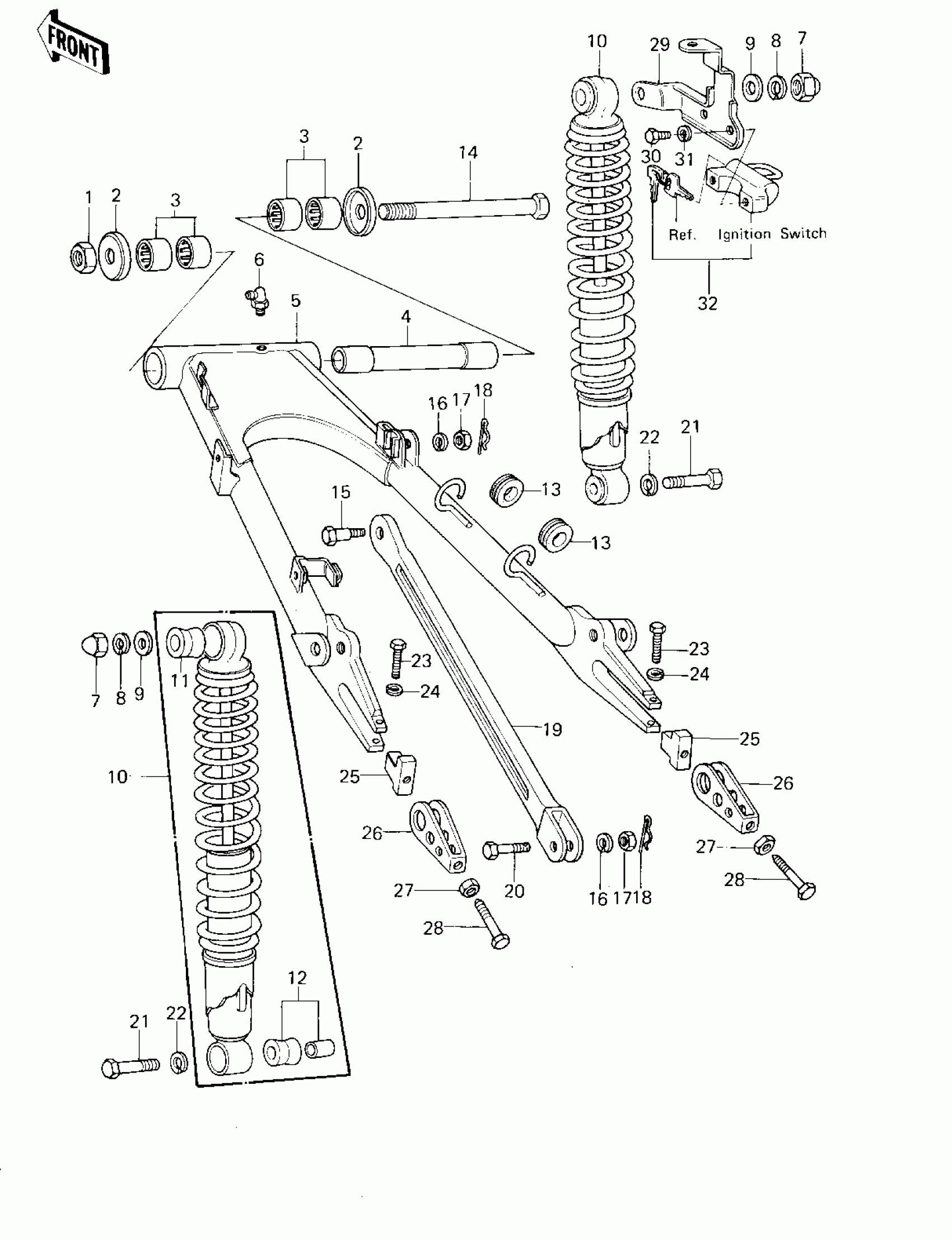

Kawasaki Z1R SWING ARM/SHOCK ABSORBERS ('78 D1) Diagram
#
Description
Price
1
NUT-SELF LOCKING
92019-012
$25.70
2
CAP,SWING ARM
33035-009
Unavailable
3
BEARING-NEEDLE,HK2216
92046-1115
$20.02
4
SLEEVE,SWING ARM
42036-1011
Unavailable
5
ARM,SWING
33001-1014
$354.18
6
GREASE NIPPLE
92005-002
Unavailable
7
NUT,CAP,12MM
92020-014
$9.45
8
WASHER-SPRING,12MM
461F1200
$0.96
9
WASHER-PLAIN-SMALL,12MM
410B1200
$0.70
10
SHOCK ABSBR RR
45014-1020
$390.32
11
BUSHING,SHOCK ABSORBER
45017-020
Unavailable
12
DAMPER,SHOCKABSORBER,LWR
45017-019
$19.66
13
GROMMET,HOSE CLAMP
43064-007
$5.52
14
SHAFT-SWING ARM
33032-036
$64.39
15
BOLT,HEX HEAD,10X39
92003-218
Unavailable
16
WASHER SPRING 10MM
461F1000
$0.67
17
NUT-HEX-FINE,10MM
314B1000
$0.67
18
PIN-SNAP,8MM
554A0800
$1.26
19
TORQUE LINK,REAR HUB
43007-049
$52.17
20
BOLT,10X47
92001-1145
Unavailable
21
BOLT HEX HEAD 10X35
113N1035
$9.14
22
WASHER SPRING 10MM
461F1000
$0.67
23
BOLT
110G0840
$7.62
24
WASHER SPRING 8MM
461F0800
$0.40
25
STOPPER,CHAIN ADJUSTER
33044-001
$40.02
26
ADJUSTER-CHAIN
33040-066
$30.91
27
NUT-HEX-FINE,10MM
315B1000
$0.58
28
BOLT,10X50
92001-143
$19.74
29
BRACKET,HELMET LOCK
11034-1134
Unavailable
30
BOLT-UPSET
112G0516
$1.47
31
WASHER SPRING 5MM
461F0500
$0.69
32
LOCK ASSY,HELMET
27016-5007
Unavailable
