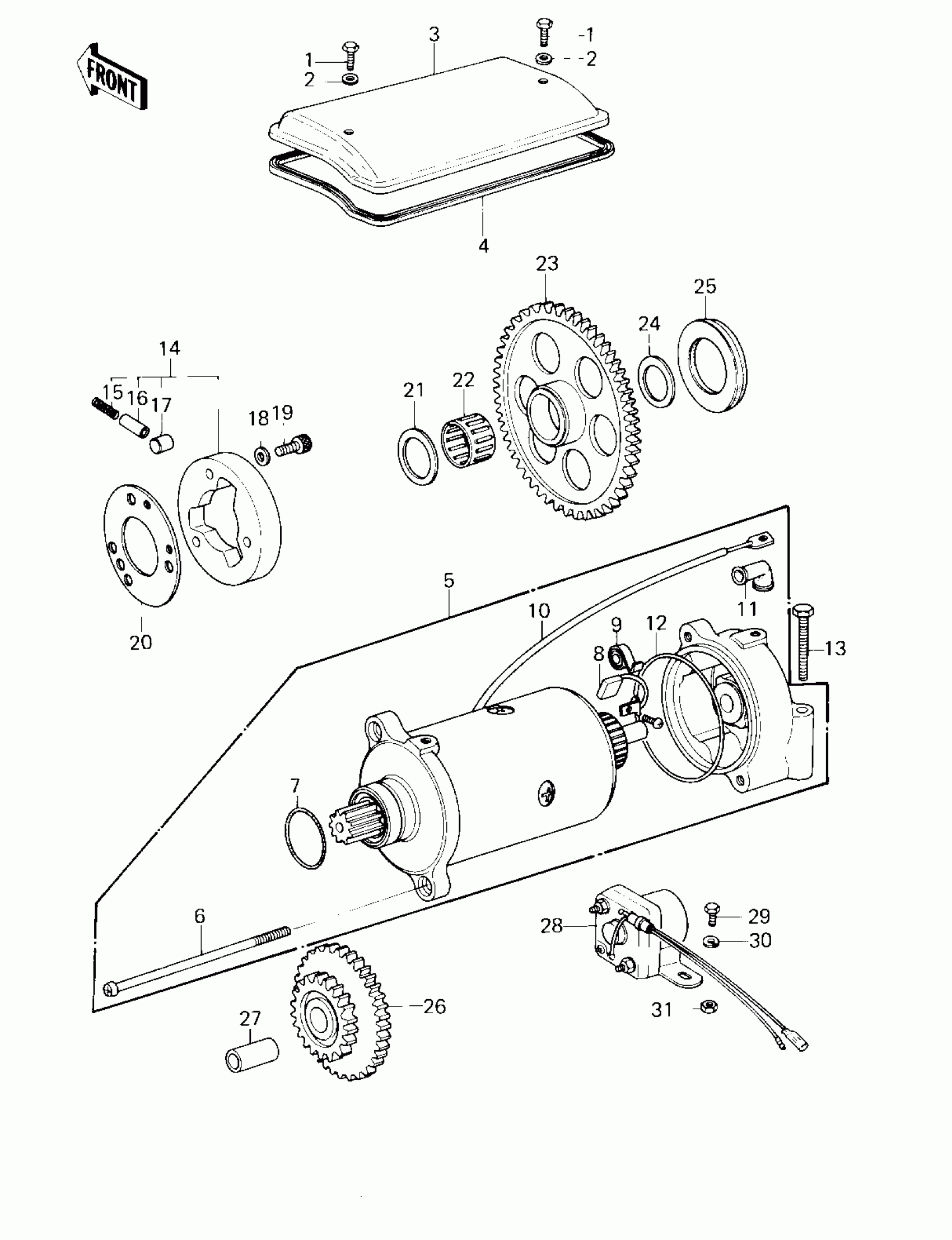

Kawasaki Z1R STARTER MOTOR/STARTER CLUTCH ('80 D3) Diagram

#

Description
Price

1

BOLT (6X10)

110R0610

$2.69

2

WASHER,PLAIN,6MM

410D0600

Unavailable

3

COVER,STARTING MOTOR

21165-001

Unavailable

4

GASKET,STARTER COVER

21166-001

$37.40

5

STARTER-ELECTRIC

21163-1019

$639.91

6

SCREW,PAN HEAD,5X110

21015-005

$9.86

7

RING-O,STARTER MOTOR,25MM

21027-004

$7.54

8

BRUSH,CARBON

21039-003

$42.66

9

SPRING-BRUSH

21040-003

Unavailable

10

WIRE,STARTER MOTOR

26010-055

$28.98

11

GROMMET,STARTER TERMINAL

21017-017

$7.18

12

RING-O,STARTER MOTOR

21027-003

Unavailable

13

BOLT,EXCLUSIVE

92001-1456

$4.34

14

CLUTCH-ASSY-ONEWAY

13193-1006

$182.70

15

SPRING

92081-110

$3.63

16

PIN

92043-087

$9.70

17

ROLLER,15X14.4

92122-001

$8.82

18

WASHER,8.5X13.5X2

92022-1108

$3.85

19

BOLT-SOCKET,8X16

120P0816

Unavailable

20

PLATE,CLUTCH STARTER

92026-112

Unavailable

21

SPACER,25X38X1.0

92026-1031

$7.89

22

BEARING-NEEDLE,K253020S

92046-1022

$21.49

23

GEAR,STARTER CLUTCH

16085-1012

$236.72

24

SPACER,25X34X2.0

92026-1033

$7.46

25

DAMPER,T=6.3

92075-1129

Unavailable

25

DAMPER,T=7.3

92075-1130

Unavailable

25

DAMPER,T=8.3

92075-1131

Unavailable

26

GEAR-SPUR,STARTER MOTOR

21167-002

Unavailable

27

PIN

13002-007

$17.07

28

SWITCH ASSY,MAGNETIC

27010-1023

Unavailable

29

BOLT-UPSET,6X16

112G0616

Unavailable

30

WASHER SPRING 6MM

461F0600

Unavailable

31

NUT,LOCK 6MM

92017-014

$5.74
