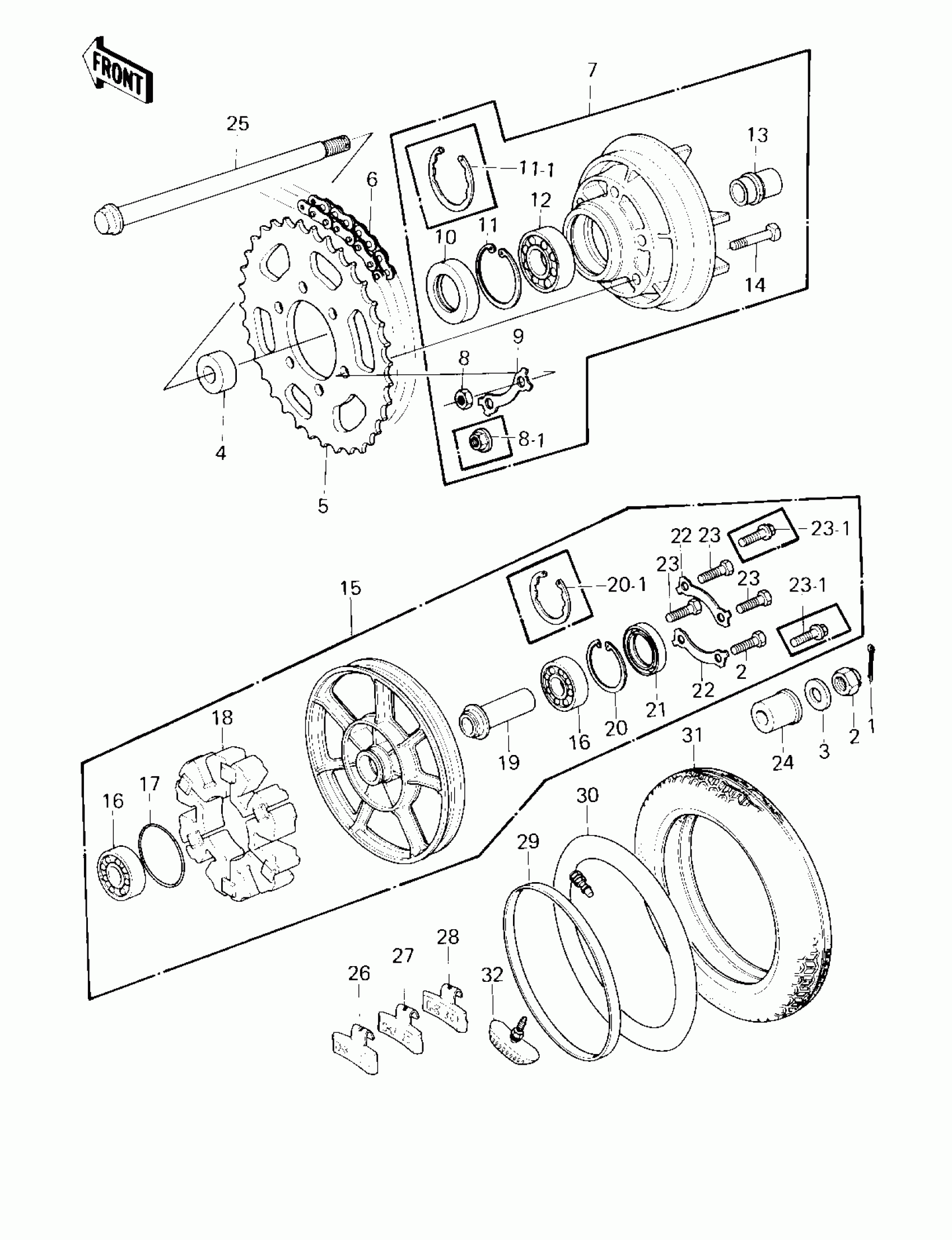

Kawasaki Z1R REAR WHEEL/TIRE/HUB/CHAIN ('80 D3) Diagram

#

Description
Price

1

PIN-COTTER,4.0X35

550D4035

$1.57

2

NUT,CASTLE,18MM

42045-018

$7.01

3

WASHER,20.3X34X4.5

92022-248

$11.12

4

COLLAR,REAR AXLE

42032-071

Unavailable

5

REAR SPROCKET, 35T

42041-1031

$129.83

6

DR CHAIN 630X92

92057-107

Unavailable

7

COUPLING ASSY,REAR

42033-1005

$285.64

8

NUT,10MM

42045-005

$6.08

8-1

NUT,FLANGED,10MM

92015-1415

$3.57

9

WASHER LOCK

92088-007

$12.10

10

SEAL-OIL,AJN40627

92050-027

$16.96

11

RING-SNAP,62MM

92033-1044

$8.59

11-1

RING-SNAP,62MM

92033-1044

$8.59

12

BALL BEARING,#6206

601B6206

$17.84

13

SLEEVE,RR HUB COUPLN

42036-033

Unavailable

14

BOLT-REAR SPROCKET

92003-087

Unavailable

15

SOLID WHEEL ASSY,REA

41073-1035

$842.32

16

BALL BEARING,#6304Z

601B6304Z

Unavailable

17

O RING,65MM

671B2565

$6.75

18

DAMPER,RR HUB SHOCK,"1000"

42014-033

$114.22

19

SPACER,RR HUB BEARIN

42010-039

Unavailable

20

RING-SNAP,52MM

92033-1043

$6.15

20-1

RING-SNAP,52MM

92033-1043

$6.15

21

SEAL-OIL,TWC35527

92052-006

Unavailable

22

WASHER,LOCK

92088-023

$10.87

23

BOLT

92001-158

Unavailable

23-1

BOLT,FLANGED,10X30

92001-1173

$8.42

24

COLLAR,REAR AXLE

42032-080

$100.63

25

AXLE,REAR

42031-034

$144.85

26

BALANCER-WHEEL,10G

41075-1011

Unavailable

27

BALANCER-WHEEL,20G

41075-1012

Unavailable

28

BALANCER-WHEEL,30G

41075-1013

Unavailable

29

BAND,RIM,4.00/5.10-18

41023-1006

$10.54

30

TUBE 350/375/410-18

41022-031

$51.02

31

TIRE 400V-18 K87

41002-1069

$173.76

32

STOPPER,RIM,2.15

41024-1001

$145.71
