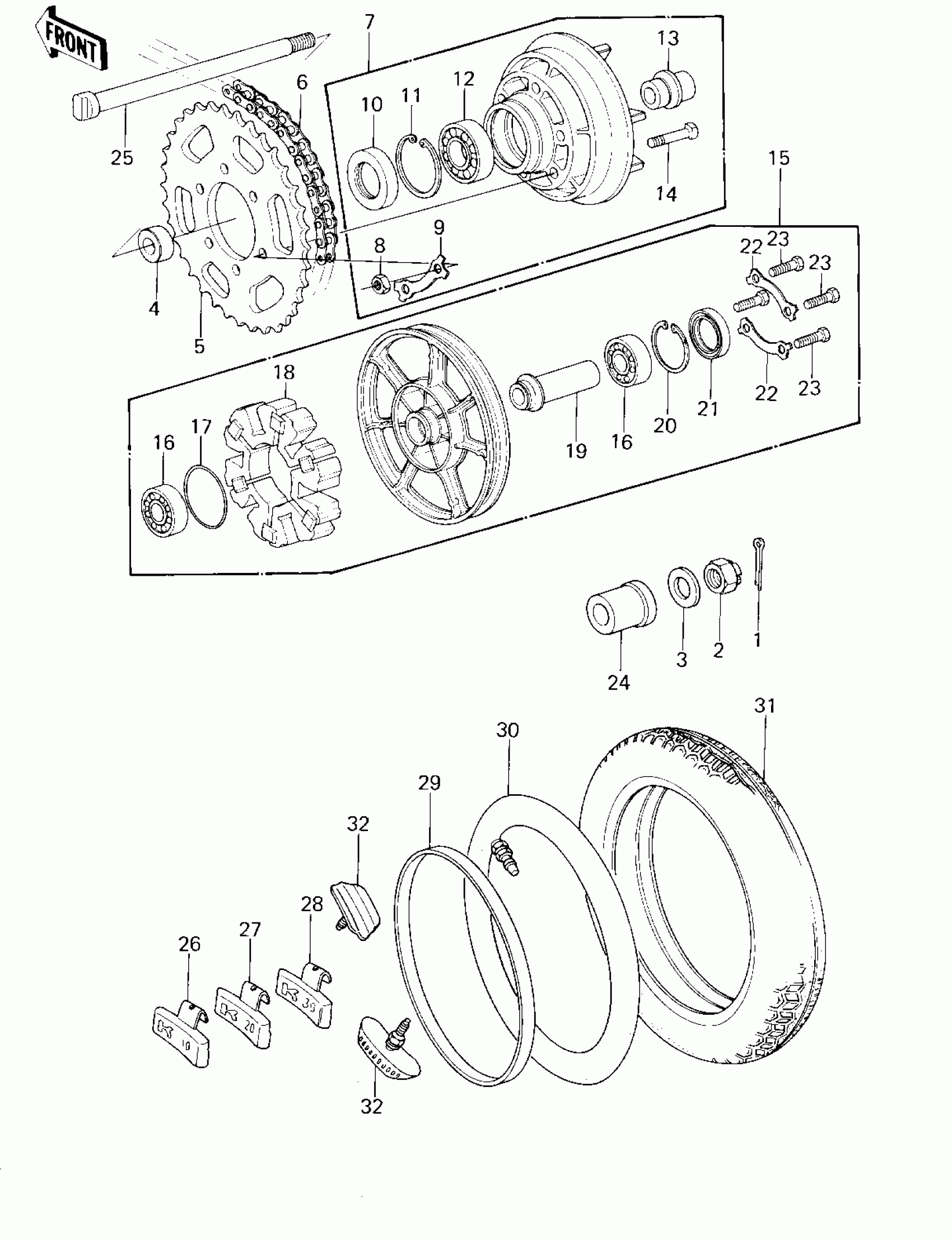

Kawasaki Z1R REAR WHEEL/TIRE/HUB/CHAIN ('78 D1) Diagram
#
Description
Price
1
PIN-COTTER,4.0X35
550D4035
$2.17
2
NUT,CASTLE,18MM
42045-018
$9.23
3
WASHER,20.3X34X4.5
92022-248
$11.60
4
COLLAR,REAR AXLE
42032-071
Unavailable
5
REAR SPROCKET,33T
42041-1010
Unavailable
6
DR CHAIN 630X92
92057-107
Unavailable
7
COUPLING ASSY,REAR
42033-1005
$281.32
8
NUT,10MM
42045-005
$7.98
9
WASHER LOCK
92088-007
$13.51
10
SEAL-OIL,AJN40627
92050-027
$20.96
11
RING-SNAP,62MM
92033-1044
$11.29
12
BALL BEARING,#6206
601B6206
$22.50
13
SLEEVE,RR HUB COUPLN
42036-033
Unavailable
14
BOLT-REAR SPROCKET
92003-087
Unavailable
15
SOLID WHEEL ASSY,REA
41073-1035
$827.48
16
BEARING BALL #6304
601B6304
$36.85
17
O RING,65MM
671B2565
$8.86
18
DAMPER,RR HUB SHOCK,"1000"
42014-033
$111.86
19
SPACER,RR HUB BEARIN
42010-039
Unavailable
20
RING-SNAP,52MM
92033-1043
$8.05
21
SEAL-OIL,TWC35527
92052-006
Unavailable
22
WASHER,LOCK
92088-023
$11.60
23
BOLT
92001-158
$3.41
24
COLLAR,REAR AXLE
42032-080
$98.72
25
AXLE,REAR
42031-034
$141.87
26
BALANCER-WHEEL,10G
41075-1011
Unavailable
27
BALANCER-WHEEL,20G
41075-1012
Unavailable
28
BALANCER-WHEEL,30G
41075-1013
Unavailable
29
BAND,RIM,4.00/5.10-18
41023-1006
$13.87
30
TUBE 350/375/410-18
41022-031
$50.05
31
TIRE 400H-18 K87 R
41021-039
Unavailable
32
STOPPER,RIM,2.15
41024-1001
$142.70
