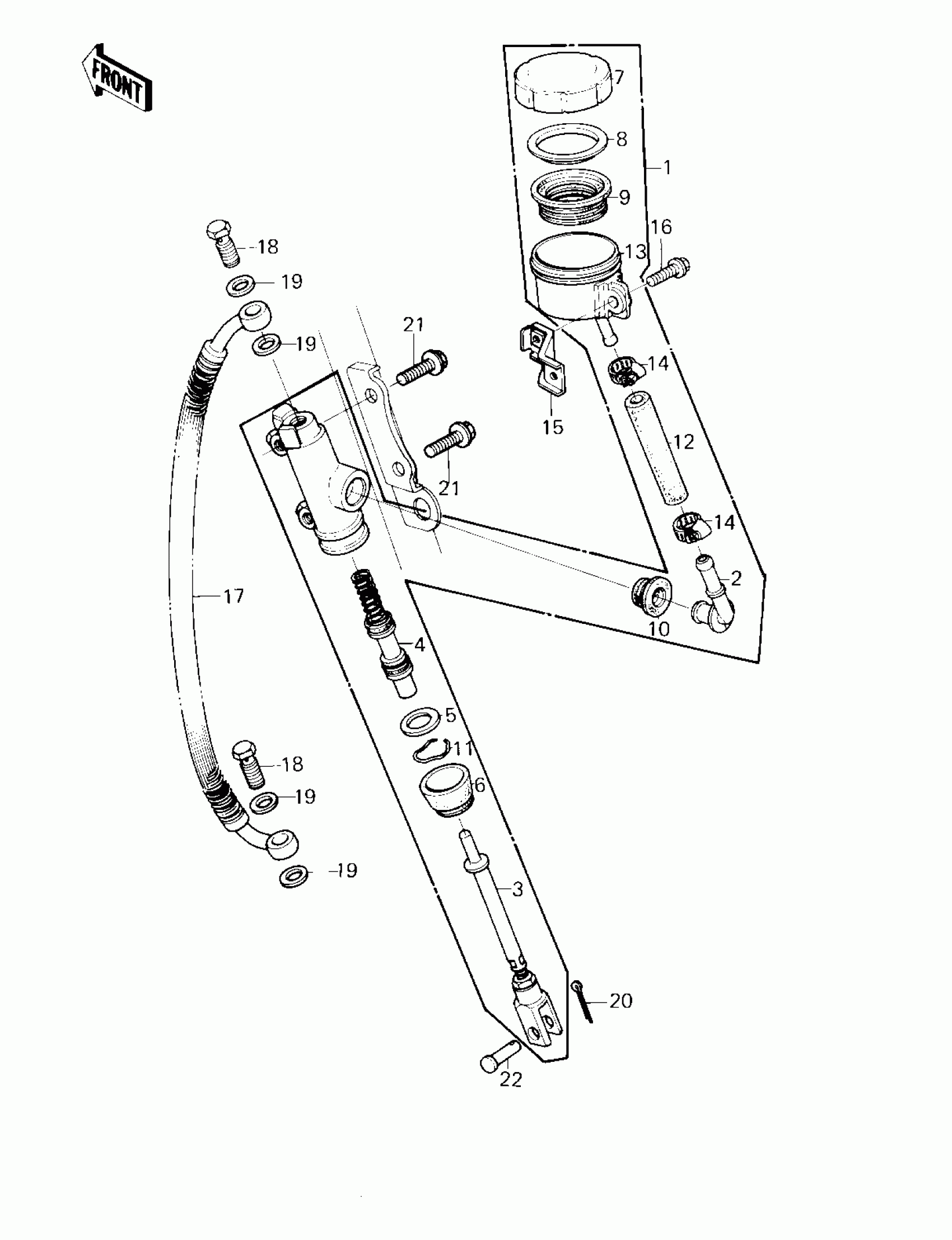

Kawasaki Z1R REAR MASTER CYLINDER ('80 D3) Diagram

#

Description
Price

1

CYLINDER ASSY,RR MAST

43015-1047

$314.22

2

CONNECTOR

13159-1005

Unavailable

3

ROD ASSY,REAR BRAKE

43010-1003

$55.93

4

PISTON ASSY,RR BRAKE

43020-1015

Unavailable

5

STOPPER,PISTON

43022-1002

$4.56

6

DUST COVER

43024-003

$23.93

7

CAP,OIL CUP

43026-1010

$37.12

8

PLATE-DIAPHRAGM

43027-1005

$5.66

9

DIAPHRAGM

43028-1016

$21.88

10

PACKING

43049-1008

$10.53

11

RING,ROD STOPPER

43058-004

$5.83

12

HOSE,BRAKE

43059-1044

Unavailable

13

RESERVOIR

43078-1008

Unavailable

14

CLAMP,BRAKE HOSE

92037-1154

Unavailable

15

BRACKET,RR M/CYLINDER

11034-1580

Unavailable

16

BOLT,FLANGED,6X20

130B0620

Unavailable

17

HOSE, RR M/CYL BRAKE

43059-1046

$106.88

18

BOLT,OIL,L=23

92002-1888

$4.15

19

WASHER,10.5X15X1.5

43067-001

$1.57

20

PIN COTTER 2.0X15

550D2015

Unavailable

21

BOLT,FLANGED,8X28

92001-1095

$5.71

22

PIN,8X16

92043-1013

$7.54
