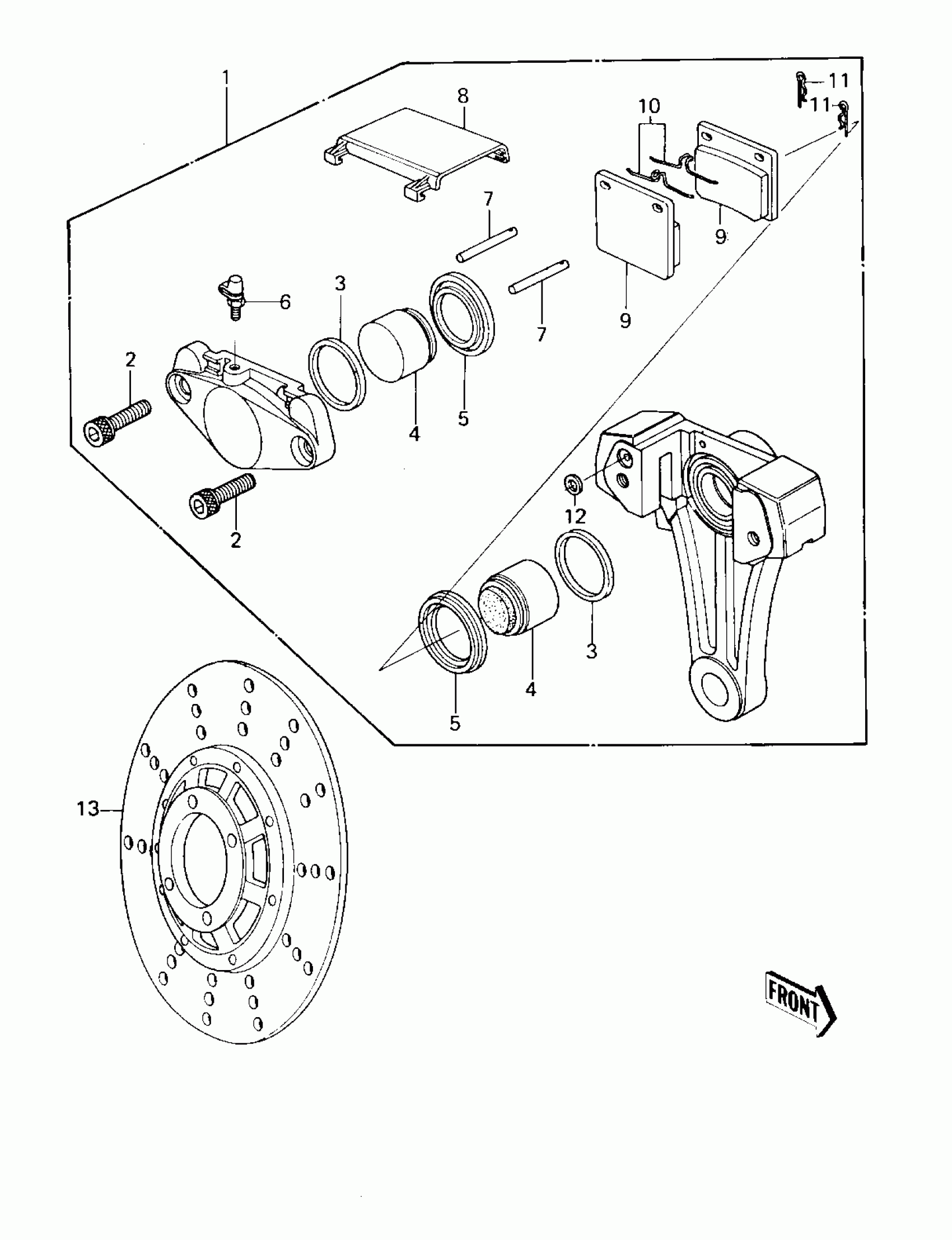

Kawasaki Z1R REAR BRAKE ('80 D3) Diagram

#

Description
Price

1

CALIPER ASSY,REAR

43041-1013

$397.40

2

BOLT,REAR CALIPER

43033-005

$8.64

3

PACKING,PISTON SEAL

43049-002

$10.56

4

PISTON,BRAKE

43020-1011

$111.19

5

DUST SEAL,PISTON

43054-004

$16.17

6

BLEEDER SET

43085-001

$19.94

7

SHAFT-CALIPER

43045-007

$4.88

8

CAP

43024-004

Unavailable

9

PAD SET

43082-1002

Unavailable

10

SPRING

43086-002

Unavailable

11

CLAMP,PAD

43084-003

$3.29

12

RING,SEAL

43053-008

$12.86

13

DISC PLATE, RR BRAKE

41080-1023

$440.97
