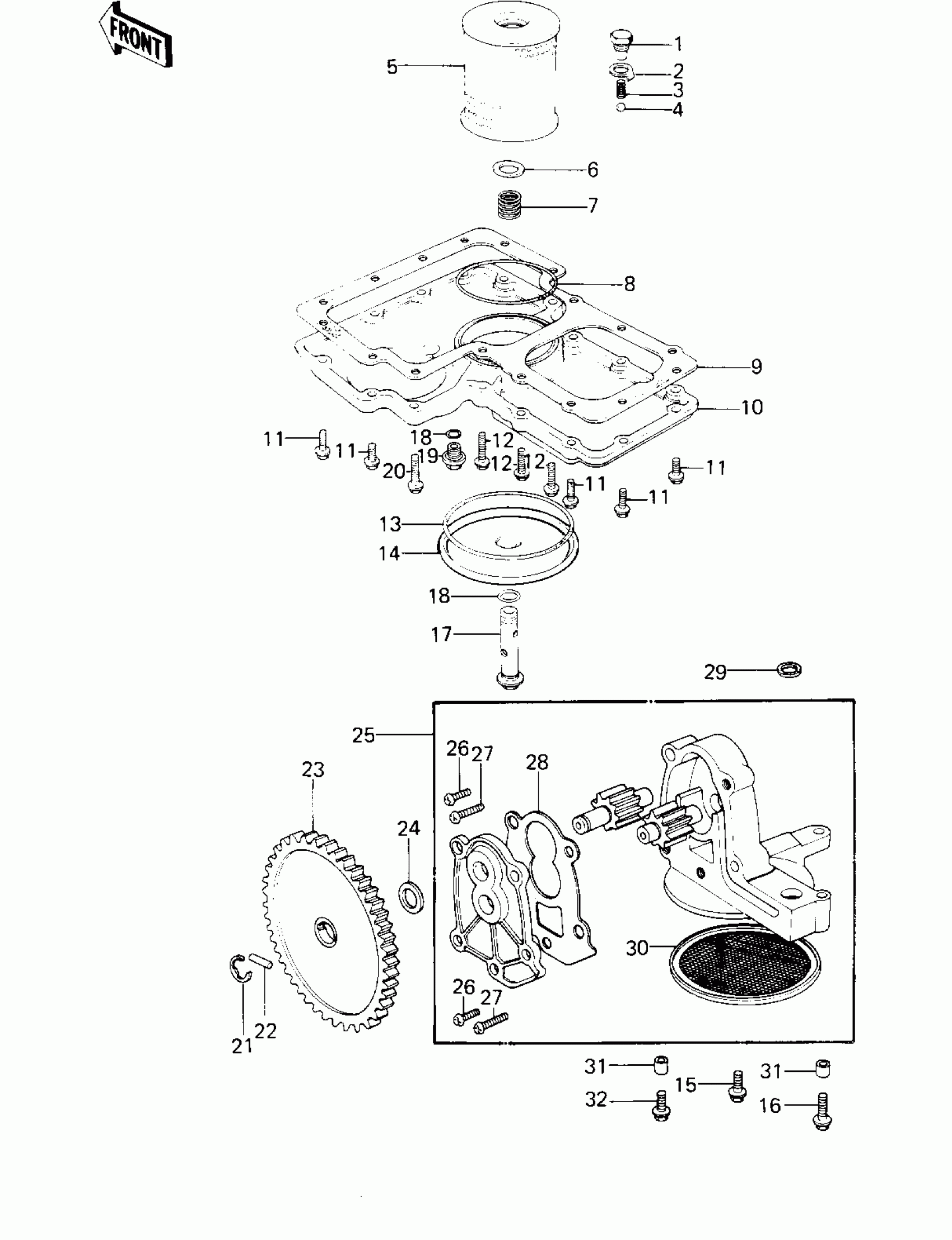

Kawasaki Z1R OIL PAN/OIL PUMP/OIL FILTER ('80 D3) Diagram

#

Description
Price

1

BOLT

92003-095

Unavailable

2

WASHER,LOCK

92024-048

Unavailable

3

SPRING

92081-109

$10.85

4

BALL-STEEL,3/8"

600A1200

$1.14

5

ELEMENT-OIL FILTER

16099-002

$12.29

6

WASHER,20.5X30X1

92022-1012

$3.32

7

SPRING,OIL FILTER

92081-1018

$3.54

8

RING-O,91.6X3.4

92055-052

$7.52

9

GASKET,OIL PAN

11060-1074

Unavailable

10

PAN-OIL

49034-5020

$270.86

11

BOLT,FLANGED,6X25

130G0625

Unavailable

12

BOLT,FLANGED,6X25

130G0625

Unavailable

13

"0" RING,105MM

671B25105

$35.10

14

COVER,OIL FILTER

14025-1112

Unavailable

15

BOLT,FLANGED,6X22

92001-1352

$3.29

16

BOLT,FLANGED,6X45

92001-165

$3.98

17

BOLT,OIL FILTER

92001-1074

$84.70

18

O RING,22MM

670B2022

$3.57

19

PLUG,OIL DRAIN

92001-1183

$55.65

20

BOLT-FLANGED,6X50

130G0650

Unavailable

21

CIRCLIP,7MM

482K7000

Unavailable

22

PIN,DOWEL,3X14

551A0314

$0.66

23

GEAR,OIL PUMP 49T

16085-019

$103.54

24

WASHER,LOCK,16MM

92026-080

$4.17

25

PUMP-ASSY-OIL

16082-5001

$722.58

26

SCREW PAN HEAD 6X18

220B0618

$2.79

27

SCREW PAN HEAD 6X28

220B0628

Unavailable

28

GASKET,OIL PUMP

11009-1029

Unavailable

29

RING-O,OD=18

92055-048

$3.66

30

FILTER,OIL PUMP

16111-004

$45.22

31

PIN,DOWEL,8X10

92043-1302

$0.84

32

BOLT,HEX HEAD,6X35

92001-164

$4.96
