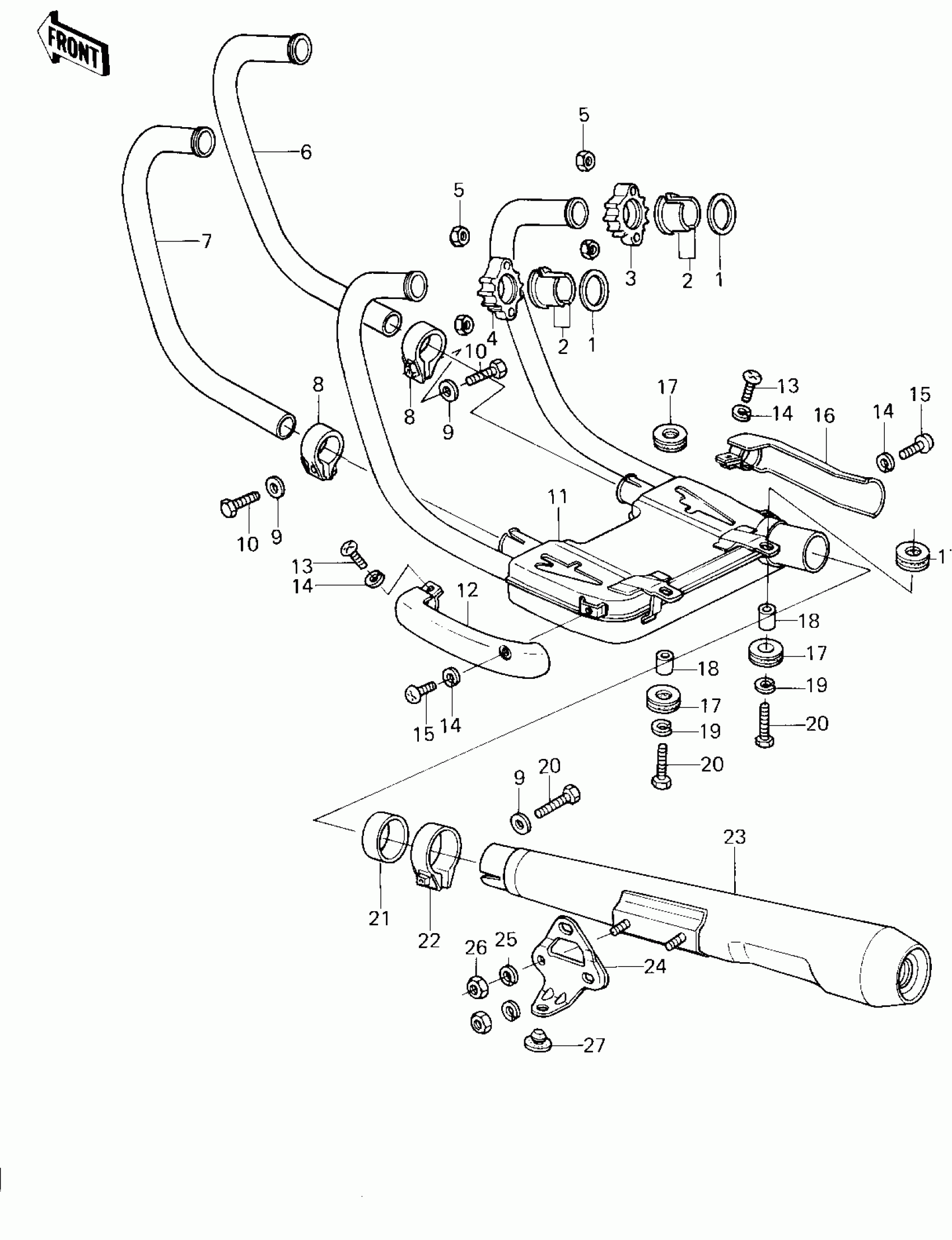

Kawasaki Z1R MUFFLER ('78 D1) Diagram
#
Description
Price
1
GASKET,EXHAUST PIPE
11009-1906
$11.06
2
INSERT,EXHAUST PIPE
92027-170
$13.51
3
HOLDER,EXHAUST PIPE,
18069-1004
Unavailable
4
HOLDER,EXHAUST PIPE,
18069-1005
$61.29
5
NUT,LOCK,8MM
92017-013
$10.35
6
PIPE,EXHAUST,R.H.INN
18049-1031
Unavailable
7
PIPE,EXHAUST,L.H.INN
18049-1030
Unavailable
8
CLAMP,EXH PIPE CONNCT
92037-180
Unavailable
9
WASHER PLAIN 8MM
410B0800
$0.93
10
BOLT-SMALL-UPSET,8X30
115G0830
$6.34
11
BOX,MUFFLER CONNECTI
49070-1006
Unavailable
12
COVER,MUFFLER,L.H
14025-1016
Unavailable
13
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
14
WASHER-SPRING,6MM,BLACK
461K0600
$0.64
15
SCREW-PAN-CROS,6X10,BLACK
220C0610
$1.81
16
COVER,MUFFLER,R.H
14025-1017
Unavailable
17
DAMPER RUBBER
92075-1042
Unavailable
18
COLLAR
92027-1064
$13.60
19
WASHER SPRING 8MM
461F0800
$0.40
20
BOLT,FLANGED,8X35
92001-1577
Unavailable
21
GASKET,MUFFLER CONNEC
11009-1035
Unavailable
22
CLAMP,MUFFLER
92037-1055
$21.11
23
MUFFLER,R.H
18002-1034
$515.74
24
BRACKET,MUFFLER
32069-1016
$25.26
25
WASHER SPRING 8MM
461F0800
$0.40
26
NUT,8MM
311B0800
$0.67
27
DAMPER
92075-015
$5.00
