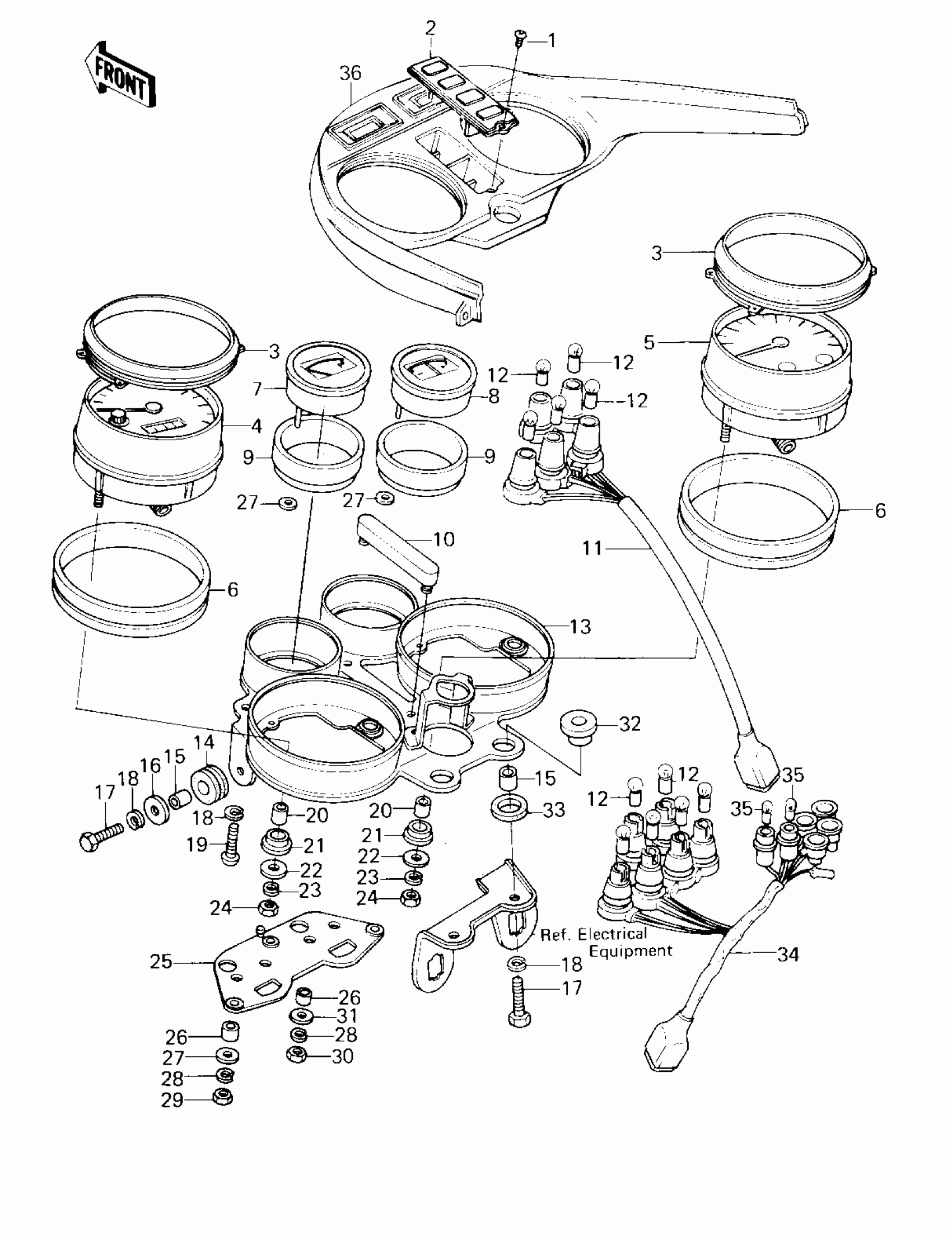

Kawasaki Z1R METERS ('80 D3) Diagram

#

Description
Price

1

SCREW,TAPPING,3X12

92009-1028

$3.20

2

COVER,METER INDICATE

25023-1004

$172.12

3

DAMPER RUBBER,METER

92075-1049

Unavailable

4

SPEEDOMETER ASSY,MPH

25005-1070

$540.08

4

SPEEDOMETER ASSY,KPH (Canada)

25005-1023

$1,180.82

5

TACHOMETER ASSY

25015-1014

Unavailable

6

DAMPER RUBBER,METER

92075-1050

Unavailable

7

METER,FUEL GAUGE

28011-1001

Unavailable

8

METER,AMMETER

28011-1002

Unavailable

9

DAMPER RUBBER,METER

92075-1051

Unavailable

10

DAMPER RUBBER,METER

92075-1053

Unavailable

11

SOCKET ASY,METR INDI

23008-1021

Unavailable

12

BULB 12V 3W

92069-018

$3.71

13

BRACKET,METER

25008-1008

Unavailable

14

DAMPER

92075-1035

$5.07

15

COLLAR,6.8X10X14.5

92027-156

$3.81

16

WASHER,6.5X20X1.6

92022-125

$1.08

17

BOLT-UPSET

112G0625

Unavailable

18

WASHER SPRING 6MM

461F0600

Unavailable

19

SCREW PAN HEAD 6X12

220B0612

Unavailable

20

COLLAR,METER

92027-211

Unavailable

21

RUBBER,METER

92075-172

$11.85

22

WASHER,PLAIN,5MM

92022-241

Unavailable

23

WASHER SPRING 5MM

461F0500

Unavailable

24

NUT-HEX,5MM

312B0500

Unavailable

25

DAMPER RUBBER,METER

92075-1052

$45.91

26

COLLAR

92027-1075

Unavailable

27

WASHER,PLAIN

92022-1052

$1.71

28

WASHER SPRING 4MM

461F0400

Unavailable

29

NUT-HEX

312B0400

$0.49

30

NUT-HEX

311B0400

Unavailable

31

WASHER,PLAIN

92022-1051

$4.54

32

DAMPER RUBBER

92075-1036

Unavailable

33

DAMPER RUBBER

92075-1037

Unavailable

34

SOCKET ASSY,METER

23008-1020

Unavailable

35

BULB,12V2W

92069-1003

Unavailable

36

COVER,METER CASE

25023-1002

$410.05
