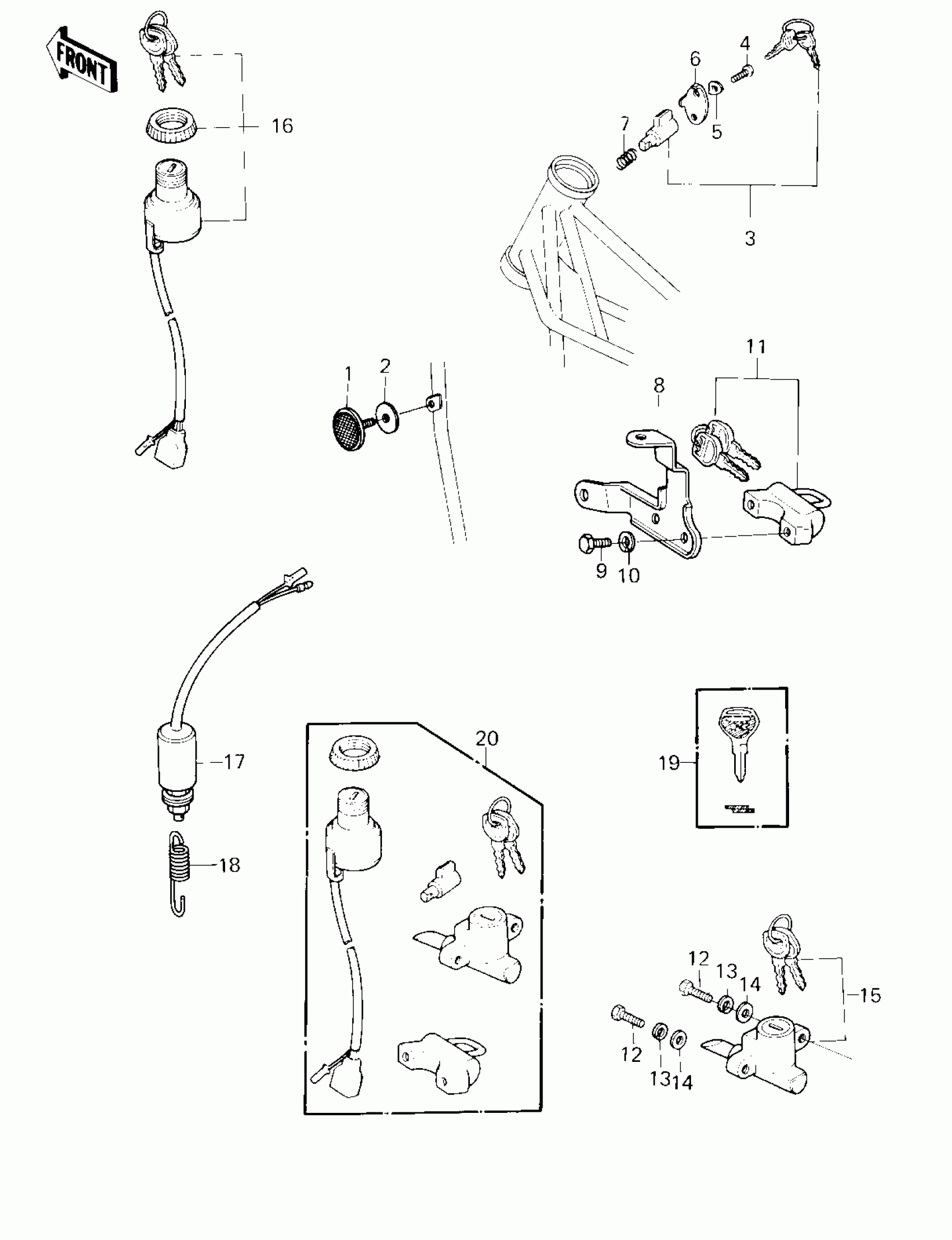

Kawasaki Z1R IGNITION SWITCH/LOCKS/REFLECTORS ('80 D3 Diagram
#
Description
Price
3
LOCK,ASSY,STEERING
27016-5016
Unavailable
7
SPRING,STEERING LOCK
27032-001
Unavailable
8
BRACKET,HELMET LOCK
11034-1134
Unavailable
9
BOLT-UPSET
112G0516
Unavailable
10
WASHER SPRING 5MM
461F0500
Unavailable
11
LOCK ASSY,HELMET
27016-5014
Unavailable
12
BOLT-UPSET
112G0516
Unavailable
13
WASHER SPRING 5MM
461F0500
Unavailable
14
WASHER-PLAIN,5MM
411B0500
Unavailable
15
LOCK ASSY,SEAT
27016-5031
Unavailable
16
SWITCH ASSY,IGNITION
27005-5012
Unavailable
17
SWITCH-BRAKE LAMP
27010-017
Unavailable
18
SPRING BRAKE LAMP SW
27011-009
Unavailable
19
KEY-LOCK,BLANK
27008-1103
Unavailable
20
LOCK ASSY
27004-5019
Unavailable
