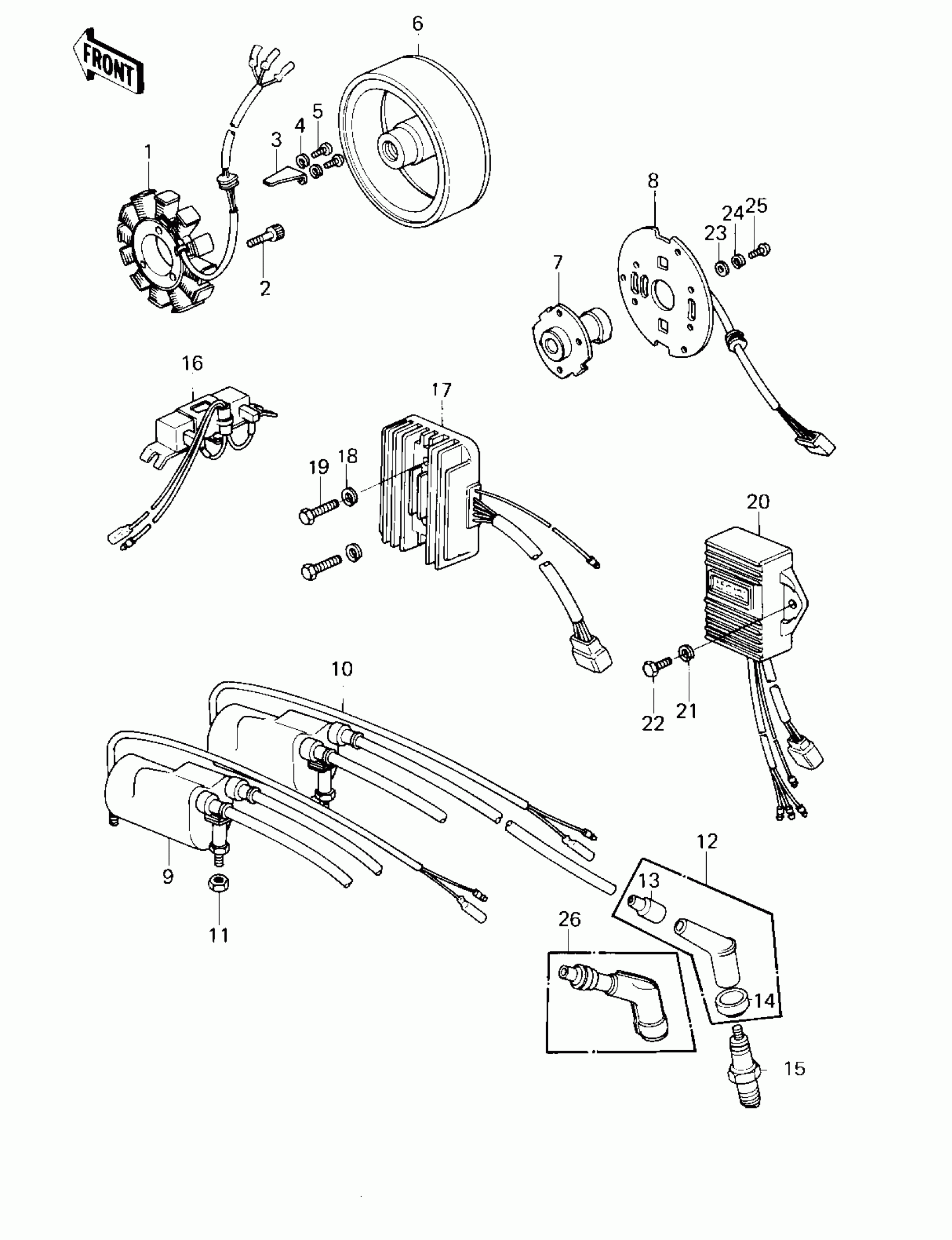

Kawasaki Z1R IGNITION/GENERATOR/REGULATOR ('80 D3) Diagram

#

Description
Price

1

STATOR ASSY

21003-1015

Unavailable

2

BOLT,SOCKET,5X25

120P0525A

Unavailable

3

CLAMP,GENERATOR LEAD

92037-1122

$4.25

4

WASHER SPRING 5MM

461F0500

Unavailable

5

SCREW-PAN-CROS

220B0512

$0.47

6

ROTOR

21007-1011

$1,072.51

7

ADVANCER ASSY,SPARK

21148-1009

$257.61

7

ADVANCER ASSY SPARK (Canada)

21148-1006

Unavailable

8

COIL-PULSING

59026-1012

$242.17

9

COIL,IGNITION,NO.1&4

21121-1013

Unavailable

10

COIL,IGNITION,NO.2&3

21121-1014

Unavailable

11

NUT,LOCK 6MM

92017-014

$5.74

12

CAP SPARK PLUG

21160-1014

Unavailable

13

GROMMET,HIGH TENSION

21132-005

$3.25

14

GROMMET,PLUG CAP

21131-004

$10.81

15

SPARK PLUG B8ES11

B8ES11

$2.80

16

RESISTOR ASSY

28018-1018

Unavailable

17

REGULATOR,VOLTAGE

21066-1008

Unavailable

18

WASHER SPRING 6MM

461F0600

Unavailable

19

BOLT-UPSET

112G0625

Unavailable

20

IGNITER

21119-5001

Unavailable

20

IGNITER

21119-5001

Unavailable

21

WASHER SPRING 6MM

461F0600

Unavailable

22

BOLT-UPSET,6X16

112G0616

Unavailable

23

WASHER PLAIN 5MM

410B0500

Unavailable

24

WASHER SPRING 5MM

461F0500

Unavailable

25

SCREW-PAN-CROS

220B0512

$0.47

26

CAP-ASSY-PLUG

21160-005

$52.69
