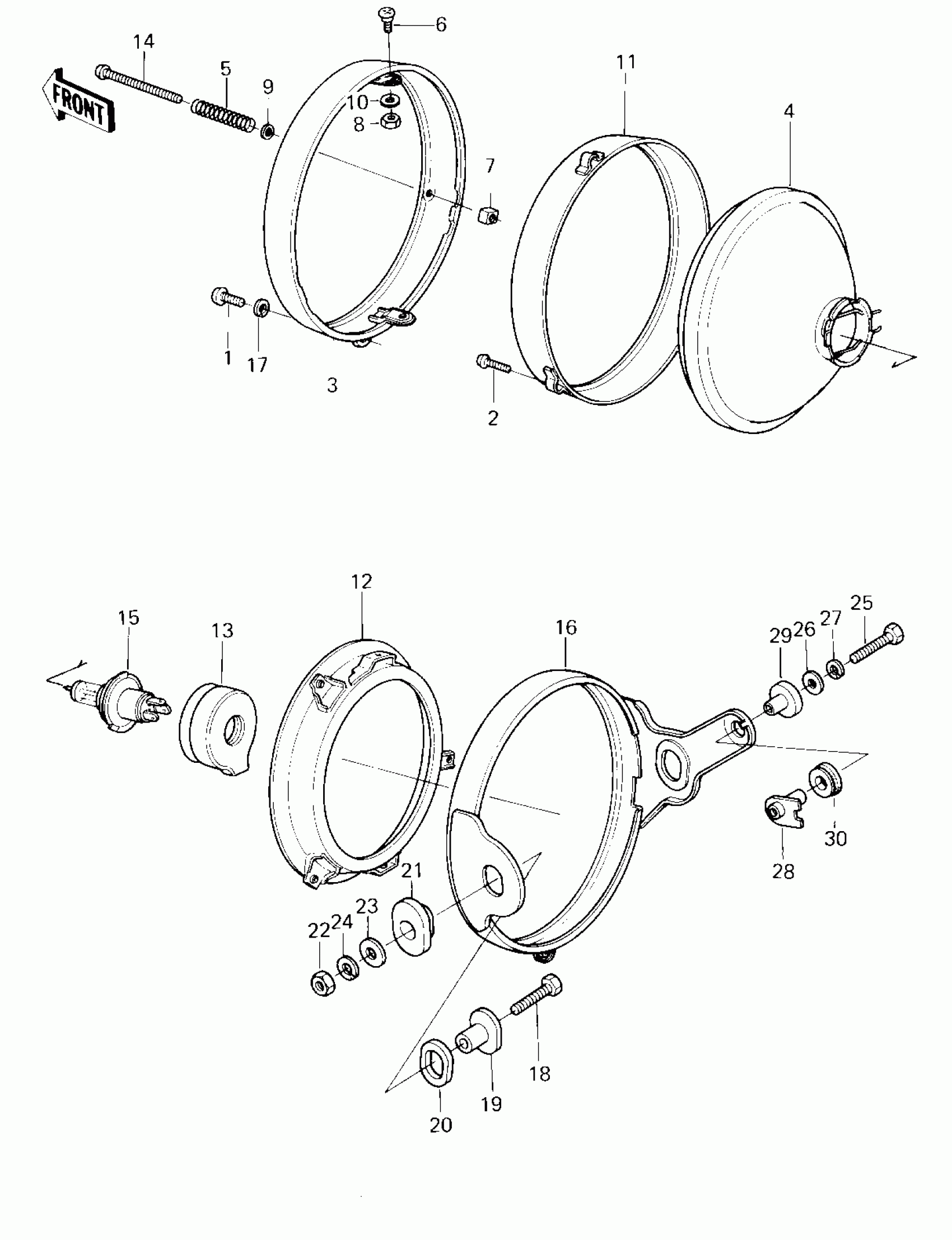

Kawasaki Z1R HEADLIGHT ('80 D3) Diagram

#

Description
Price

1

SCREW PAN HEAD 6X12

220B0612

Unavailable

2

SCREW-PAN-CROS

220B0312

Unavailable

3

RIM,HEAD LAMP

23006-1006

$72.76

4

LENS-COMP,"001-1970" MARK

23007-1009

$163.61

5

SPRING,FOCUS ADJUSTING

23014-005

$3.19

6

SCREW,PAN HEAD,5X12

23019-023

$4.78

7

NUT,4MM,FOCUS ADJUST

23020-018

$3.69

8

NUT,5MM

23020-023

Unavailable

9

WASHER,4.1X8X0.8

23021-004

Unavailable

10

WASHER,PLAIN,5MM

23021-012

Unavailable

11

RING,HEAD LAMP MOUNT

23072-001

$45.03

12

RING,HEAD LAMP MOUNT

23074-001

$65.88

13

COVER-SEAL

49016-1016

Unavailable

14

SCREW,4X52

92009-1033

$4.58

15

BULB,12V 60/55W,H4

92069-1002

Unavailable

16

BODY,HEAD LAMP

23005-1009

$79.15

17

WASHER SPRING 6MM

461F0600

Unavailable

18

BOLT-SMALL-FINE,10X45

113G1045

Unavailable

19

COLLAR,HEAD LIGHT

23052-011

Unavailable

20

DAMPER RUBBER

23066-021

Unavailable

21

DAMPER RUBBER

23066-022

Unavailable

22

NUT-HEX-FINE,10MM

315B1000

Unavailable

23

WASHER-PLAIN,10MM

411B1000

Unavailable

24

WASHER SPRING 10MM

461F1000

Unavailable

25

BOLT 6X35

110R0635

Unavailable

26

WASHER PLAIN 6MM

411B0600

Unavailable

27

WASHER SPRING 6MM

461F0600

Unavailable

28

NUT,HEAD LAMP FITTIN

92015-1061

$1.58

29

COLLAR

92027-1045

$4.37

30

DAMPER,RUBBER

92075-1123

$3.97
