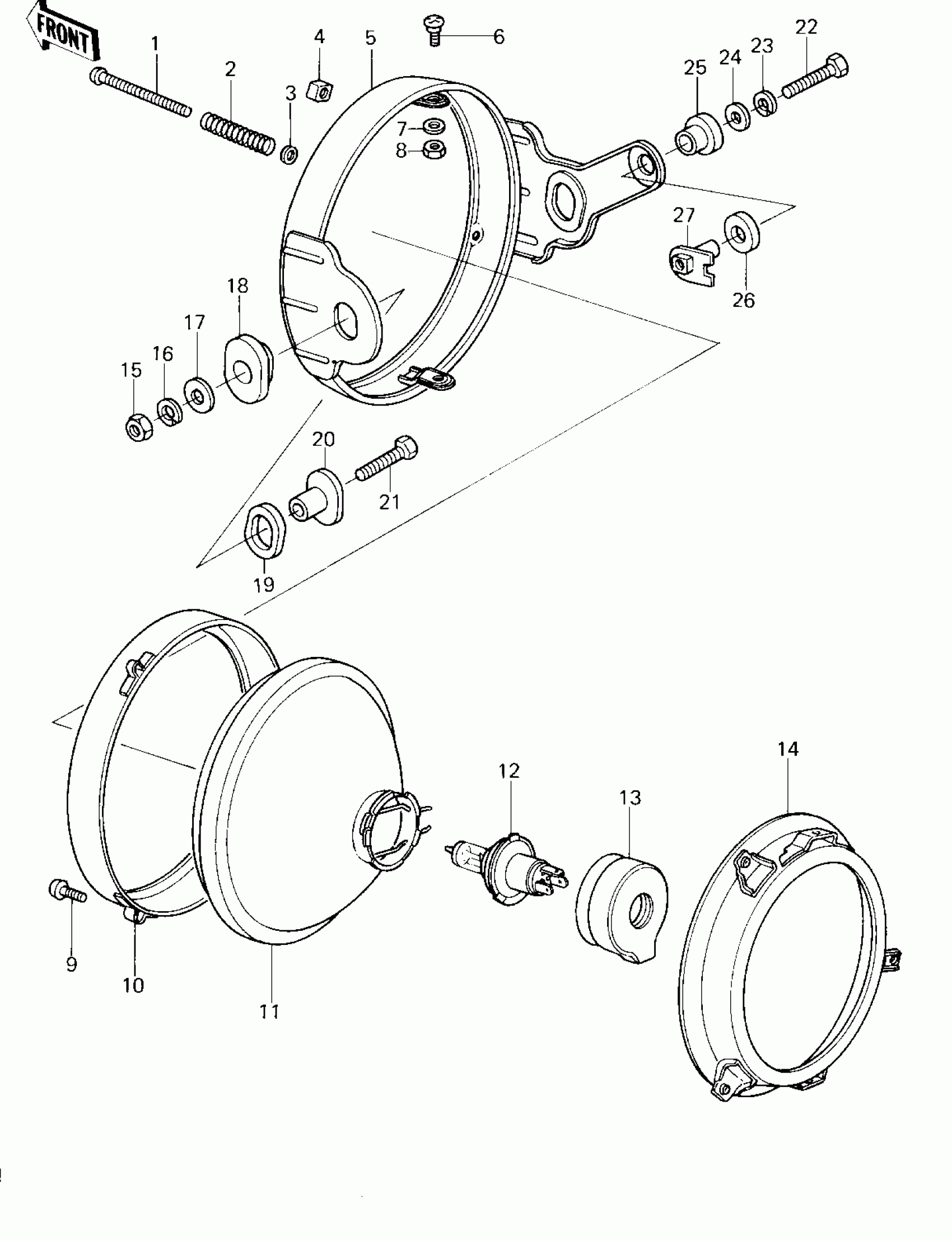

Kawasaki Z1R HEADLIGHT ('78 D1) Diagram

#

Description
Price

1

SCREW,4X52

92009-1033

$5.18

2

SPRING,FOCUS ADJUSTING

23014-005

$3.62

3

WASHER,4.1X8X0.8

23021-004

$2.91

4

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

5

RIM,HEAD LAMP

23006-1003

Unavailable

6

SCREW,PAN HEAD,5X12

23019-023

$5.43

7

WASHER,PLAIN,5MM

23021-012

$5.43

8

NUT,5MM

23020-023

Unavailable

9

SCREW-PAN-CROS

220B0312

$1.58

10

RING,HEAD LAMP MOUNT

23072-001

$44.17

11

LENS-COMP,"001-1970" MARK

23007-1009

Unavailable

12

BULB,12V 60/55W,H4

92069-1002

Unavailable

13

COVER-SEAL

49016-1016

Unavailable

14

RING,HEAD LAMP MOUNT

23074-001

$64.65

15

NUT-HEX-FINE,10MM

315B1000

$0.58

16

WASHER SPRING 10MM

461F1000

$0.67

17

WASHER-PLAIN,10MM

411B1000

$0.93

18

DAMPER RUBBER

23066-022

Unavailable

19

DAMPER RUBBER

23066-021

Unavailable

20

COLLAR,HEAD LIGHT

23052-011

Unavailable

21

BOLT-SMALL-FINE,10X45

113G1045

$3.98

22

BOLT 6X35

110R0635

Unavailable

23

WASHER SPRING 6MM

461F0600

$0.69

24

WASHER PLAIN 6MM

411B0600

$2.84

25

DAMPER,TAIL LAMP

92075-1004

$4.03

26

DAMPER,RUBBER

92075-310

$4.67

27

NUT,HEAD LAMP FITTIN

92015-1024

Unavailable
