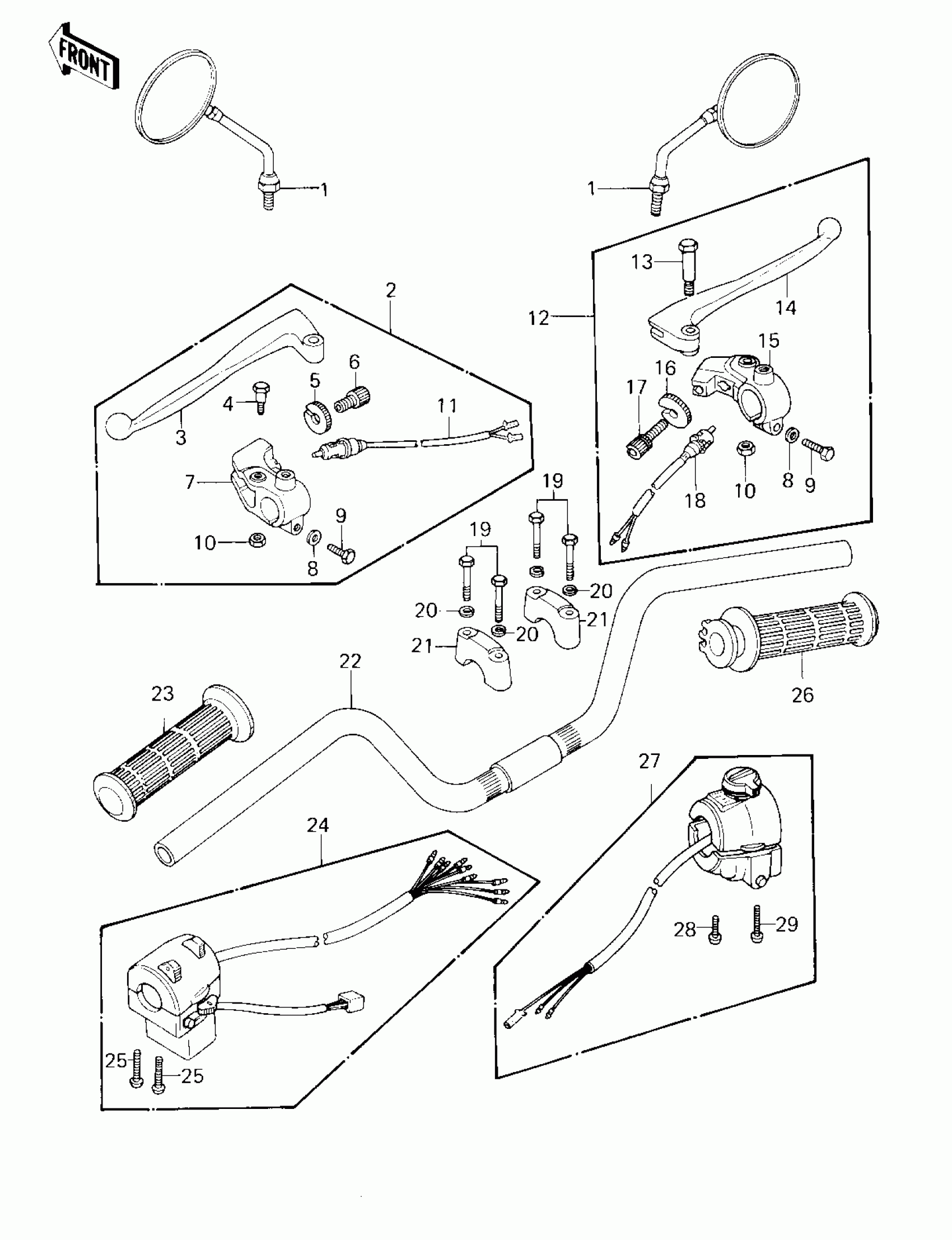

Kawasaki Z1R HANDLEBAR ('80 D3) Diagram

#

Description
Price

1

REAR VIEW MIRROR ASS

56001-1032

$80.05

2

LEVER ASSY,CLUTCH

46076-054

$104.73

3

LEVER-GRIP,CLUTCH

46092-023

$36.65

4

BOLT,HEX HEAD

92007-047

Unavailable

5

NUT,CABLE ADUST NUT

46056-007

Unavailable

6

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

7

HOLDER,CLUTCH LEVER

46094-019

$72.21

8

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

9

BOLT HEX HEAD 6X25

110N0625

Unavailable

10

NUT,LOCK,6MM

92019-008

$3.12

11

SWITCH,CLUTCH

27043-002

Unavailable

12

LEVER ASSY,CLUTCH

46076-1002

Unavailable

13

BOLT,CLUTCH LEVER

92001-1075

$8.03

14

LEVER,FRONT BRAKE

46092-1003

Unavailable

15

HOLDER,CLUTCH LEVER

13091-1010

Unavailable

16

NUT,CABLE ADJUST LOCK,8MM

46056-005

$6.75

17

SCREW,CABLE ADJUST

92009-1023

Unavailable

18

SWITCH,FR BRAKE LAMP

27021-004

$31.99

19

BOLT 8X38

92001-1405

$12.52

20

WASHER SPRING 8MM

461F0800

Unavailable

21

HOLDER-HANDLE,UPP

46012-008

$33.69

22

HANDLEBAR

46003-1027

Unavailable

23

RUBBER,L.H.GRIP

46075-1001

Unavailable

24

HOUSING ASSY,L.H

46091-1029

Unavailable

25

SCREW-PAN-CROS,5X25

220B0525

$3.24

26

GRIP ASSY,THROTTLE

46019-1004

Unavailable

27

HOUSING ASSY,R.H

46091-1050

Unavailable

28

SCREW PAN HEAD 5X30

220B0530

Unavailable

29

SCREW-PAN-CROS

220B0540

Unavailable
