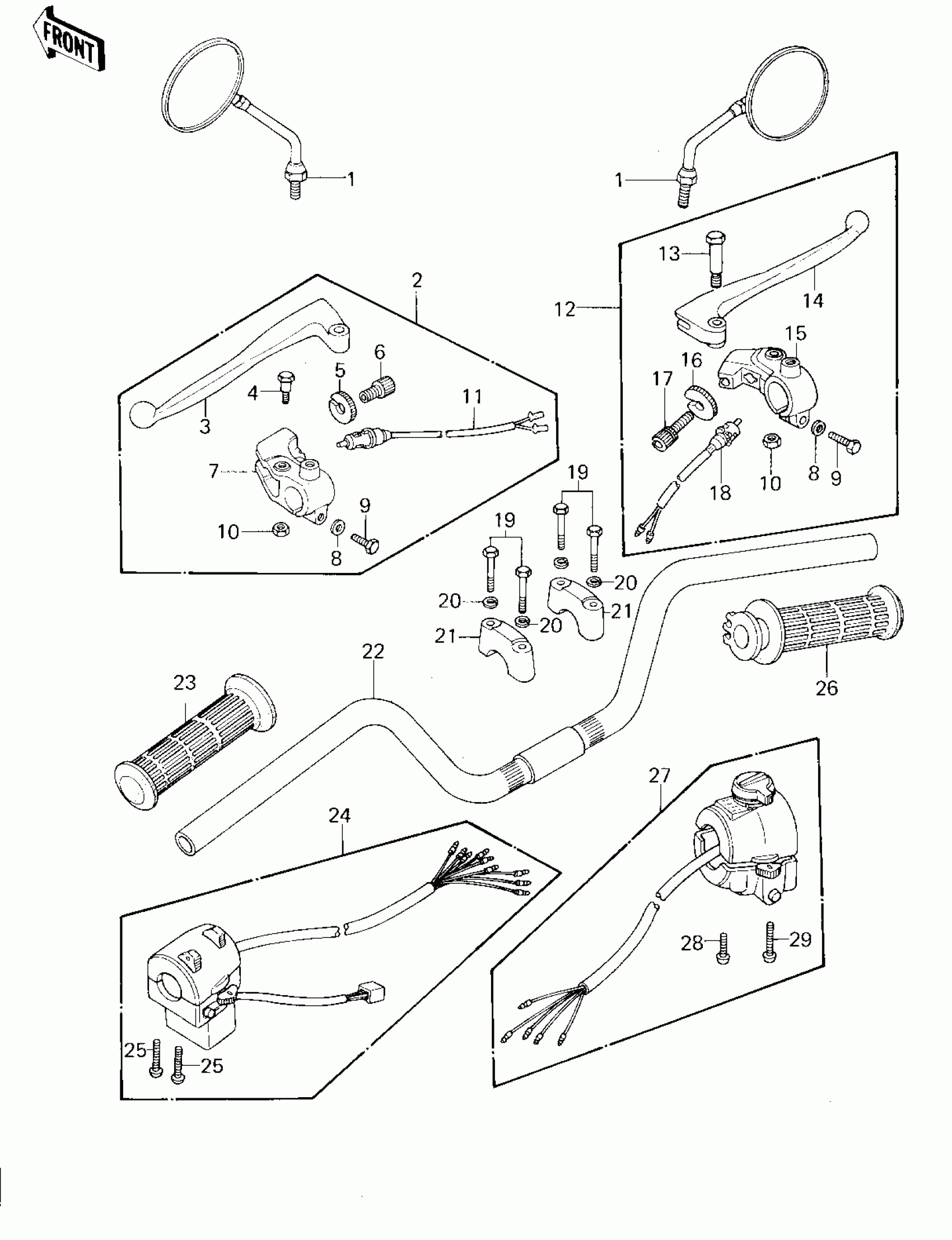

Kawasaki Z1R HANDLEBAR ('78 D1) Diagram

#

Description
Price

1

REAR VIEW MIRROR

56001-1011

Unavailable

2

LEVER ASSY,CLUTCH

46076-054

$102.73

3

LEVER-GRIP,CLUTCH

46092-023

$35.96

4

BOLT,HEX HEAD

92007-047

$13.77

5

NUT,CABLE ADUST NUT

46056-007

Unavailable

6

SCREW,CABLE ADJUST,8MM

46055-003

$16.33

7

HOLDER,CLUTCH LEVER

46094-019

$70.86

8

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

9

BOLT HEX HEAD 6X25

110N0625

$5.46

10

NUT,LOCK,6MM

92019-008

$4.26

11

SWITCH,CLUTCH

27043-002

$39.87

12

LEVER ASSY,CLUTCH

46076-1002

Unavailable

13

BOLT,CLUTCH LEVER

92001-1075

$8.19

14

LEVER,FRONT BRAKE

46092-1003

Unavailable

15

HOLDER,CLUTCH LEVER

13091-1010

Unavailable

16

NUT,CABLE ADJUST LOCK,8MM

46056-005

$8.86

17

SCREW,CABLE ADJUST

92009-1023

Unavailable

18

SWITCH,FR BRAKE LAMP

27021-004

$35.78

19

BOLT 8X38

92001-1405

$16.50

20

WASHER SPRING 8MM

461F0800

$0.40

21

HOLDER-HANDLE,UPP

46012-008

$37.74

22

HANDLEBAR

46003-1015

Unavailable

23

RUBBER,L.H.GRIP

46075-1001

$30.88

24

HOUSING ASSY,L.H

46091-1029

Unavailable

25

SCREW-PAN-CROS,5X25

220B0525

$3.67

26

GRIP ASSY,THROTTLE

46019-1004

Unavailable

27

HOUSING ASSY,R.H

46091-1028

Unavailable

27

HOUSING ASSY,R.H

46091-1034

$101.63

28

SCREW PAN HEAD 5X30

220B0530

$3.41

29

SCREW-PAN-CROS

220B0540

$3.41
