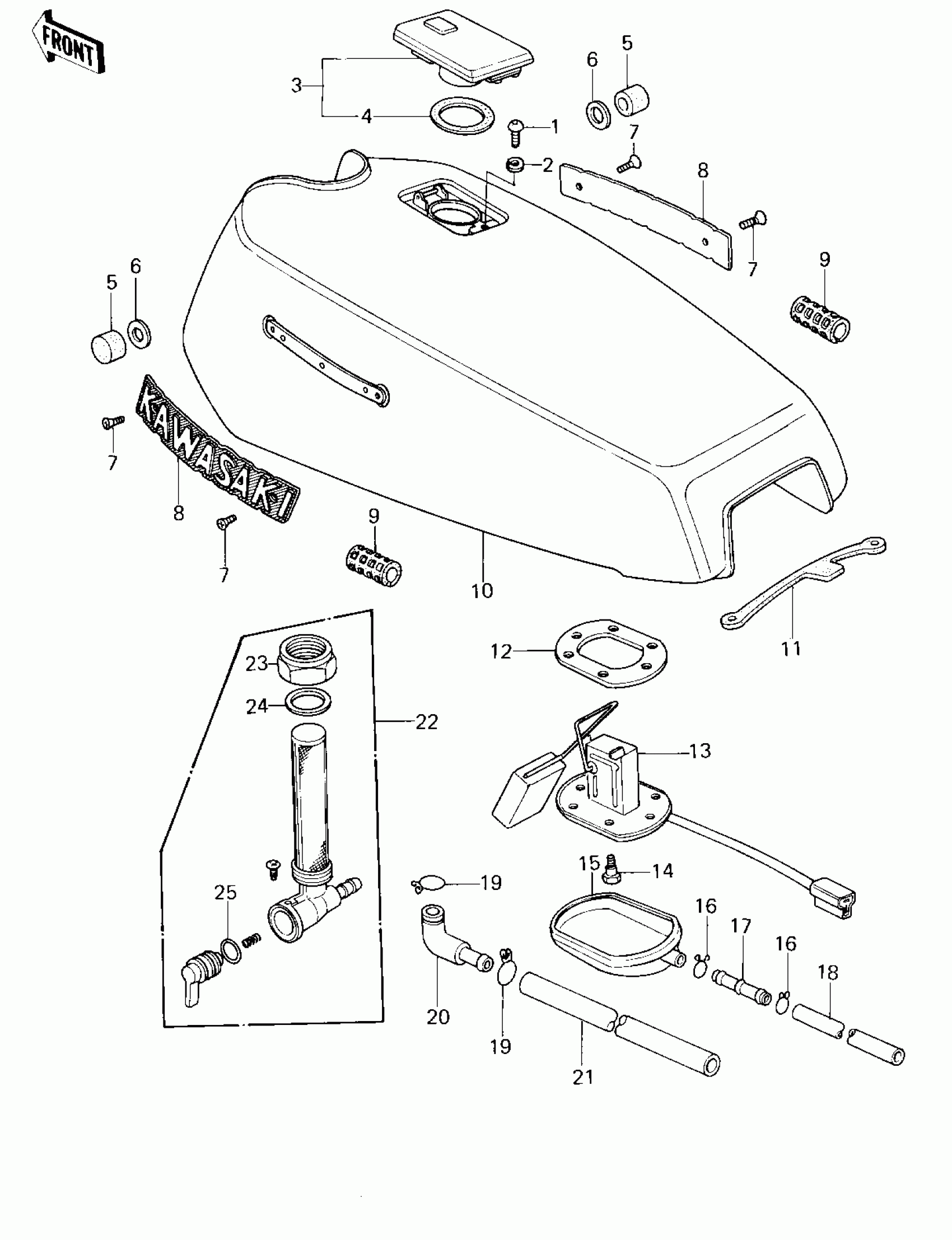

Kawasaki Z1R FUEL TANK ('78 D1) Diagram

#

Description
Price

1

SCREW PAN HEAD 5X10

220B0510

Unavailable

2

WASHER SPRING 5MM

461F0500

Unavailable

3

CAP ASSY,FUEL TANK

51048-1002

Unavailable

4

GASKET,FUEL TANK CAP

11009-1036

Unavailable

5

DAMPER,FUEL TANK

92075-125

$4.67

6

WASHER,10.5X26X2.3

92022-044

$2.99

7

SCREW-CSK-CROS

221C0306

$0.67

8

EMBLEM,FUEL TANK

56014-1006

$135.16

9

DAMPER,FUEL TANK

92075-084

$7.65

10

TANK-FUEL,M.S.SILVER

51001-1009-7W

$625.43

11

BAND,FUEL TANK

92072-042

$11.53

12

GASKET,FUEL GAUGE

11009-1037

Unavailable

13

GAUGE,FUEL

52005-1002

Unavailable

14

BOLT,FUEL GAUGE

92001-1069

$5.53

15

COVER

14025-1019

Unavailable

16

CLAMP,TUBE

92037-147

$5.61

17

PIPE

32032-1071

Unavailable

18

TUBE-RUBBER,7X10X800

702A07800

$10.11

19

CLAMP,RUBBER TUBE FI

92037-1058

$3.32

20

ELBOW

52014-1001

Unavailable

21

TUBE-RUBBER

703A09900

$16.95

22

TAP ASSY,FUEL

51023-1007

Unavailable

23

FUEL COCK JOINT NUT

51035-009

Unavailable

24

GASKET-FUEL COCK JNT.

92065-081

$4.27

25

O RING,10MM

670B2010

$1.13
