1978 Kawasaki Z1R Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1978 Kawasaki Z1R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

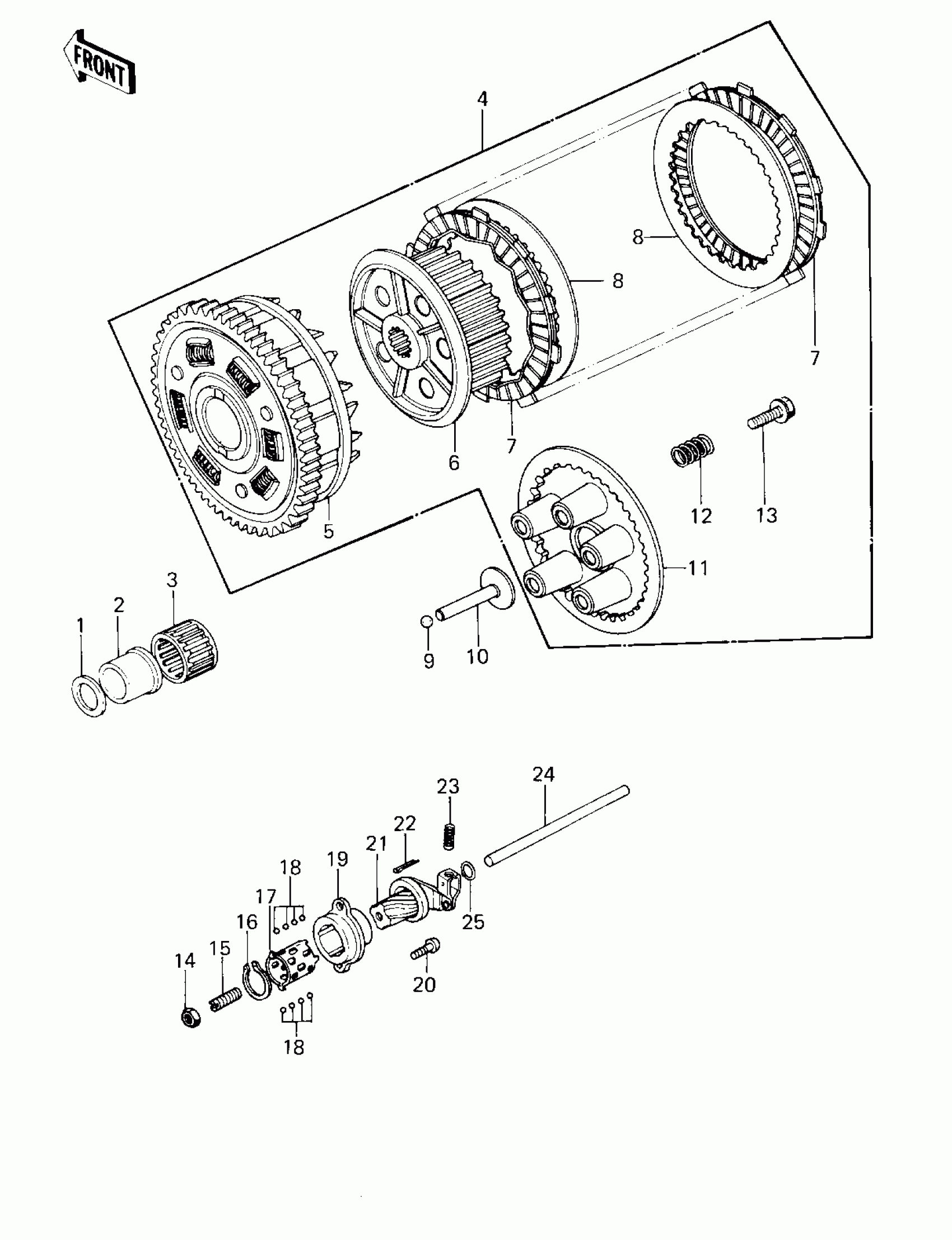

1978 Kawasaki Z1R Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPACER,25.5X47X2.5

92026-022

1
Out of stock

2

BUSHING,CLUTCH

92028-135

1
Out of stock

3

BEARING-NEEDLE,KTV323723

92046-028

1
Out of stock

4

CLUTCH-ASSY

13081-1014

1
Out of stock

5

CLUTCH-ASSY

13095-036

1
Out of stock

6

CLUTCH-ASSY

13081-1367

1
Out of stock

7

PLATE,CLUTCH FRICTION

13088-030

1
Out of stock

8

PLATE,CLUTCH STEEL

13089-022

1
Out of stock

9

BALL-STEEL,3/8"

600A1200

1
Out of stock

10

PUSHER,CLUTCH SPRG P

13116-022

1
Out of stock

11

PLATE,CLUTCH SPRING

13187-006

1
Out of stock

12

SPRING,CLUTCH

92081-1033

1
Out of stock

13

BOLT,FLANGED,6X18

92001-1066

1
Out of stock

14

NUT-HEX-SMALL,8MM

318B0800

1
Out of stock

15

SCREW,SLOTTED,8X25

92014-014

1
Out of stock

16

CIRCLIP-TYPE-C,15MM

480J1500

1
Out of stock

17

RETAINER

13197-004

1
Out of stock

18

BALL,STEEL,1/8"

600A0400

1
Out of stock

19

OUTER,CLUTCH RELEASE

13118-011

1
Out of stock

20

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

21

INNER,CLUTCH RELEASE

13102-019

1
Out of stock

22

PIN-COTTER,1.6X15

550D1615

1
Out of stock

23

SPRING,CLUTCH RELEASE

92081-069

1
Out of stock

24

PUSH ROD,CLUTCH

13116-021

1
Out of stock

25

O RING,7MM

670B1507

1
Out of stock
