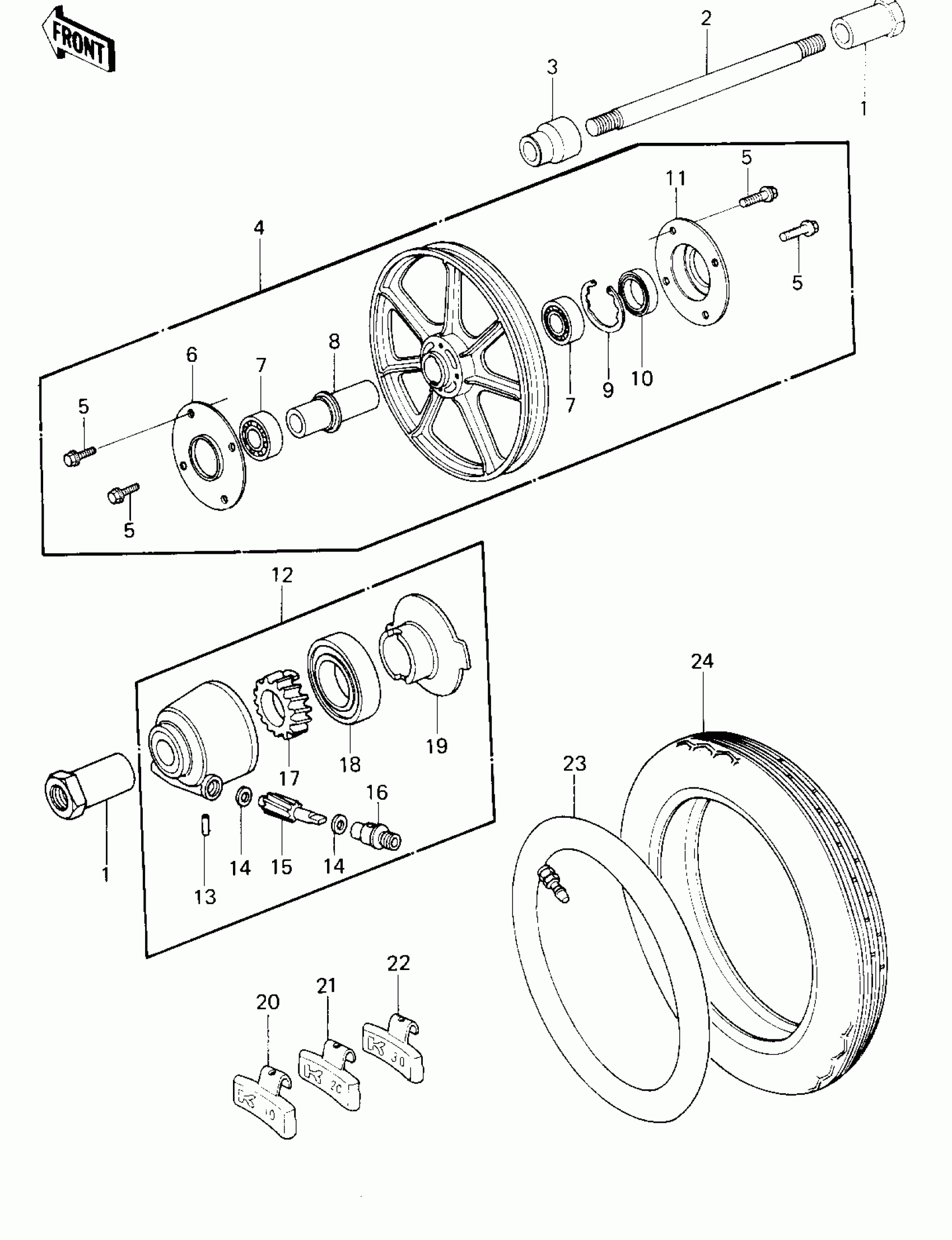

Kawasaki Z1R FRONT WHEEL/TIRE/HUB ('80 D3) Diagram

#

Description
Price

1

COLLAR,FRONT AXLE

41069-033

Unavailable

2

AXLE,FRONT

41068-049

$135.58

3

COLLAR,FRONT AXLE

41069-032

Unavailable

4

SOLID WHEEL ASSY,FRT

41073-1068

$836.65

5

BOLT,FLANGED,10X30

92001-1173

$8.42

6

DUST COVER

41042-014

Unavailable

7

BEARING-BALL,#6203ZC3

601B6203Z

$26.08

8

COLLAR,BRG

41039-028

Unavailable

9

RING-SNAP,40MM

92033-1040

$4.45

10

OIL SEAL

654A254008

$24.19

11

DUST COVER

41042-015

Unavailable

12

GEAR BOX ASSY,SPEEDO

41078-1012

$174.89

13

PIN,SPRING

41082-001

$3.53

14

WASHER,5.1X9X0.4

41063-001

$4.17

15

PINION,SPEEDOMETER

41060-017

Unavailable

16

BUSHING,SPEEDOMETER

92028-1066

$8.59

17

GEAR-METER SCREW,26T

41059-026

$43.35

18

SEAL-OIL,BJN30427-C3

92049-1057

$7.08

19

RECEIVER,GEAR

41064-013

Unavailable

20

BALANCER-WHEEL,10G

41075-1011

Unavailable

21

BALANCER-WHEEL,20G

41075-1012

Unavailable

22

BALANCER-WHEEL,30G

41075-1013

Unavailable

23

*** N.L.A.*** (Canada)

41022-030

Unavailable

24

TIRE 325V-19 F6B

41002-1072

$150.61
