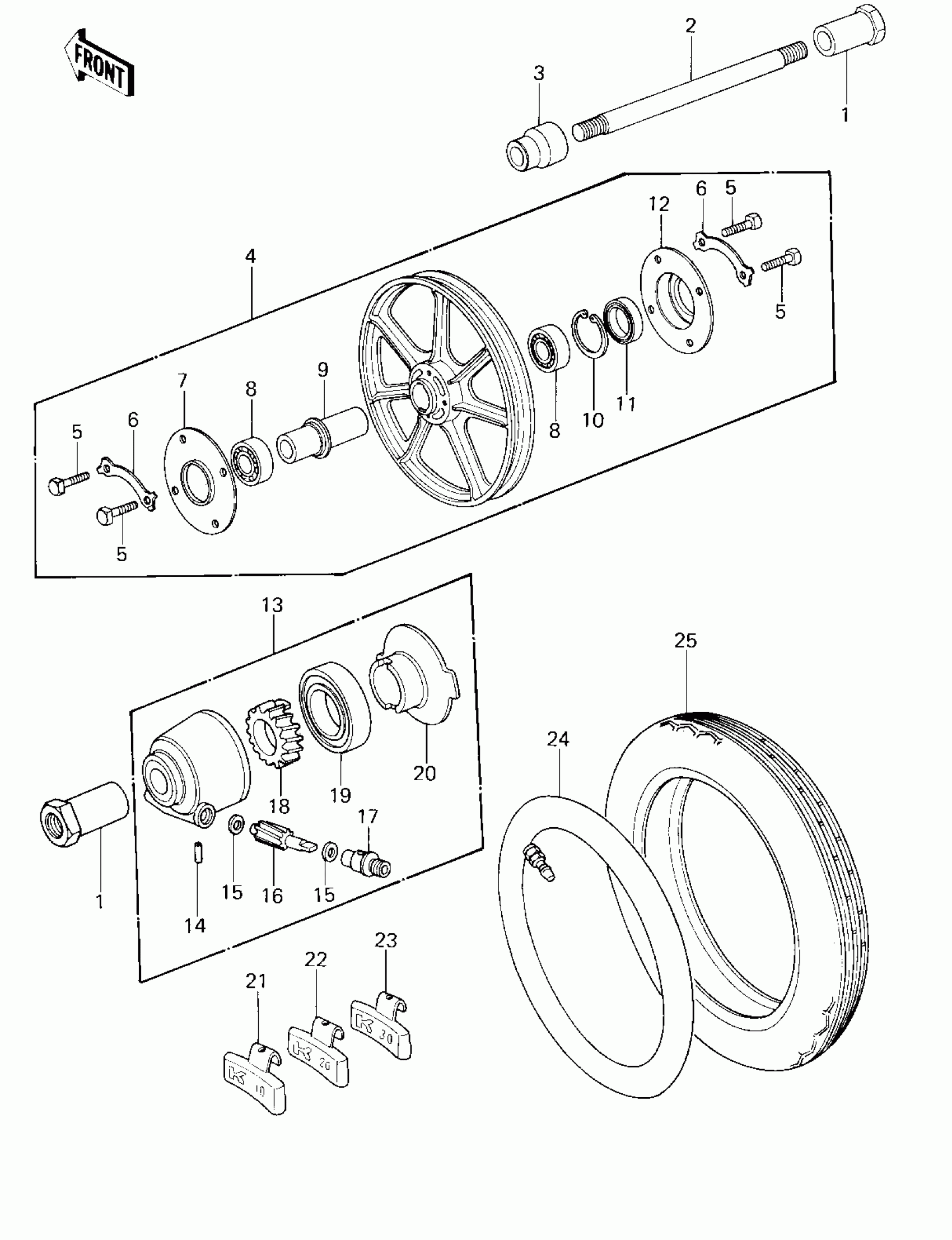

Kawasaki Z1R FRONT WHEEL/TIRE/HUB ('78 D1) Diagram

#

Description
Price

1

COLLAR,FRONT AXLE

41069-033

Unavailable

2

AXLE,FRONT

41068-049

$132.80

3

COLLAR,FRONT AXLE

41069-032

$26.55

4

SOLID WHEEL ASSY,FRN

41073-1037

$1,077.58

5

BOLT

92001-158

$3.41

6

WASHER,LOCK

92088-023

$11.60

7

DUST COVER

41042-014

Unavailable

8

BEARING-BALL,#6203C3

601B6203

$14.12

9

COLLAR,BRG

41039-028

Unavailable

10

RING-SNAP,40MM

92033-1040

$5.90

11

OIL SEAL

654A254008

$25.75

12

DUST COVER

41042-015

Unavailable

13

GEAR BOX ASSY

41078-1004

$205.57

14

PIN,SPRING

41082-001

$3.92

15

WASHER,5.1X9X0.4

41063-001

$4.69

16

PINION,SPEEDOMETER

41060-017

Unavailable

17

BUSHING,SPEEDOMETER CABLE

41062-005

$19.48

18

GEAR,SPEEDOMETER

41060-1010

$27.36

19

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

20

RECEIVER,GEAR

41064-013

Unavailable

21

BALANCER-WHEEL,10G

41075-1011

Unavailable

22

BALANCER-WHEEL,20G

41075-1012

Unavailable

23

BALANCER-WHEEL,30G

41075-1013

Unavailable

24

TUBE 300/325/360-18

41022-028

$41.44

25

TIRE 350H-18 F6

41002-1027

$105.99
