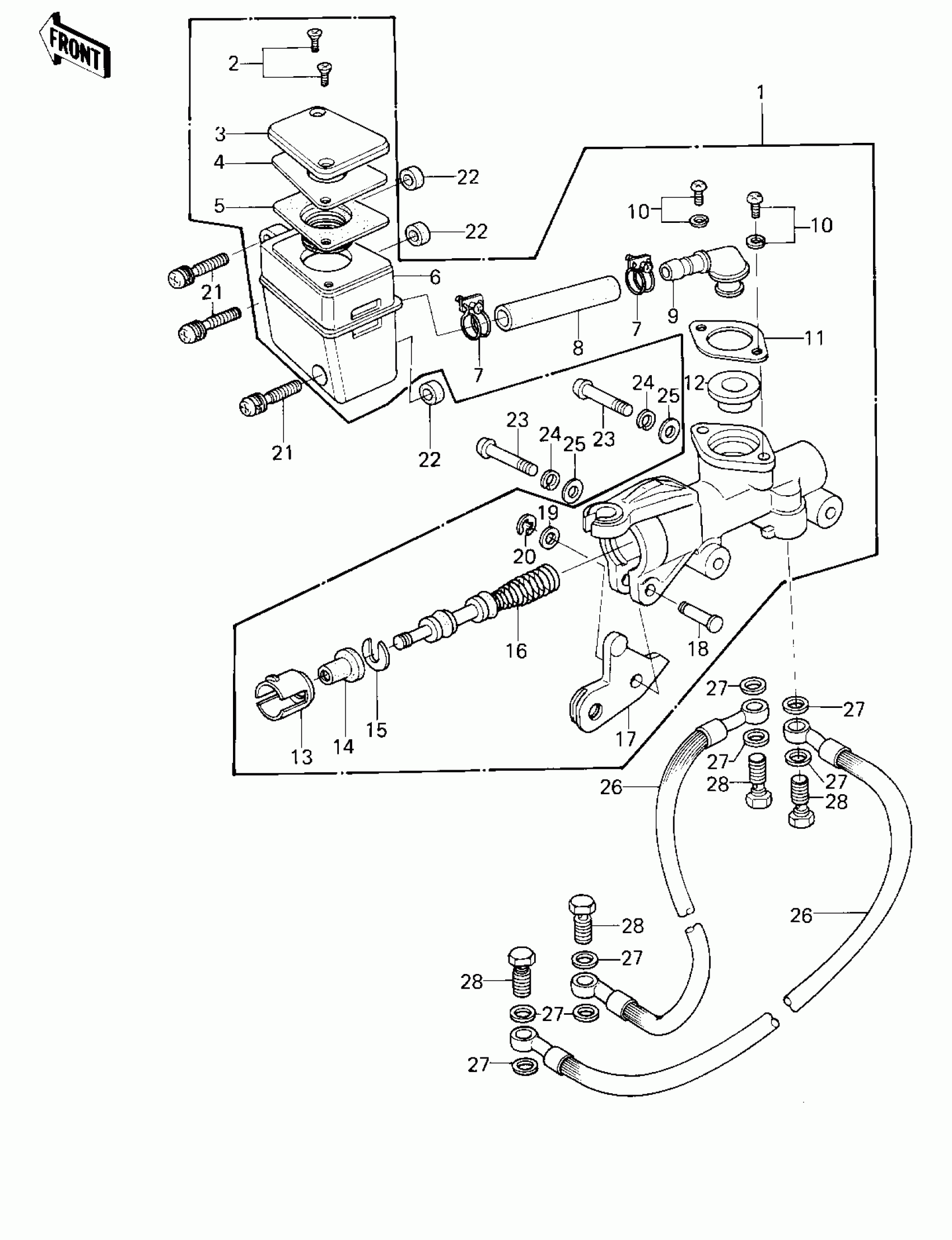

Kawasaki Z1R FRONT MASTER CYLINDER ('78 D1) Diagram
#
Description
Price
1
CYLINDER ASSY,MASTER
43015-1012
Unavailable
2
SCREW-CSK-CROS,5X12,BLACK
92001-1055
$5.84
3
CAP,BRAKE
43026-1004
$42.60
4
PLATE,DIAPHRAGM
43027-1003
Unavailable
5
DIAPHRAGM
43028-1003
$22.91
6
RESERVOIR
43078-1005
Unavailable
7
CLAMP
92033-1007
Unavailable
8
HOSE,BRAKE
43059-1009
Unavailable
9
CONNECTOR
13159-1003
Unavailable
10
BOLT,PLATE FITTING
92001-1081
Unavailable
11
PLATE
13169-1081
Unavailable
12
DUST SEAL
43049-1005
Unavailable
13
LINER,PISTON
14008-1007
Unavailable
14
COVER-SEAL,BRAKE PISTON
49016-1010
Unavailable
15
STOPPER-BRAKE,PISTON
43022-1001
Unavailable
16
PISTON ASSY
43020-1008
Unavailable
17
LEVER,BRAKE
43001-1016
$21.53
18
PIN,BRAKE LEVER FITT
92043-1017
$6.23
19
WASHER,BRAKE LEVER F
92022-1042
$2.87
20
CIRCLIP
92033-1006
Unavailable
21
SCREW,PAN HEAD,6X28
92009-1031
Unavailable
22
DAMPER RUBBER
92075-1038
Unavailable
23
SCREW PAN HEAD 6X45
220B0645
$1.71
24
WASHER SPRING 6MM
461F0600
$0.69
25
WASHER PLAIN 6MM
411B0600
$2.84
26
HOSE,CALIPER BRAKE
43059-033
Unavailable
27
WASHER,10.5X15X1.5
43067-001
$2.15
28
BOLT,OIL,L=23
92002-1888
$5.48
