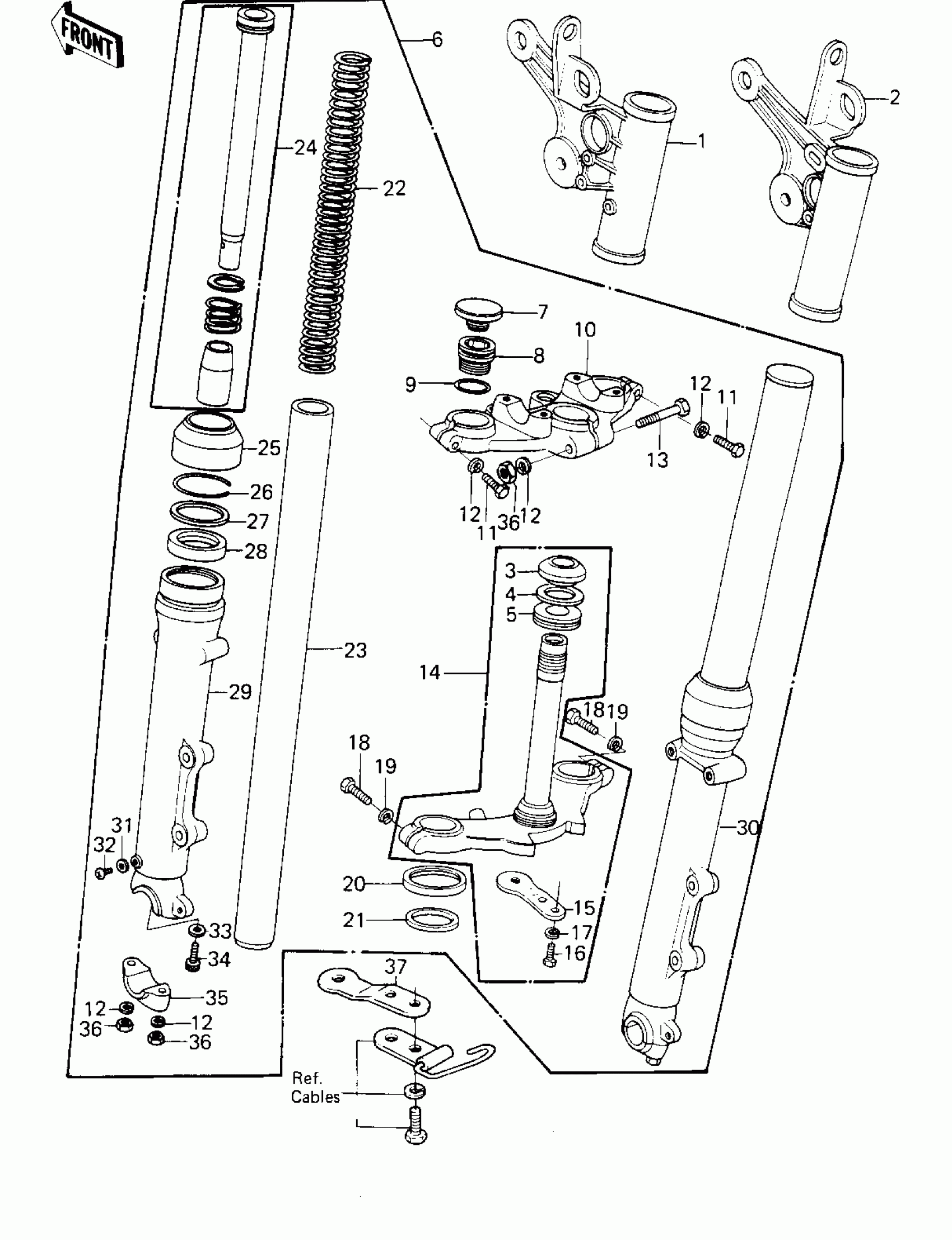

Kawasaki Z1R FRONT FORK ('80 D3) Diagram

#

Description
Price

1

COVER,L.H.FORK

44033-1011

Unavailable

2

COVER,R.H FORK

44033-1012

Unavailable

3

RACE,STEERING STEM BEARING

92047-012

$14.20

4

WASHER,30.5X50X0.6

92022-231

$4.17

5

SEAL-OIL,STEERING STEM

92056-003

$6.75

6

FORK-FRONT

44001-1211

Unavailable

7

CAP,RUBBER

11012-1017

$8.74

8

CAP,FORK SPRING

44029-1003

Unavailable

9

"O" RING,FORK TOP

92055-1009

Unavailable

10

HEAD,STEERING STEM

44039-1024

$247.20

11

BOLT,8X40

92001-1082

Unavailable

12

WASHER SPRING 8MM

461F0800

Unavailable

13

BOLT-HEX HEAD,8X55

44041-038

Unavailable

14

STEM,STEELING

44037-1028

$391.70

15

BRACKET

11034-1126

Unavailable

16

BOLT,6X14

92001-1083

$1.64

17

WASHER SPRING 6MM

461F0600

Unavailable

18

BOLT,HEX HEAD,12X40

92001-1144

$3.76

19

WASHER-SPRING,12MM

461F1200

Unavailable

20

WASHER,FORK COVER

44043-049

Unavailable

21

GASKET,FORK COVER

44045-038

Unavailable

22

SPRING,FORK

44026-1039

Unavailable

23

TUBE,FORK INNER

44013-1003

Unavailable

24

CYLINDER-FORK

44022-1011

$82.78

25

DUST SHEILD,FORK

44010-032

$35.15

26

CIRCLIP-OIL SEAL FIT

44044-012

$31.04

27

WASHER-OIL SEAL FIT

44043-044

$12.86

28

OIL SEAL,FORK

44009-024

$18.72

29

TUBE,LH,FORK OUTER

44005-1032

$389.33

30

TUBE,RH,FORK OUTER

44006-1032

$389.33

31

GASKET,FORK DRAIN PLUG

44045-002

$3.95

32

SCREW PAN HEAD 4X8

220B0408

Unavailable

33

GASKET

44045-057

$3.71

34

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

35

HOLDER,FRONT AXLE

44063-014

Unavailable

36

NUT,LOCK,8MM

92015-1124

$4.10

37

BRACKET

11034-1126

Unavailable
