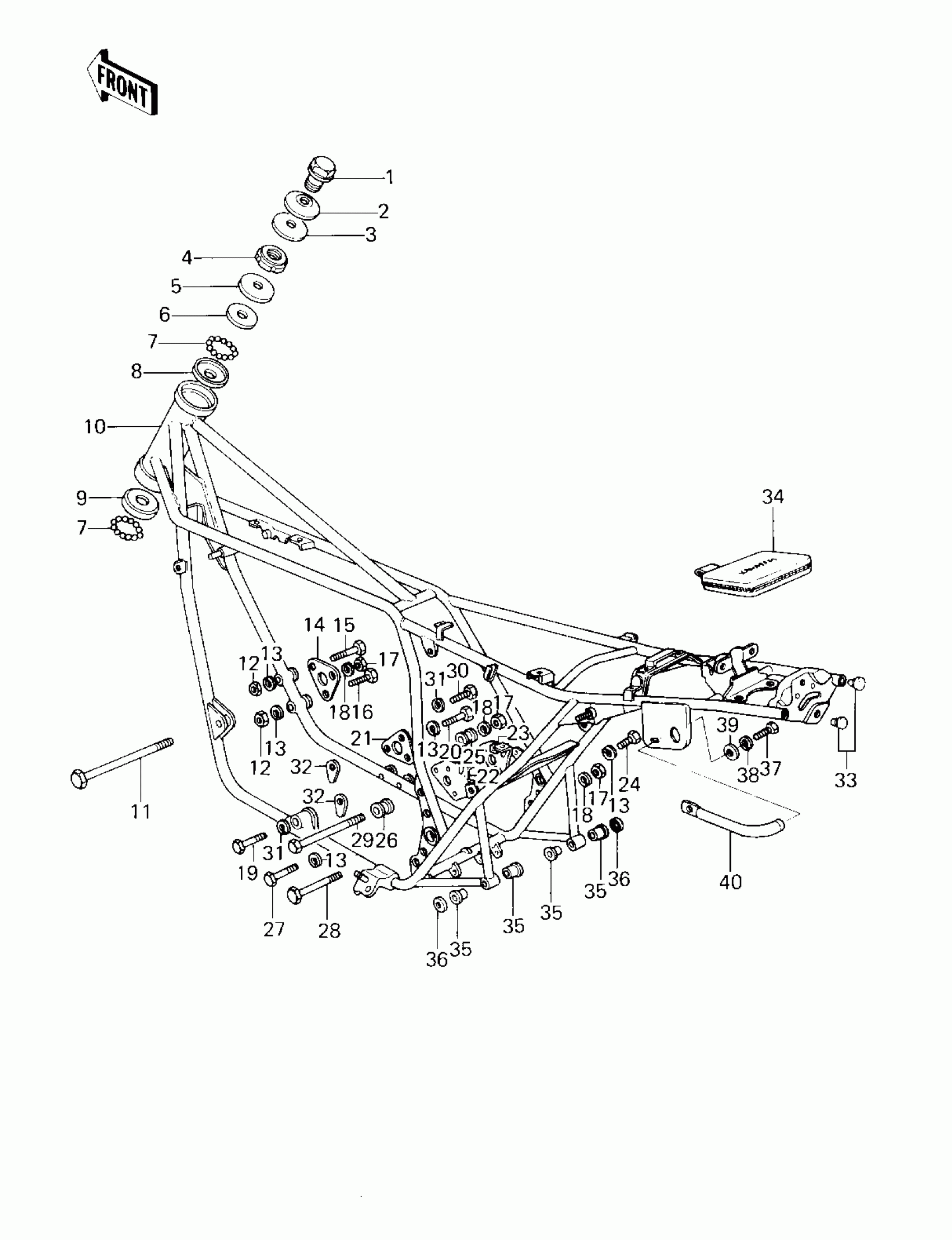

Kawasaki Z1R FRAME/FRAME FITTINGS ('80 D3) Diagram

#

Description
Price

1

BOLT,16X25.5

92007-031

Unavailable

2

WASHER,16X41X4

92022-230

$11.42

3

WASHER,WAVE

46100-003

Unavailable

4

NUT,30MM

92090-007

$8.91

5

CAP,STEERING STEM

46098-016

$5.66

6

RACE,STEERING STEM BEARING

92047-011

$13.85

7

BALL-STEEL,1/4

600A0800

$0.59

8

RACE,STEERING STEM BEARING

92048-006

$8.83

9

RACE,STEERING STEM BEARING

92048-008

$12.16

10

FRAME

32002-1103

$1,017.95

11

BOLT,ENGINE MOUNTING

92091-022

Unavailable

12

NUT,8MM

311B0800

Unavailable

13

WASHER SPRING 8MM

461F0800

Unavailable

14

PLATE,ENG MOUNT FRON

32030-025

Unavailable

15

BOLT,HEX HEAD,8X65

92001-1236

$1.73

15

BOLT-FLANGE

92001-1582

Unavailable

16

BOLT,FLANGED,8X60

92001-1581

$3.90

16

BOLT,FLANGED,8X60

92001-1581

$3.90

17

NUT,LOCK,10MM

92019-021

$4.59

18

WASHER SPRING 10MM

461F1000

Unavailable

19

BOLT,HEX HEAD,12X55

92001-1262

Unavailable

20

BOLT-SMALL-UPSET,8X18

115G0818

Unavailable

21

PLATE,ENG MOUNT LOWER

32030-026

$17.49

22

BRACKET,REAR ENGINE

32029-1023

$13.63

23

BRACKET,REAR ENGINE

32029-1024

$14.68

24

BOLT,HEX HEAD,8X40

92001-1230

Unavailable

24

BOLT

92001-1578

$6.54

25

COLLAR,ENG MOUNTING

92027-160

Unavailable

26

COLLAR,ENG MOUNTING

92027-159

$26.86

27

BOLT,FLANGED,8X35

92001-1577

Unavailable

27

BOLT,FLANGED,8X35

92001-1577

Unavailable

28

BOLT,ENGINE MOUNTING

92003-099

Unavailable

29

BOLT,ENGINE MOUNTING

92091-023

Unavailable

30

BOLT,HEX HEAD,12X70

92001-1265

Unavailable

31

WASHER-SPRING,12MM

461F1200

Unavailable

32

NUT,12MM

92016-045

$24.03

33

PLUG,FRAME

92066-1018

$4.75

34

BAG

56008-1008

Unavailable

35

BUSHING,MUFFLER FITT

92092-010

$12.27

36

WASHER,PLAIN

92022-328

$4.81

37

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

38

WASHER SPRING 8MM

461F0800

Unavailable

39

WASHER PLAIN 8MM

410B0800

Unavailable

40

GRIP,FRAME

32109-1004

Unavailable
