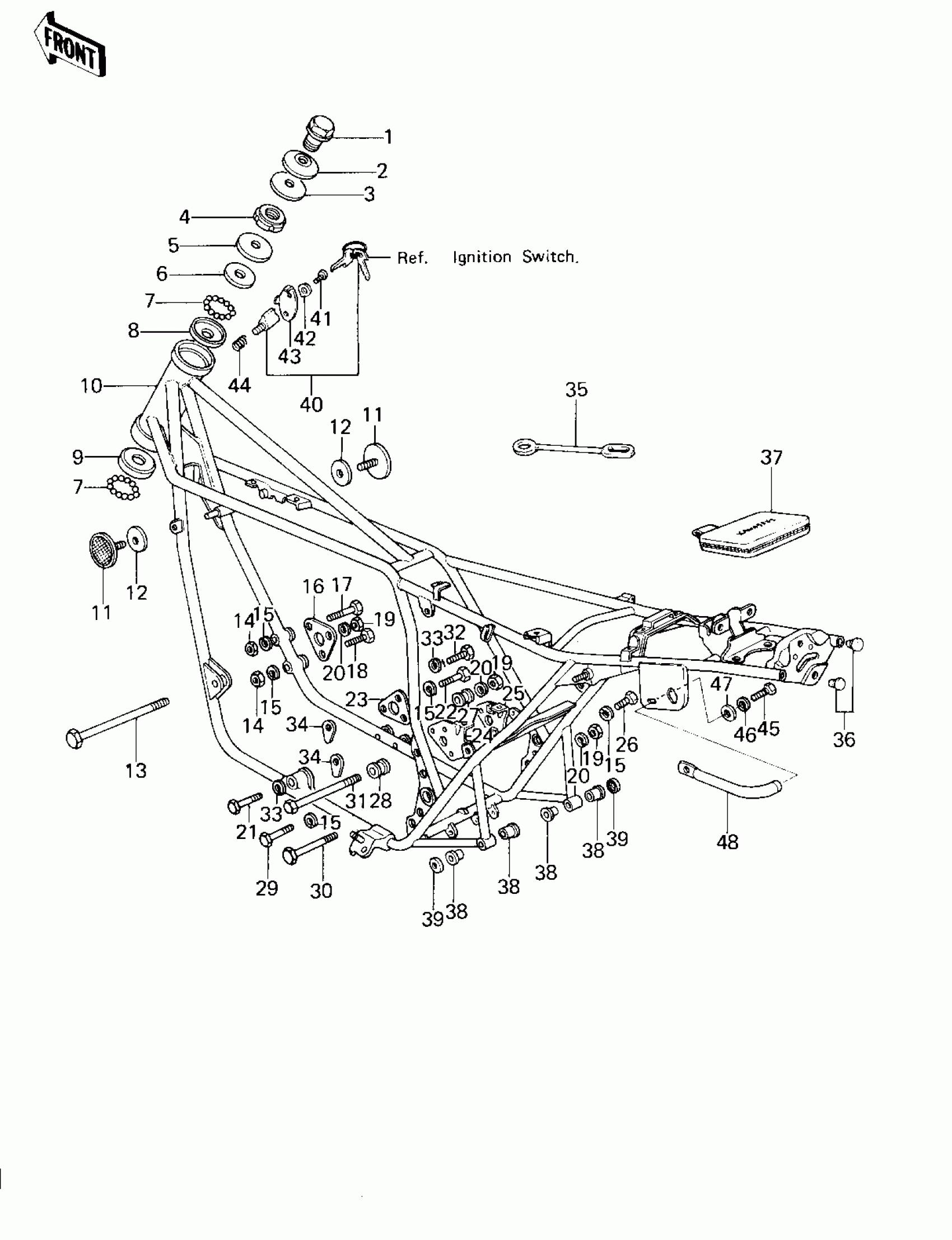

Kawasaki Z1R FRAME/FRAME FITTINGS ('78 D1) Diagram
#
1
BOLT,16X25.5
92007-031
Unavailable
2
WASHER,16X41X4
92022-230
$11.93
3
WASHER,WAVE
46100-003
$11.39
4
NUT,30MM
92090-007
$11.71
5
CAP,STEERING STEM
46098-016
$6.51
6
RACE,STEERING STEM BEARING
92047-011
$14.60
7
BALL-STEEL,1/4
600A0800
$0.62
8
RACE,STEERING STEM BEARING
92048-006
$11.61
9
RACE,STEERING STEM BEARING
92048-008
$16.02
10
FRAME
32002-1030
$1,155.28
11
REFLECTOR-REFLEX,FR
28012-016
$23.25
12
DAMPER,REFLECTOR
92094-011
$4.60
13
BOLT,ENGINE MOUNTING
92091-022
Unavailable
14
NUT,8MM
311B0800
$0.67
15
WASHER SPRING 8MM
461F0800
$0.40
16
PLATE,ENG MOUNT FRON
32030-025
$21.66
17
BOLT-FLANGE
92001-1582
Unavailable
18
BOLT,HEX HEAD,8X59
110G0859
Unavailable
19
NUT,LOCK,10MM
92019-021
$6.11
20
WASHER SPRING 10MM
461F1000
$0.67
21
BOLT,HEX HEAD,12X55
92001-1262
Unavailable
22
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
23
PLATE,ENG MOUNT LOWER
32030-026
$18.71
24
BRACKET,REAR ENGINE
32029-1023
$14.65
25
BRACKET,REAR ENGINE
32029-1024
$15.73
26
BOLT
110G0840
$7.62
27
COLLAR,ENG MOUNTING
92027-160
Unavailable
28
COLLAR,ENG MOUNTING
92027-159
$29.02
29
BOLT,FLANGED,8X35
92001-1577
Unavailable
30
BOLT,ENGINE MOUNTING
92003-099
Unavailable
31
BOLT,ENGINE MOUNTING
92091-023
Unavailable
32
BOLT,HEX HEAD,12X70
92001-1265
Unavailable
33
WASHER-SPRING,12MM
461F1200
$0.96
34
NUT,12MM
92016-045
$25.59
35
CLAMP,OVER FLOW PIPE
92037-134
$11.50
36
PLUG,FRAME
92066-1018
$5.38
37
BAG
56008-1008
Unavailable
38
BUSHING,MUFFLER FITT
92092-010
$16.18
39
WASHER,PLAIN
92022-328
$5.48
40
LOCK-ASSY,STEERING
27016-5009
Unavailable
41
SCREW,3.51MM
92008-007
$4.11
42
WASHER,WAVE
92097-003
$4.50
43
CAP,STEERING LOCK
11012-1134
$6.87
44
SPRING,STEERING LOCK
27032-001
$5.25
45
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
46
WASHER SPRING 8MM
461F0800
$0.40
47
WASHER PLAIN 8MM
410B0800
$0.93
48
GRIP,FRAME
32109-1004
Unavailable
