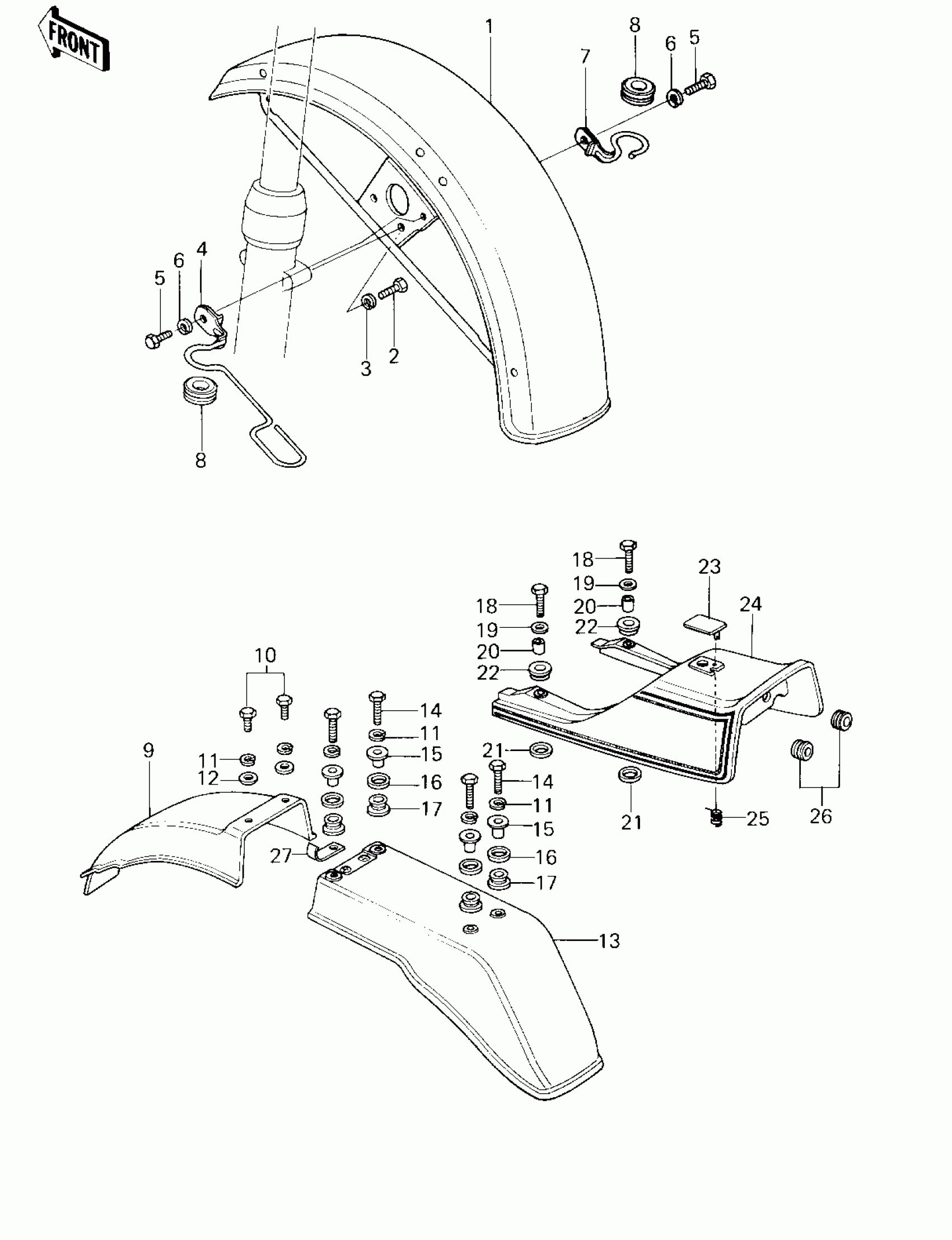

Kawasaki Z1R FENDERS/SEAT COVER ('78 D1) Diagram
#
Description
Price
1
FENDER-FR,M.S.SILVER
35001-1021-7W
Unavailable
2
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
3
WASHER SPRING 8MM
461F0800
$0.40
4
CLAMP,CABLE
92037-1116
Unavailable
5
BOLT-UPSET,6X12
112G0612
$1.45
6
WASHER SPRING 6MM
461F0600
$0.69
7
CLAMP,FRNT BRK HOSE
92037-1054
Unavailable
8
GROMMET,HOSE CLAMP
43064-006
$4.31
9
FENDER-RR
35022-154
Unavailable
10
BOLT-UPSET 6X14
112B0614
Unavailable
11
WASHER SPRING 6MM
461F0600
$0.69
12
WASHER PLAIN
92022-024
$3.65
13
FENDER-RR
35022-1040
Unavailable
14
BOLT-UPSET
112G0630
$1.36
15
COLLAR,L=13.1
92027-251
Unavailable
16
DAMPER,FEMALE
92075-175
$4.39
17
RUBBER,FENDER COVER
92075-174
$4.78
18
BOLT-UPSET
112G0625
$3.62
19
WASHER,7X24X1.6
92022-228
$3.92
20
COLLAR
92027-241
$6.57
21
DAMPER,FEMALE
92075-175
$4.39
22
RUBBER,FENDER COVER
92075-174
$4.78
23
COVER,SEAT LOCK
14025-1025
Unavailable
24
COVER,SEAT,M.S.SILVE
14025-1018-7W
Unavailable
25
SPRING
92081-1049
Unavailable
26
DAMPER RUBB TANK FRNT
92075-013
$5.47
27
CLAMP,WIRING HARNESS
21126-008
$4.73
