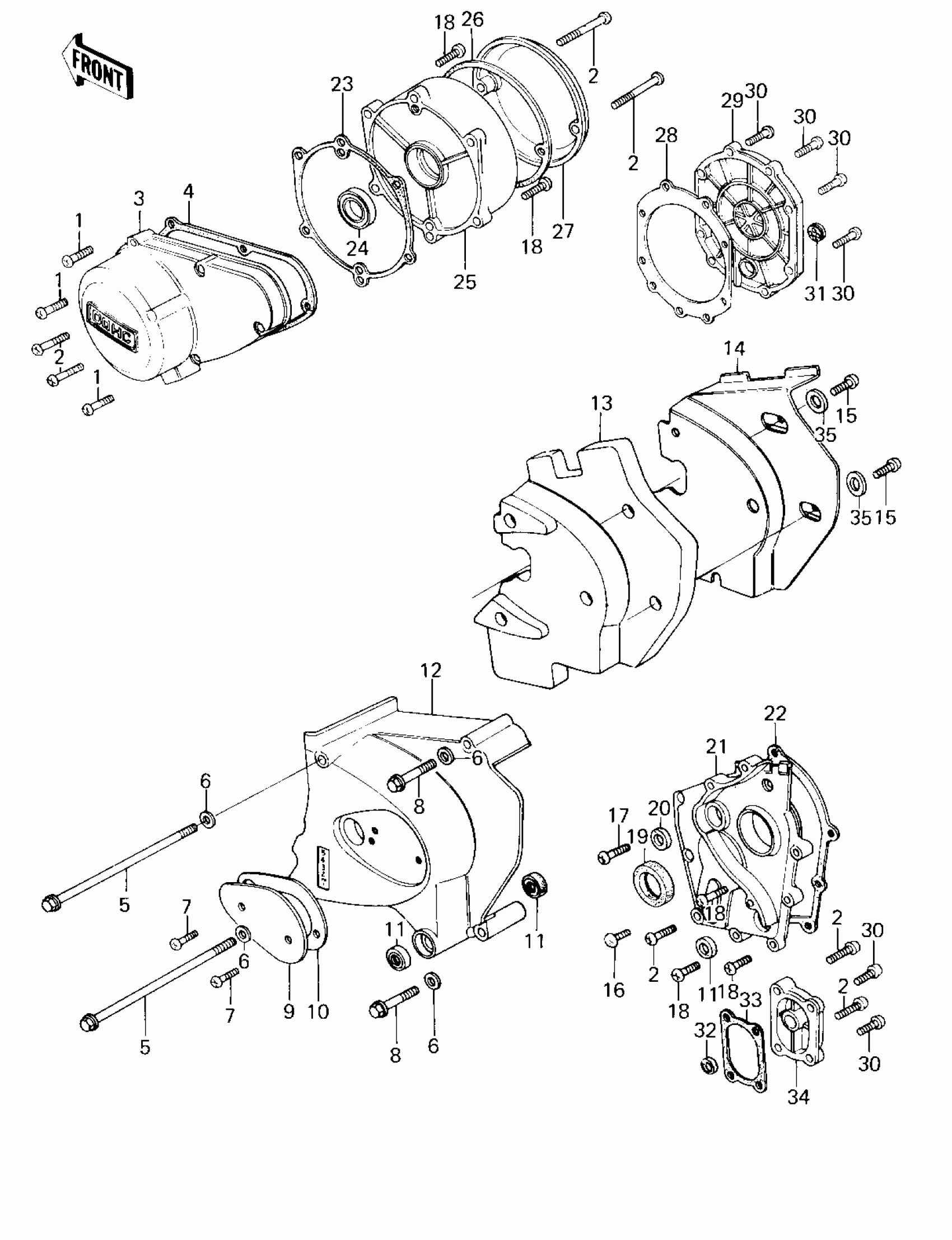

Kawasaki Z1R ENGINE COVERS ('78 D1) Diagram
#
Description
Price
1
SCREW PAN HEAD 6X30
220B0630
$3.41
2
SCREW PAN HEAD 6X40
220B0640
Unavailable
3
COVER,L.H ENGINE
14031-100-80
Unavailable
4
GASKET,GENERATOR COVER
11060-1075
Unavailable
5
BOLT-UPSET,6X125
112G06125
$6.60
6
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
7
SCREW-PAN-CROS,6X16
220B0616
$2.84
8
BOLT,6X70
110G0670
Unavailable
9
COVER,OIL PUMP
14026-012
Unavailable
10
GASKET,OIL PUMP,COVER
14045-015
Unavailable
11
SEAL-OIL,SB12205
92049-004
$9.58
12
COVER,FRONT CHAIN
14026-039-80
Unavailable
13
COVER,FRONT CHAIN
92075-314
$87.15
14
COVER,SOUND ARRESTER
14024-012
Unavailable
15
SCREW PAN HEAD 6X10
220B0610
$3.14
16
SCREW-PAN-CROS,6X60
220B0660
$1.79
17
SCREW PAN HEAD 6X28
220B0628
$3.41
18
SCREW PAN HEAD 6X22
220B0622
$3.71
19
SEAL-OIL,SC325210
92050-024
$8.17
20
OIL SEAL,TC7187
92050-048
$25.59
21
COVER,TRANSMISSION
14025-1106
Unavailable
22
GASKET,MISSION COVER
14058-004
$37.40
23
GASKET,RH ENGINE COVER
11060-1071
Unavailable
24
OIL SEAL,S25407R
92050-047
$34.44
25
COVER,R.H ENGINE
14032-083
Unavailable
26
GASKET,POINT CAP
14050-006
$26.81
27
COVER,BREAKER POINT
14027-023-80
$180.27
28
GASKET,CLUTCH
14046-024
$46.50
29
COVER,CLUTCH
14032-121
Unavailable
30
SCREW PAN HEAD 6X25
220B0625
$2.60
31
GAUGE,OIL LEVEL
52015-004
$48.05
32
OIL SEAL,SC22325
92049-001
$8.86
33
GASKET,KICK COVER
14046-025
$10.96
34
COVER,KICKSTARTER,
14032-075-21
Unavailable
35
WASHER PLAIN 6MM
411B0600
$2.84
