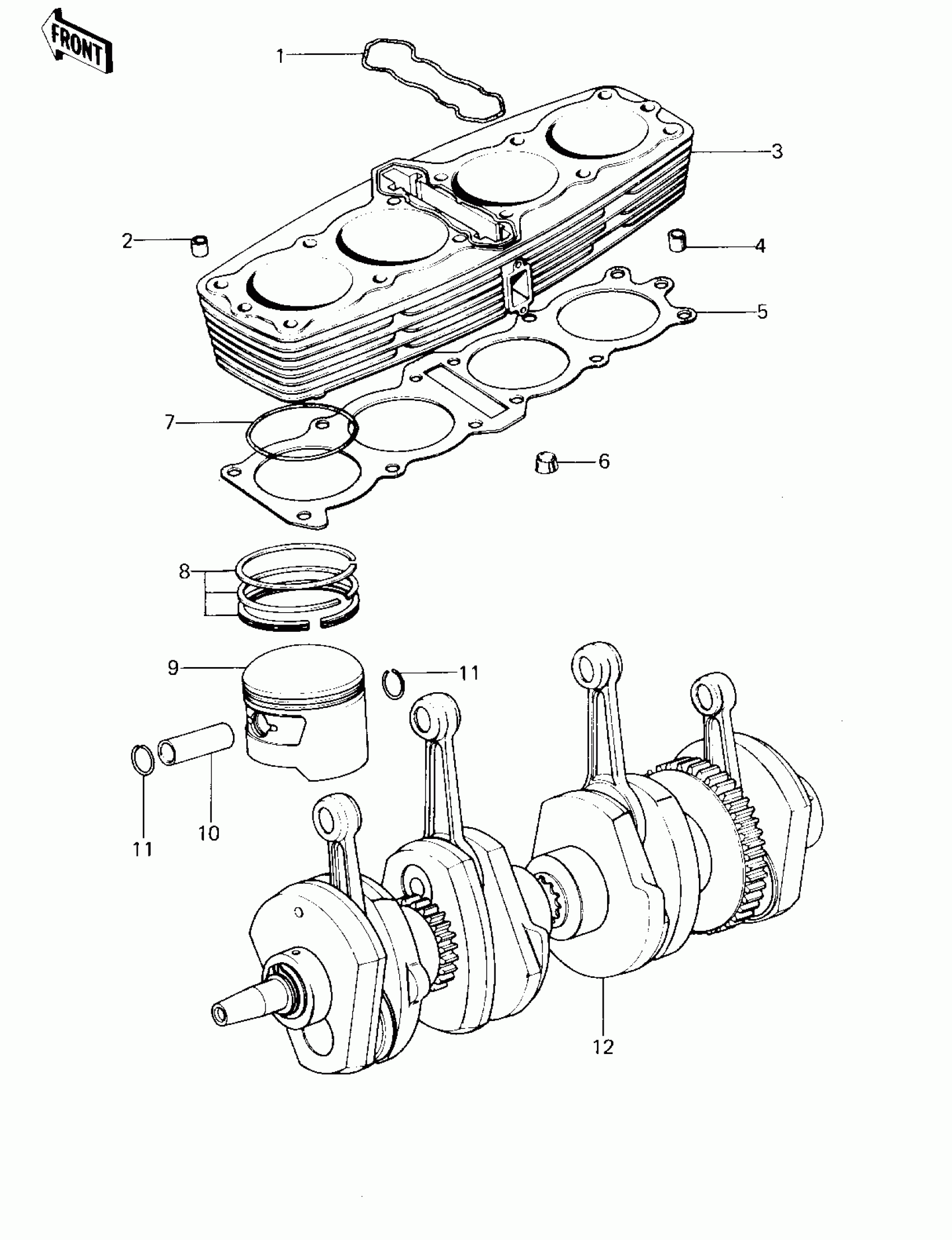

Kawasaki Z1R CYLINDER/PISTONS/CRANKSHAFT ('78 D1) Diagram

#

Description
Price

1

GASKET,CYLINDER RUBE

92055-062

$153.96

2

PIN,DOWEL,10X14

92043-1037

$0.74

3

CYLINDER,FLAT BLACK

11005-1009-21

Unavailable

4

PIN,11X14X12.3

92043-1266

$1.08

5

GASKET,CYLINDER BASE

11009-030

Unavailable

6

RUBBER PLUG,CYLINDER

92074-030

Unavailable

7

"O" RING,73MM

92055-054

$21.81

8

RING SET,STD

13008-5012

$151.39

8

RING SET,0.020"O/S

13025-5007

Unavailable

8

RING SET,0.040"O/S

13024-5008

Unavailable

9

PISTON,S.T.D

13001-1005

Unavailable

9

PISTON,0.020 O/S

13029-1003

Unavailable

9

PISTON,0.040"0/S

13027-1003

Unavailable

10

PIN-PISTON

13002-022

$58.36

11

CIRCLIP,PISTON PIN

92036-021

$0.49

12

CRANKSHAFT ASSY

13031-1006

Unavailable
