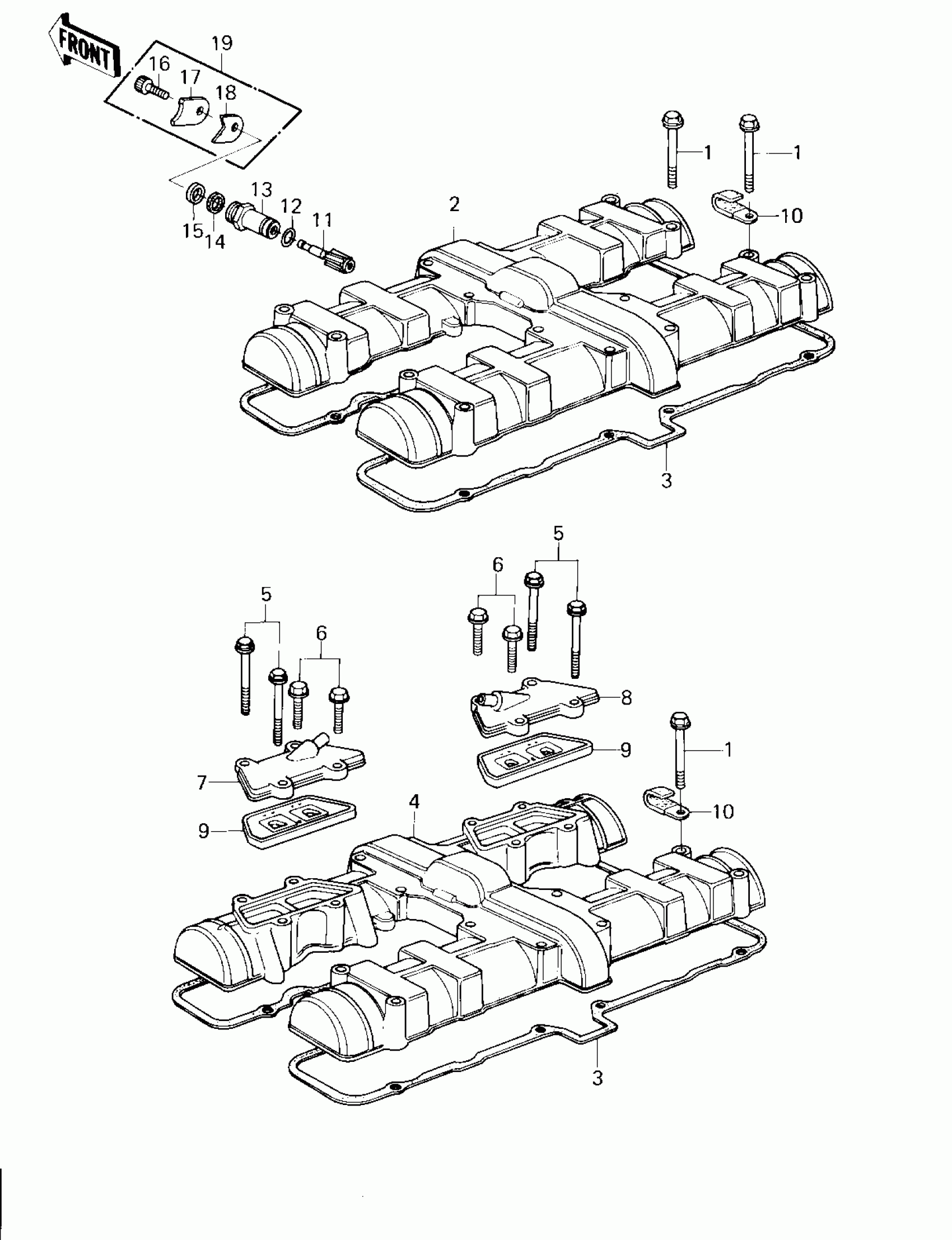

Kawasaki Z1R CYLINDER HEAD COVER ('80 D3) Diagram

#

Description
Price

1

BOLT,HEX HEAD,6X45

92001-1160

$6.03

3

GASKET,CYL HEAD COVE

11009-1050

Unavailable

4

COVER,CYLINDER HEAD

14025-1118

Unavailable

5

BOLT,HEX HEAD,6X66

92001-1161

Unavailable

6

BOLT,HEX HEAD,6X20

92001-1162

$3.31

7

CAP ASSY,L.H

14075-5004

$46.78

8

CAP ASSY,R.H

14075-5003

$36.95

9

VALVE-ASSY-REED

12021-1003

$77.18

10

CLAMP,WIRING HARNESS

21126-008

$3.75

11

GEAR,TACHOMETER,10T

13223-011

Unavailable

12

RING-O,10MM

92055-1149

$5.21

13

GUIDE,TACHOMETER GEAR

92087-010

$22.76

14

SEAL-OIL

92050-075

$9.03

15

GASKET,TACHOMETER GEAR

92065-103

$3.24

16

BOLT-SOCKET,6X14

120P0614

Unavailable

17

HOLDER,TACHOMETR,3.2T

13091-1009

$3.39

18

HOLDER,TACHOMETR,3.2T

13091-1009

$3.39

19

HOLDER SET,TACHOMETER

13091-5001

Unavailable
