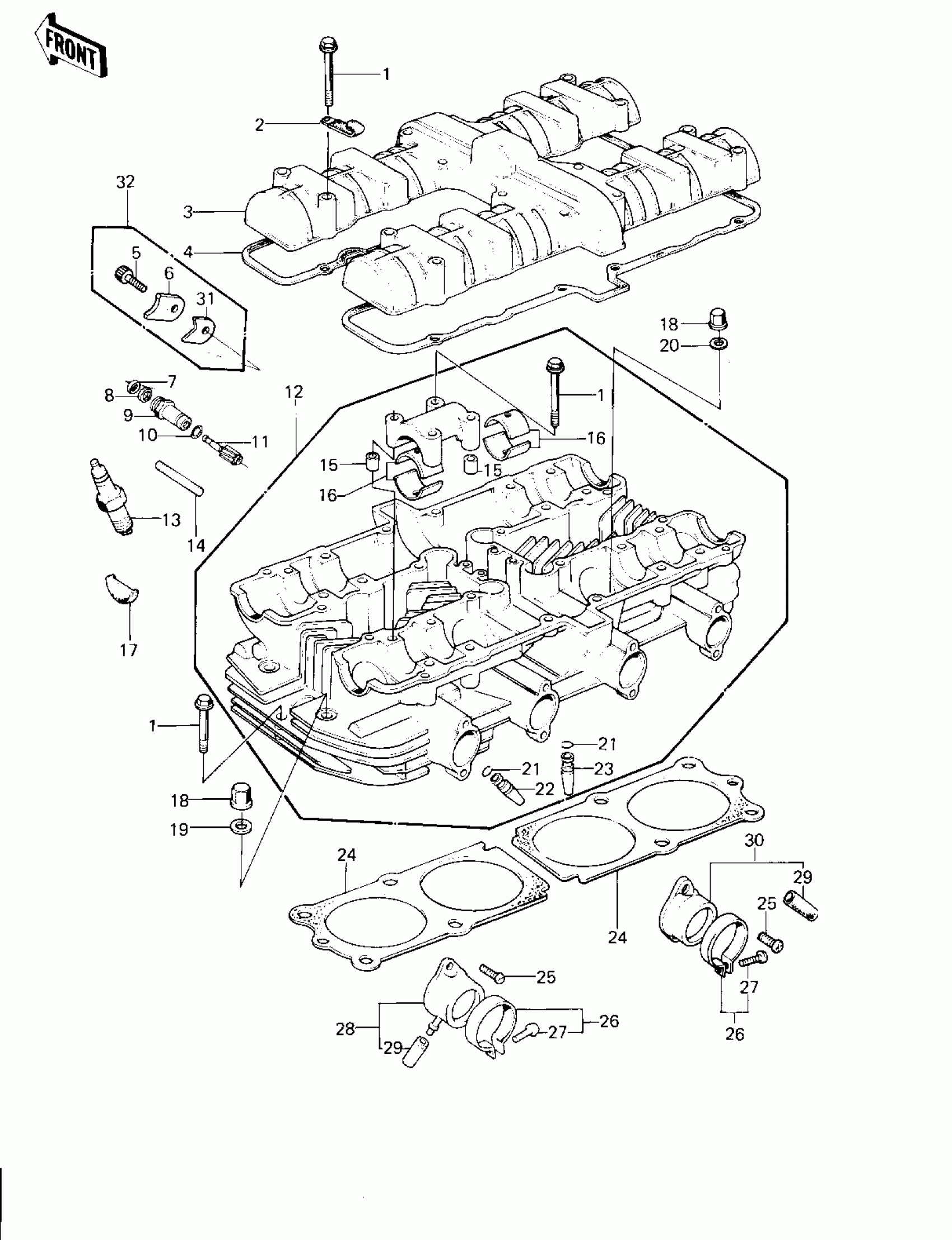

Kawasaki Z1R CYLINDER HEAD/COVER ('78 D1) Diagram

#

Description
Price

1

BOLT,FLANGED,6X45

92003-092

$7.58

2

CLAMP,WIRING HARNESS

21126-008

$4.73

3

COVER,CYLINDER HEAD

14025-1119

Unavailable

4

GASKET,CYL HEAD COVE

11023-006

Unavailable

5

BOLT-SOCKET,6X14

120P0614

$3.82

6

HOLDER,TACHOMETER2.3T

13091-1008

$4.26

7

GASKET,TACHOMETER GEAR

92065-103

$4.07

8

SEAL-OIL

92050-075

$11.39

9

GUIDE,TACHOMETER GEAR

92087-010

$24.19

10

RING-O,10MM

92055-096

$6.57

11

GEAR,TACHOMETER,10T

13223-011

Unavailable

12

CYLINDER HEAD,F.BLK

11002-1011-21

Unavailable

13

SPARK PLUG B8ES

B8ES

$3.62

14

STUD,8X30

92004-1069

$7.51

15

PIN,DOWEL,6.3X8X14

92042-007

$5.70

16

BUSHING,CAMSHAFT

13034-030

$22.16

17

PLUG,CAM SHAFT

92066-017

Unavailable

18

NUT,FLANGED CAP,10MM

92015-076

$13.08

19

WASHER,PLAIN,10MM

92022-215

$9.64

20

WASHER-PLAIN,10MM

411B1000

$0.93

21

RING-SNAP,VALVE GUIDE

92036-023

$0.48

22

GUIDE-VALVE,INTAKE

12013-009

$27.29

23

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

24

GASKET,CYLINDER HEAD

11004-076

Unavailable

25

SCREW PAN HEAD 6X18

220B0618

$3.67

26

CLAMP,HOLDER

92037-077

$12.00

27

SCREW,PAN HEAD

92011-037

Unavailable

28

HOLDER,CARBURETOR,L.

16065-029

$100.50

29

PLUG,12X25

92068-006

$4.26

30

HOLDER-R.H CARBRETOR

16065-028

$100.50

31

HOLDER,TACHOMETR,3.2T

13091-1009

$4.26

32

HOLDER SET,TACHOMETER

13091-5001

Unavailable
