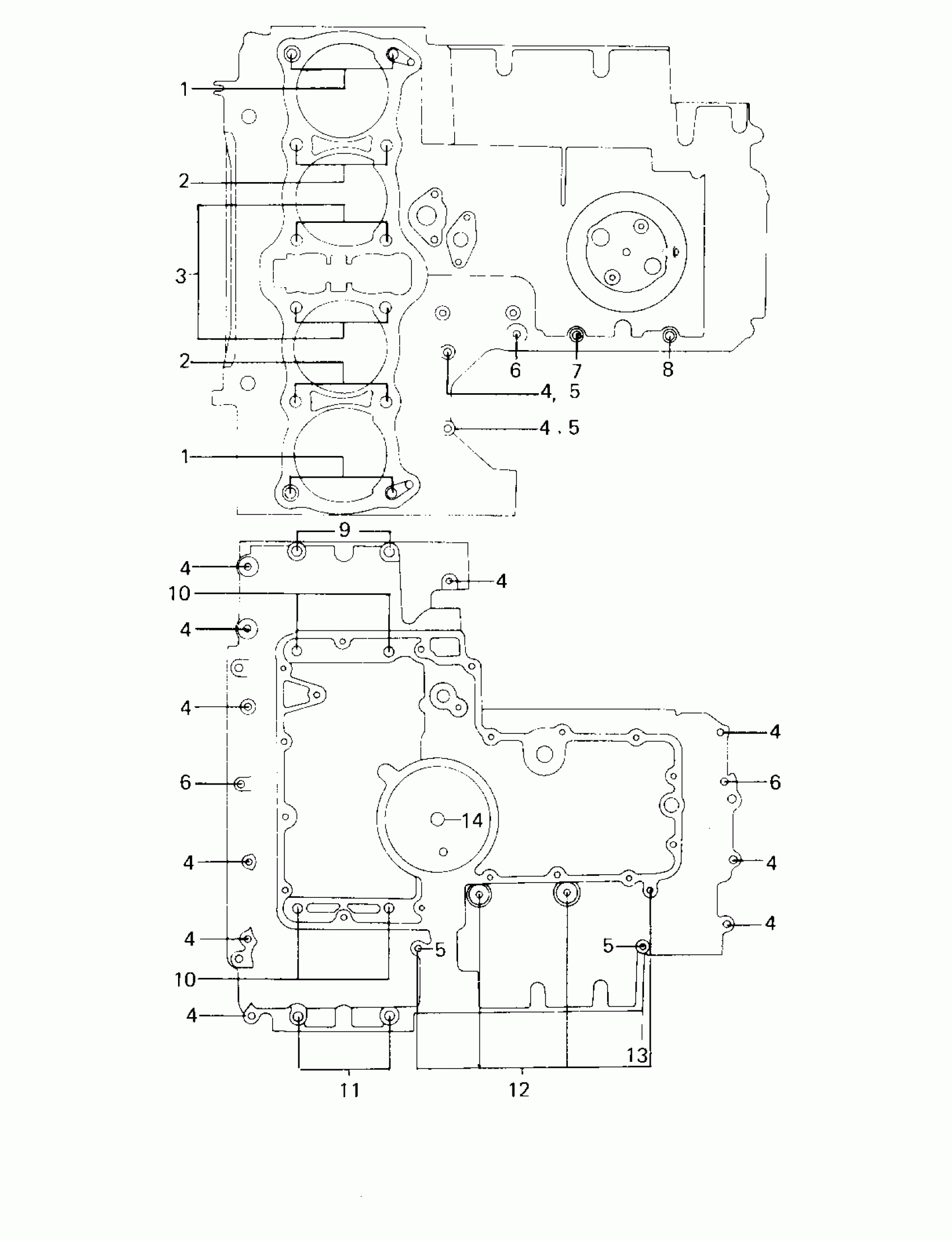

Kawasaki Z1R CRANKCASE BOLT & STUD PATTERN ('80 D3) Diagram

#

Description
Price

1

STUD,10X158

92004-1003

$14.39

2

STUD,10X133

92004-1004

$15.71

3

STUD,10X167

92004-1002

$14.39

4

BOLT,HEX HEAD,6X41

92003-109

Unavailable

5

CLAMP,WIRING HARNESS

21126-008

$3.60

6

BOLT,HEX HEAD,6X54

92003-110

$4.42

7

BOLT,HEX HEAD,6X99

92003-111

$3.32

8

BOLT,HEX HEAD,6X116

92003-113

$4.39

9

BOLT-FLANGED,8X95

130P0895

Unavailable

10

BOLT,HEX HEAD,8X72

92003-107

Unavailable

11

BOLT,HEX HEAD,8X81

92003-108

$5.81

12

BOLT-FLANGED,6X95

130G0695

Unavailable

13

BOLT-FLANGED,6X70

130G0670

Unavailable

14

RING-O,OD=18

92055-048

$3.66
