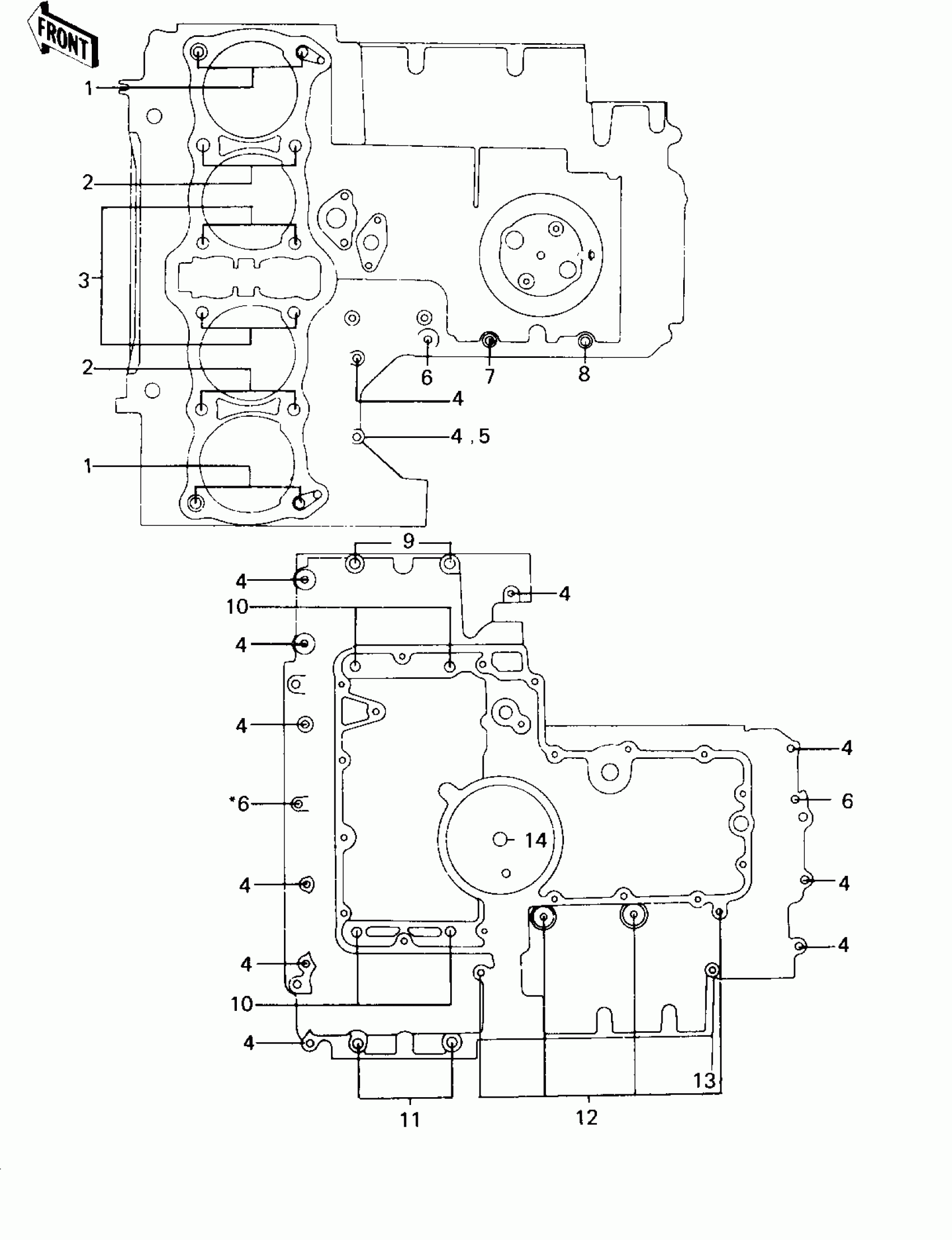

Kawasaki Z1R CRANKCASE BOLT & STUD PATTERN ('78 D1) Diagram

#

Description

Price

1

STUD,10X158

92004-1003

$15.20

2

STUD,10X133

92004-1004

$15.96

3

STUD,10X167

92004-1002

$15.20

4

BOLT,6X43

92002-1881

$7.24

5

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

6

BOLT,HEX HEAD,6X54

92003-110

$4.99

7

BOLT,HEX HEAD,6X99

92003-111

$3.88

8

BOLT,HEX HEAD,6X116

92003-113

$5.03

9

BOLT-FLANGED,8X95

130P0895

$10.59

10

BOLT,HEX HEAD,8X72

92003-107

Unavailable

11

BOLT,HEX HEAD,8X81

92003-108

$6.69

12

BOLT-FLANGED,6X95

130G0695

$5.21

13

BOLT-FLANGED,6X70

130G0670

$4.28

14

RING-O,OD=18

92055-048

$4.80
