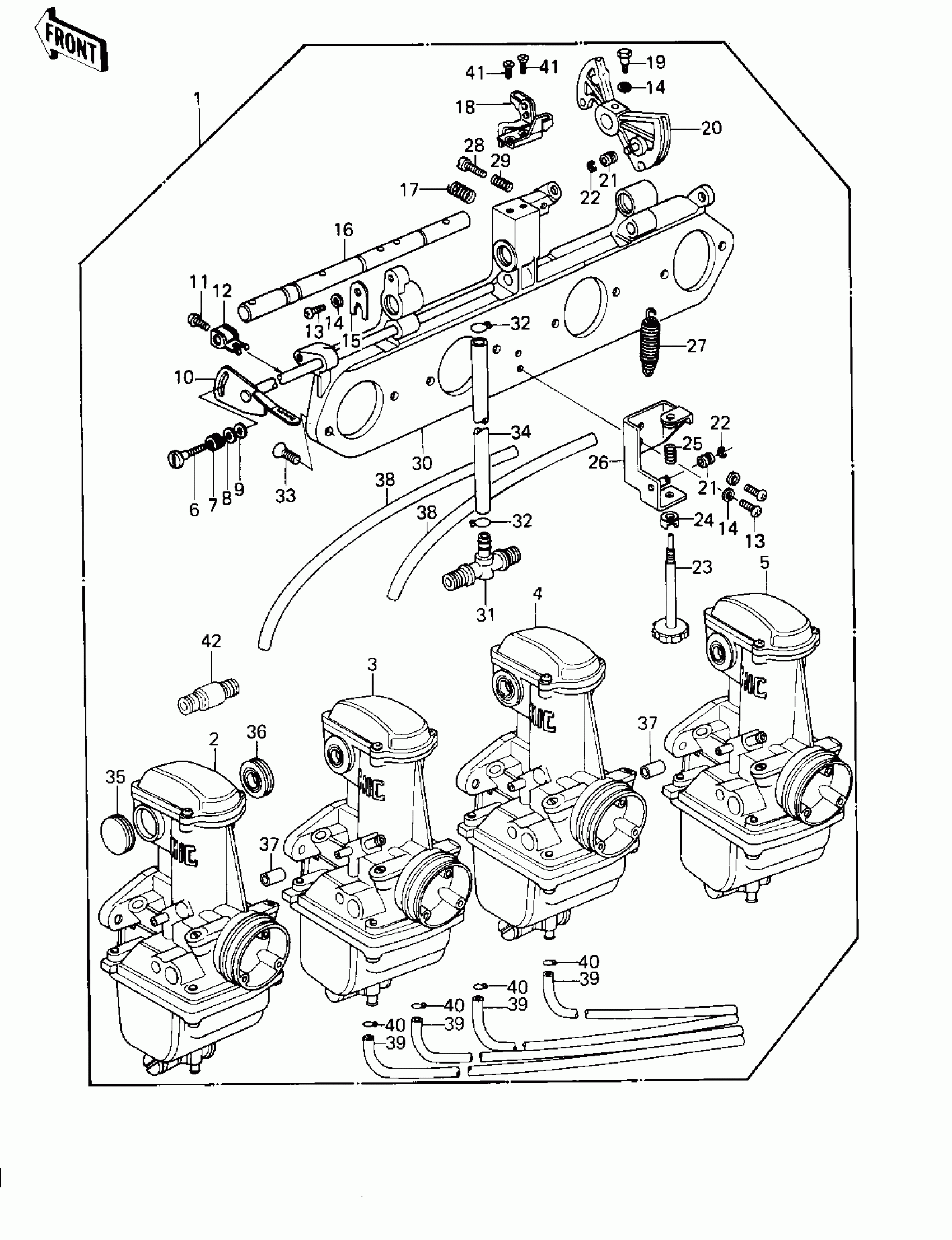

Kawasaki Z1R CARBURETOR ASSY ('78 D1) Diagram

#

Description
Price

1

CARBURETOR ASSY

16001-1040

$1,249.25

2

CARBURETOR,L.H.OUTSI

16001-1051

$492.59

3

CARBURETOR,L.H.INSID

16001-1052

$492.59

4

CARBURETOR,R.H INSID

16001-1053

$492.59

5

CARBURETOR,R.H.OUTSI

16001-1054

$492.59

6

SCREW

16046-005

Unavailable

7

SPRING,F

16040-009

Unavailable

8

WASHER PLAIN 5MM

410B0500

$0.46

9

WASHER,PLAIN,NYLON

16039-019

Unavailable

10

SHAFT,STARTER PLUNGE

16041-021

$54.54

11

SCREW,PAN HEAD,5X7

16046-007

Unavailable

12

LEVER,STARTER PLUNGE

13168-1026

Unavailable

13

SCREW-PAN-CROS

220B0514

$4.04

14

WASHER SPRING 5MM

461F0500

$0.69

15

PLATE,SHAFT STOPPER

16055-012

Unavailable

16

SHAFT,CARB CONNECTIO

16041-017

Unavailable

17

SPRING,CABLE PULLY

16040-022

Unavailable

18

BRACKET,THROTTLE CAB

16077-017

$59.26

19

BOLT,HEX HEAD,5X14

16067-006

Unavailable

20

PULLY,THROTTLE CABLE

13168-1024

Unavailable

21

RING

16073-016

Unavailable

22

CIRCLIP 3MM

482K3000

$1.78

23

SCREW,THROTTLE STOP

16021-1006

Unavailable

24

BUSHING

92028-1071

Unavailable

25

SPRING,THROTTLE STOP

16022-017

Unavailable

26

BRACKET,THROTTLE CAB

11034-1185

Unavailable

27

SPRING,THROTTLE PULL

92081-1028

Unavailable

28

ADJUSTER,THROTTLE LEV

16021-020

Unavailable

29

SPRING,THROTTLE ADJST

16022-010

Unavailable

30

HOLDER,CARB MOUNTING

16065-1009

$131.59

31

FITTING

92005-1010

$28.80

32

CLAMP,CARB CONECT HOS

92037-056

$6.60

33

SCREW,6X14

16033-029

Unavailable

34

TUBE,5.8X10.8X180

92059-1443

$35.06

35

CAP,RUBBER

16039-042

Unavailable

36

GROMMET,CARBURETOR

92071-104

Unavailable

37

HOSE,6X11.5X16

92059-141

$17.97

38

HOSE,AIR VENT,5X8X55

92059-1028

Unavailable

39

HOSE,FUEL OVERFLOW

92059-147

Unavailable

40

CLAMP,OVERFLOW HOSE

92037-173

Unavailable

41

SCREW CNTSNK HD 5X10

221B0510A

$3.67

42

FITTING

92005-1009

Unavailable
