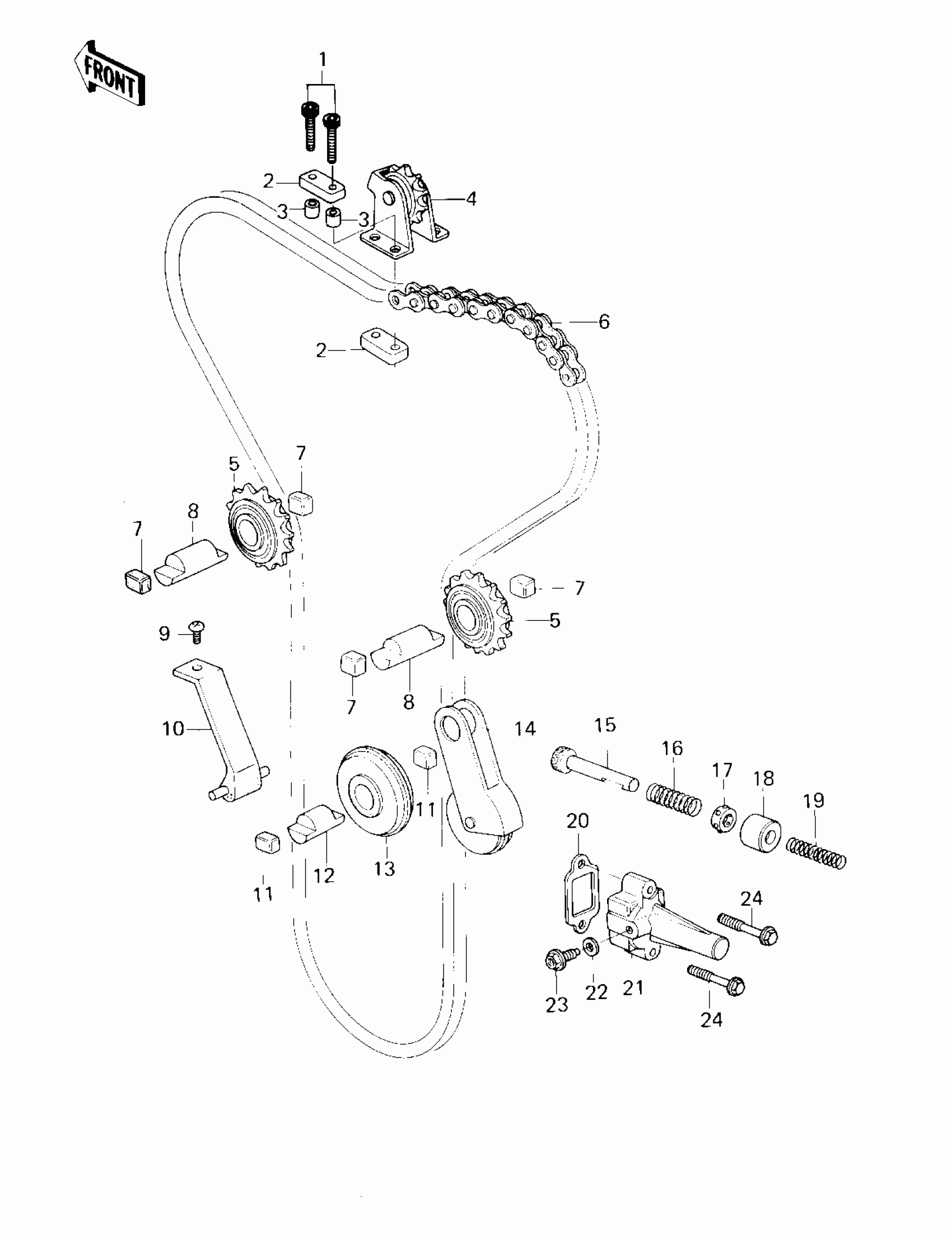

Kawasaki Z1R CAM CHAIN/TENSIONER ('80 D3) Diagram

#

Description
Price

1

BOLT,ALLEN,6X32

120Q0632

Unavailable

2

DAMPER RUBBER

92075-289

Unavailable

3

COLLAR,6.2X8.1X15

92027-1079

$3.16

4

IDLER ASSY,CAM SHAFT

12053-1035

$330.21

5

IDLER ASSY

12057-002

$311.00

6

CHAIN,CAM,124LINKS

92057-1026

$108.46

7

DAMPER,IDLER SHAFT

92075-232

$4.53

8

SHAFT-IDLER,GUIDE ROLLAR

12052-005

$30.25

9

SCREW PAN HEAD 6X10

220B0610

Unavailable

10

GUIDE,CAM CHAIN

12053-019

$44.61

11

DAMPER RUBBER

92075-123

$7.55

12

SHAFT-IDLER,CAM CHAIN GUIDE

12052-003

$11.69

13

ROLLER,CAM CHAIN GUI

12055-002

$49.44

14

TENSIONER ASSY,CHAIN

12048-001

Unavailable

15

ROD ASSY,PUSH

13116-1008

Unavailable

16

SPRING,TENSIONER

92081-1068

Unavailable

17

RETAINER,TENSIONER

14020-1002

$16.44

18

COLLAR, TENSIONER

92027-1102

$41.67

19

SPRING

92081-146

Unavailable

20

GASKET,TENSIONER

11009-1980

$4.39

21

TENSIONER KIT

99996-1021

Unavailable

22

WASHER OIL PUMP BANJO

92022-077

$3.13

23

BOLT,TENSIONER ADJUST

92001-1155

$4.68

24

BOLT-FLANGED,6X30

130G0630

Unavailable
