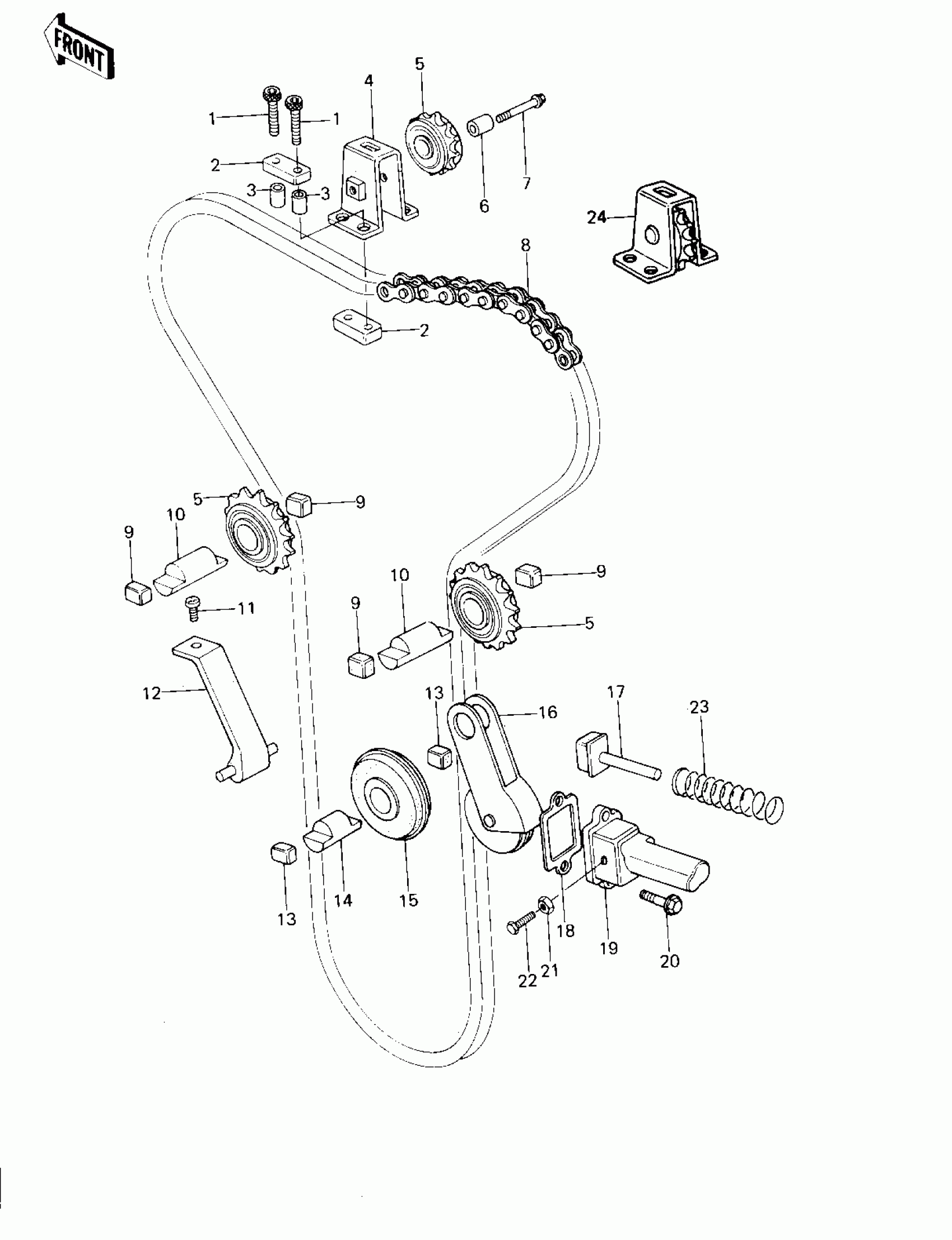

Kawasaki Z1R CAM CHAIN/TENSIONER ('78 D1) Diagram
#
Description
Price
1
BOLT,ALLEN,6X32
120Q0632
Unavailable
2
DAMPER RUBBER
92075-289
Unavailable
3
COLLAR,6.2X8.1X15
92027-1079
$3.96
4
IDLER ASSY,CAM CHAIN
12053-1016
$323.46
5
IDLER ASSY
12057-002
$323.46
5
IDLER ASSY
12057-002
$323.46
6
COLLAR,IDLER
92027-261
Unavailable
7
BOLT,FLANGED,6X25
130G0625
$1.17
8
CHAIN,CAM SHAFT
21070-003
$479.96
9
DAMPER,IDLER SHAFT
92075-232
$5.72
10
SHAFT-IDLER,GUIDE ROLLAR
12052-005
$32.94
11
SCREW PAN HEAD 6X10
220B0610
$3.14
12
GUIDE,CAM CHAIN
12053-019
$48.05
13
DAMPER RUBBER
92075-123
$9.51
14
SHAFT-IDLER,CAM CHAIN GUIDE
12052-003
$14.37
15
ROLLER,CAM CHAIN GUI
12055-002
$48.50
16
TENSIONER ASSY,CHAIN
12048-001
$142.80
17
PUSH ROD,CAM CHAIN
12054-001
Unavailable
18
GASKET,TENSIONER
11009-1980
$5.54
19
HOLDER,TENSIONER
12049-1003
Unavailable
20
BOLT-FLANGED,6X30
130G0630
$1.42
21
NUT 6MM
311B0600
$0.93
22
BOLT,TENSIONER ADJUS
92003-093
Unavailable
23
SPRING,TENSTIONER
92081-107
$16.71
24
IDLER ASSY,CAM CHAIN
12053-1016
$323.46
