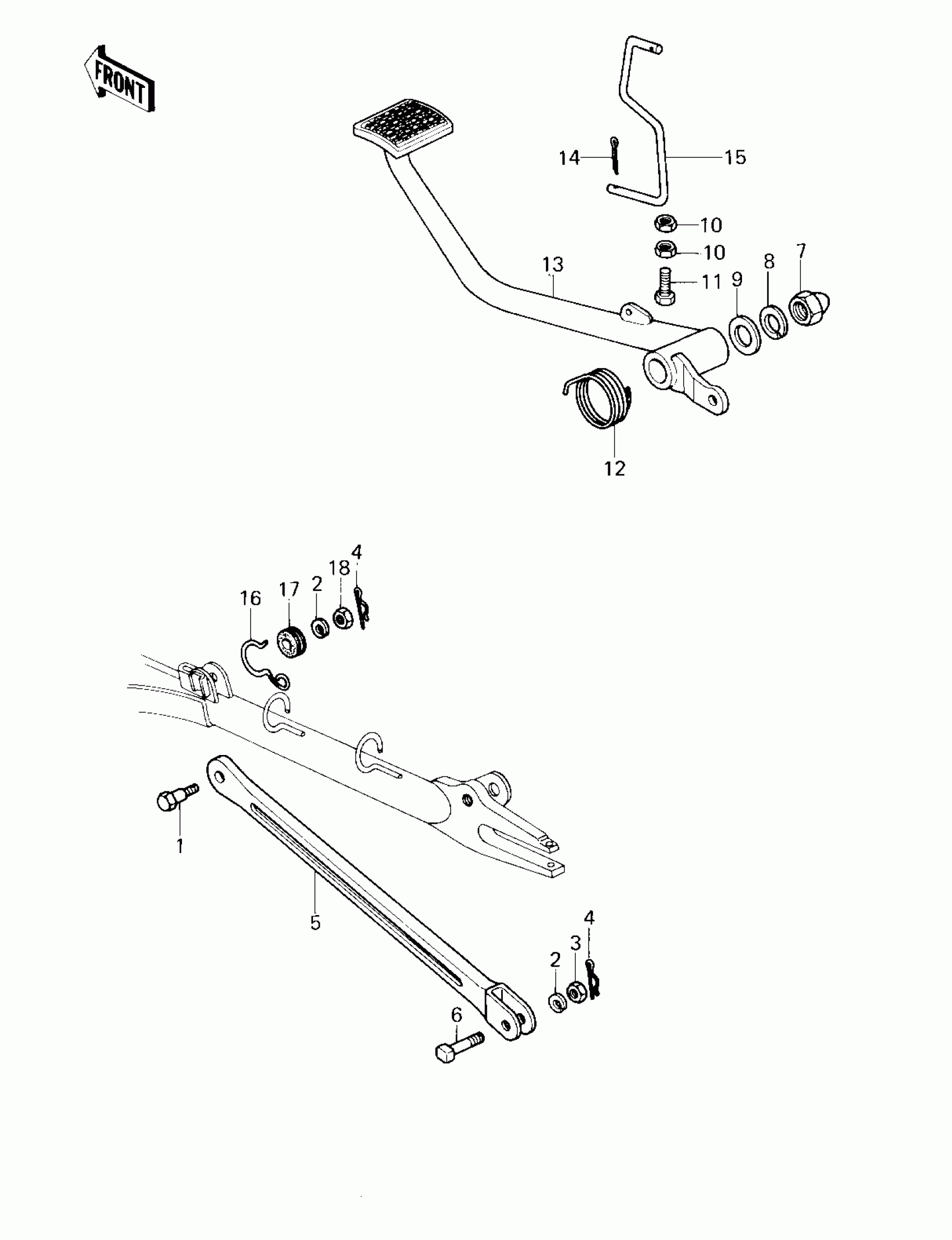

Kawasaki Z1R BRAKE PEDAL/TORQUE LINK ('80 D3) Diagram

#

Description

Price

1

BOLT,HEX HEAD,10X39

92003-218

Unavailable

2

WASHER SPRING 10MM

461F1000

Unavailable

3

NUT-HEX-FINE,10MM

314B1000

Unavailable

4

PIN-SNAP,8MM

554A0800

Unavailable

5

TORQUE LINK,REAR HUB

43007-049

$52.54

6

BOLT,10X47

92001-1145

Unavailable

7

NUT,CAP AND LOCK,8MM

92019-013

$11.31

8

WASHER SPRING 8MM

461F0800

Unavailable

9

WASHER,8.5X20X1.6

92022-1561

$3.29

10

NUT 6MM

311B0600

Unavailable

11

BOLT-UPSET,6X20

112G0620

Unavailable

12

SPRING,BRAKE PEDAL

92081-1046

Unavailable

13

PEDAL,BRAKE

43001-1040

Unavailable

14

PIN COTTER 1.6X10

550D1610

Unavailable

15

HOOK,BRK LAMP SW SPR

27012-010

Unavailable

16

CLAMP,BRAKE HOSE

92037-1061

Unavailable

17

GROMMET,HOSE CLAMP

43064-007

$4.18

18

NUT-HEX-FINE,10MM

315B1000

Unavailable
