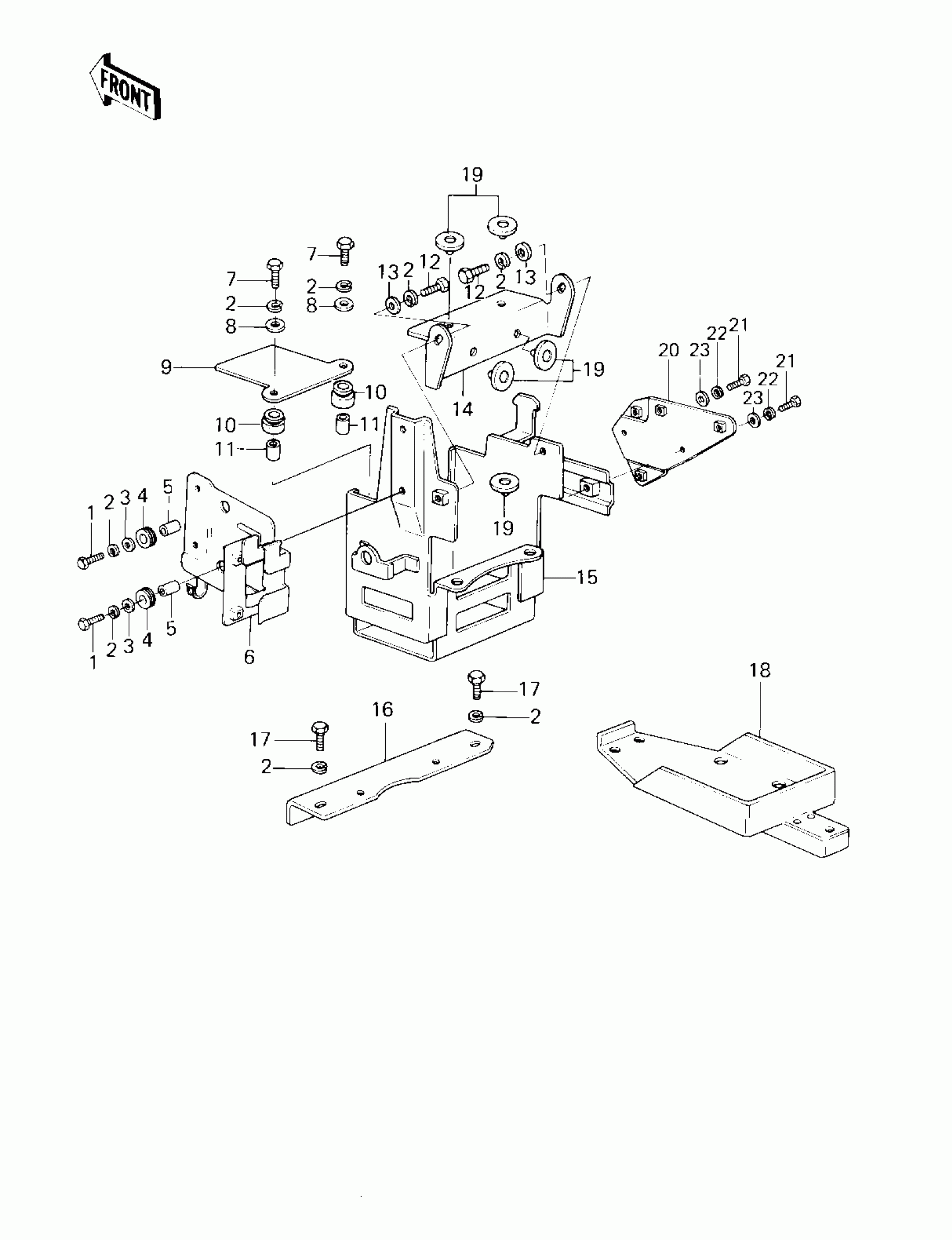

Kawasaki Z1R BATTERY CASE/ELECTRO BRACKET ('80 D3) Diagram

#

Description
Price

1

BOLT-UPSET,6X20

112G0620

Unavailable

2

WASHER SPRING 6MM

461F0600

Unavailable

3

WASHER,6.5X20X1.6

92022-125

$1.08

4

DAMPER RUBBER

92075-149

Unavailable

5

COLLAR

92027-165

$5.42

6

BRACKET,BASE

11034-1261

Unavailable

7

BOLT-UPSET

112G0630

Unavailable

8

WASHER,6.5X16X2

92022-1565

$2.99

9

STAY,AIR CLEANER

32105-007

$14.95

10

DAMPER RUBBER,BTT CA

92075-146

$3.14

11

COLLAR,6.8X10X14.5

92027-156

$3.81

12

BOLT-UPSET,6X12

112G0612

Unavailable

13

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

14

BAND,BATTERY

32100-100

$24.78

15

CASE,BATTERY

32097-1007

$97.39

16

PLATE,BATTERY CASE

13169-1077

Unavailable

17

BOLT-UPSET,6X16

112G0616

Unavailable

18

CASE,TOOL

32098-1001

$27.63

19

DAMPER,RUBBER

92075-078

$3.35

20

BRACKET,BASE,R.H

11034-1732

Unavailable

21

BOLT-UPSET,6X12

112G0612

Unavailable

22

WASHER SPRING 6MM

461F0600

Unavailable

23

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03
