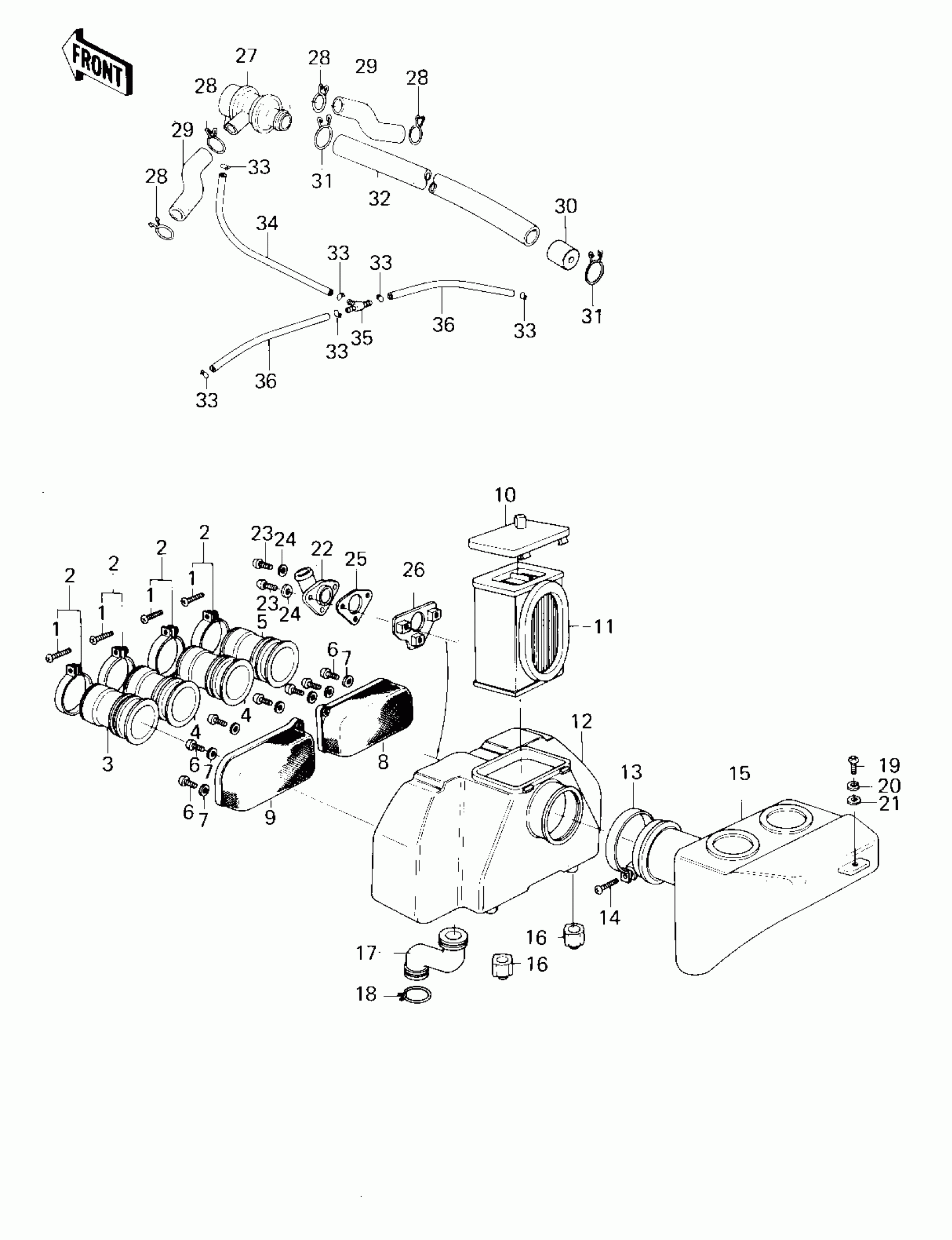

Kawasaki Z1R AIR CLEANER ('80 D3) Diagram

#

Description
Price

1

SCREW,PAN HEAD

92011-037

Unavailable

2

CLAMP-INLET PIPE

92037-061

Unavailable

3

DUCT,AIR CLEANER,#1

14073-1022

$47.40

4

DUCT,AIR CLEANER,#2,

14073-1023

$47.40

5

DUCT,AIR CLEANER,#4

14073-1024

$47.40

6

SCREW-PAN-CROS

220C0412

$1.00

7

WASHER,PLAIN,4M/M

92022-1041

$4.59

8

PLATE,CARBURETOR HOL

11040-003

Unavailable

9

PLATE,CARBURETOR HOL

11040-002

Unavailable

10

CAP,AIR CLEANER

11012-075

Unavailable

11

ELEMENT,AIR CLNR

11013-063

$40.69

12

BODY,AIR CLEANER

11011-1012

Unavailable

13

CLAMP

92037-106

$16.66

14

BOLT,5X50

92011-036

$2.58

15

SILENCER

39161-1001

$159.88

16

CAP,DRAIN

11012-1083

Unavailable

17

TUBE,DRAIN

92059-124

Unavailable

18

CLAMP BREATHER PIPE

92037-028

Unavailable

19

SCREW-PAN-CROS,6X16

220B0616

Unavailable

20

WASHER SPRING 6MM

461F0600

Unavailable

21

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

22

FITTING

92005-1007

$8.83

23

SCREW-PAN-CROS,6X16

220B0616

Unavailable

24

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

25

GASKET

11009-1054

Unavailable

26

HOLDER

13091-1020

Unavailable

27

VALVE,AIR SWITCH

16126-1014

$210.09

28

CLAMP,TUBE

92037-213

$3.29

29

TUBE,14X20

92059-1030

$5.69

30

COLLAR

92027-1186

$7.47

31

CLAMP,TUBE

92037-1076

$7.14

32

TUBE,19X25X260

92059-1031

Unavailable

33

CLAMP,TUBE

92037-072

$5.51

34

TUBE,VACUUM,LONG

92059-1162

$14.40

35

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

36

TUBE,VACUUM,LONG

92059-1162

$14.40
